CROSS

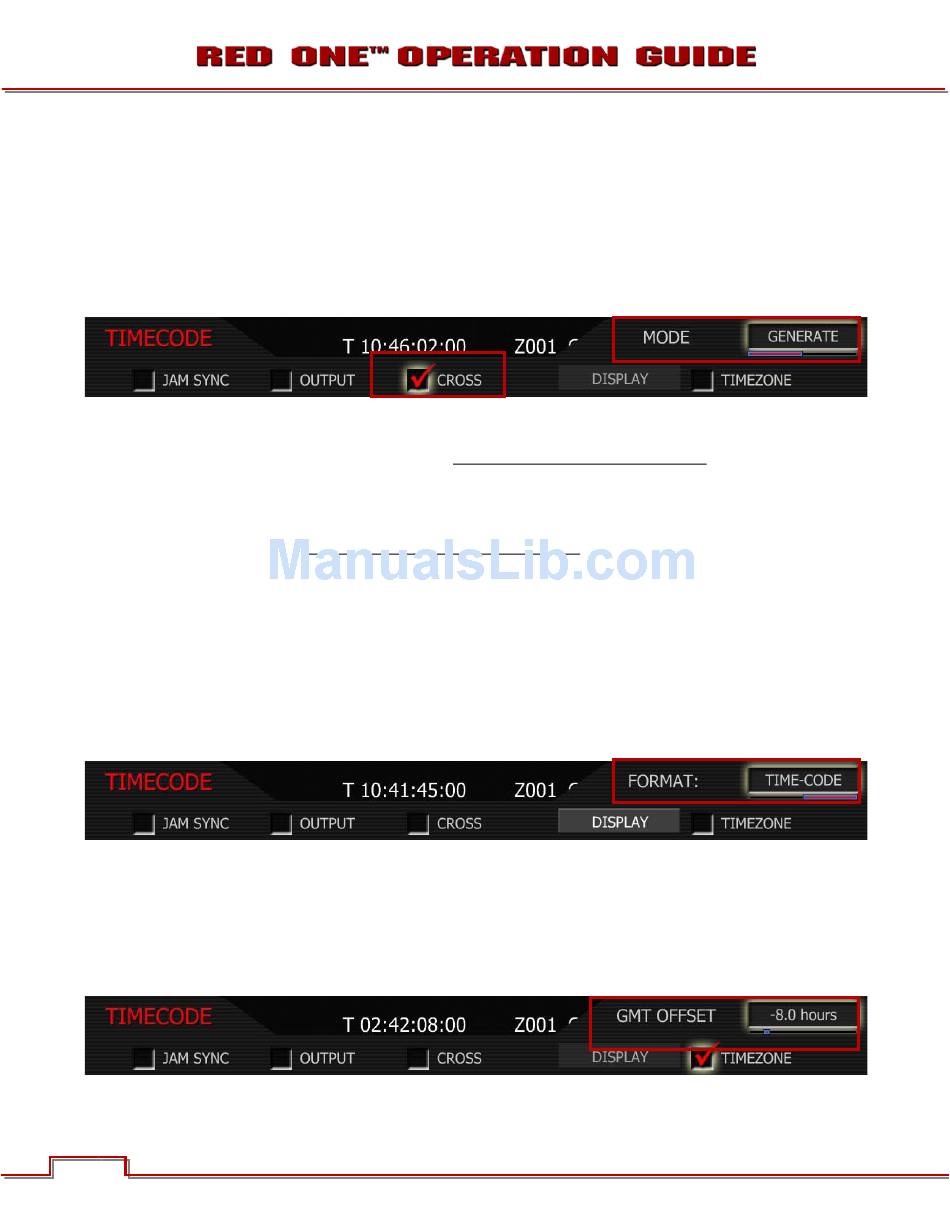

Cross allows user to select between Cross JAM and Cross GEN.
1. Push in or down on joystick to place checkmark in CROSS checkbox.
2. MODE box will highlight to allow you to choose between GENERATE or JAM.
3. Twist joystick to change the highlighted MODE box to the desired setting.
4. Move joystick left or right to select and exit.
CROSS JAM: Cross Jam activates 23.98 from 29.97 fps time code sync. The RED-ONE camera will ac-
cept a 29.97 fps time base external Time Code signal and generate a synchronized 23.98 Time Code sig-
nal for use with the camera's 23.98 fps recording. Normally used with OUTPUT off.
CROSS GENERATE: Cross Gen activates 29.97 from 23.98 fps time code sync. The RED-ONE camera
will generate a 23.98 Time Code signal for use with the camera's 23.98 fps recording, and also generates
a synchronized 29.97 fps Time Code signal for use by an external device, available as an output from the
5-pin timecode I/O connector. Normally used with JAM SYNC off.
DISPLAY
Display lets the operator select whether Edge Code or Time Code is displayed in the status displays. This
selection also determines which of the two recorded timecode tracks will be used in the QuickTime refer-
ence movies, and the primary timecode track in HD-SDI outputs.
1. To set display, select DISPLAY and press in or down on joystick.
2. Twist joystick to change the highlighted FORMAT box to either EDGE-CODE or TIME-CODE.
3. Move Joystick right or up to select and exit.
EDGE-CODE: If Edge Code is selected, "E" precedes the value shown in the status display.
TIME-CODE: If Time Code is selected, "T," precedes the value shown in the status display. Default set-
ting is Time Code.
TIMEZONE
Applies a time offset to the SET CLOCK value established for the camera.
1. Push in or down on joystick to place checkmark in TIMEZONE checkbox.
