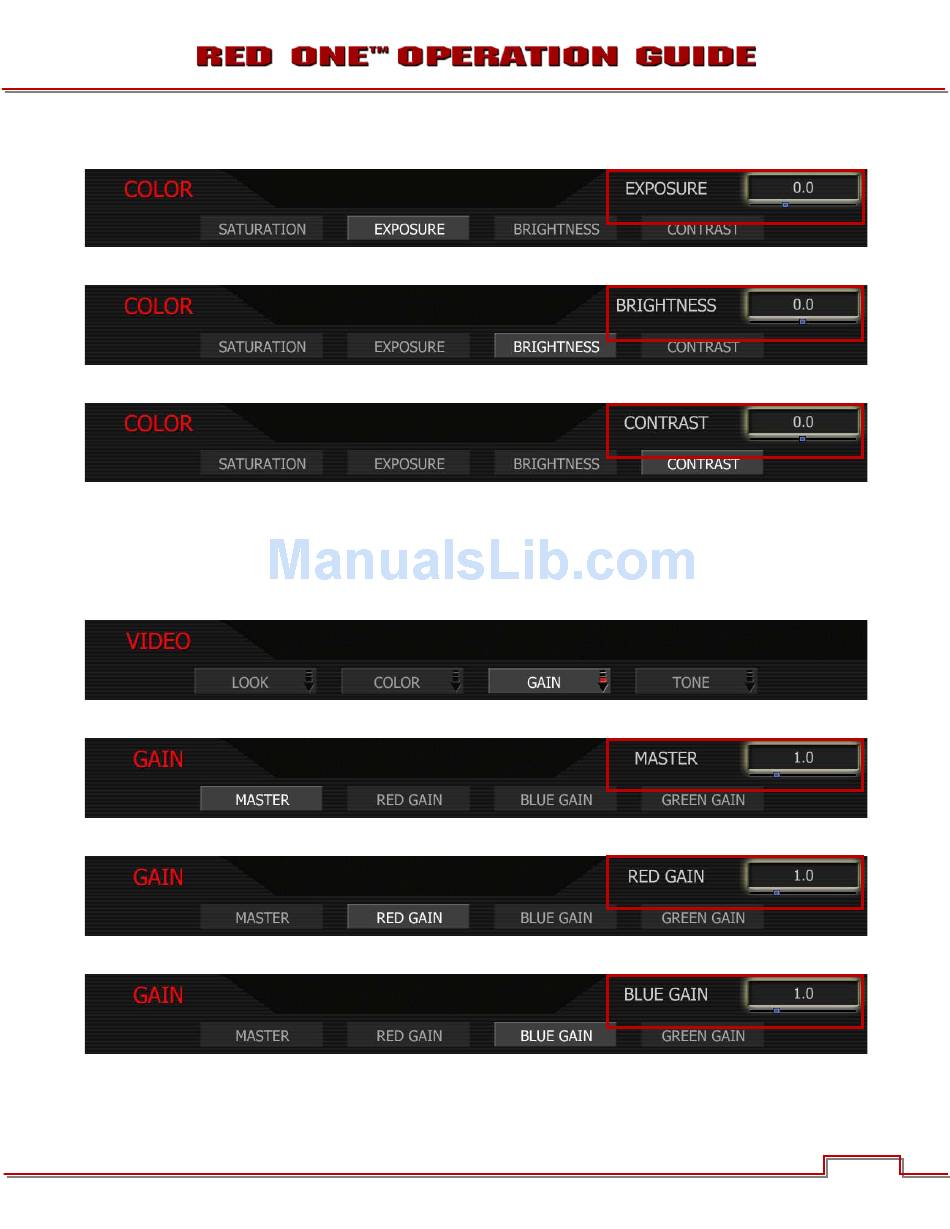

EXPOSURE: Adjusts exposure compensation. Available exposure range is – 2.0 to +4.0.
BRIGHTNESS: Adjusts brightness without crushing highlights. Available range is – 10 to + 10.
CONTRAST: Adjusts the overall contrast of the image. Range is -1.0 (flat) to +1.0 (max contrast)

GAIN

The Gain sub-menu selects various image processing parameters that may be applied to the monitor path
(MASTER, RED GAIN, BLUE GAIN and GREEN GAIN). They do not affect the actual REDCODE™ RAW
data being recorded. To adjust: Select the desired setting and twist joystick to change the highlighted
box to the desired setting.
MASTER: Adjusts the gain of RED, BLUE and GREEN equally. Range is 0.0 to +4.0.
RED GAIN: Adjusts the gain of the RED channel only. Range is 0.0 (no Red) to +4.0.
BLUE GAIN: Adjusts the gain of the BLUE channel only. Range is 0.0 (no Blue) to +4.0.
Build 20 v20.1.6
43
OCTOBER 19, 2009 ©2009 RED.COM INC.
