RED LCD DISPLAY

Two (2) round and two (2) triangular buttons are located on top of the RED™ LCD.
•
The two triangular buttons (A) in the center are used to increase or decrease backlight intensity.
•
Right button (B) switches display between Video plus Frame Guides and Menus, to Video plus Frame
Guides only.
•
Left button (C) is User Key 5 and can be programmed. Refer to
SET UP under SYSTEM MENU CONTROLS.

RED EVF DISPLAY

C
The RED™ EVF comprises the following components:
A. High-resolution color display: Provides a 1280 pixel x 848-pixel resolution progressive scan color im-
age equivalent to viewing a 17" reference color monitor from a distance of approximately 4 ft.
14 14
C
–

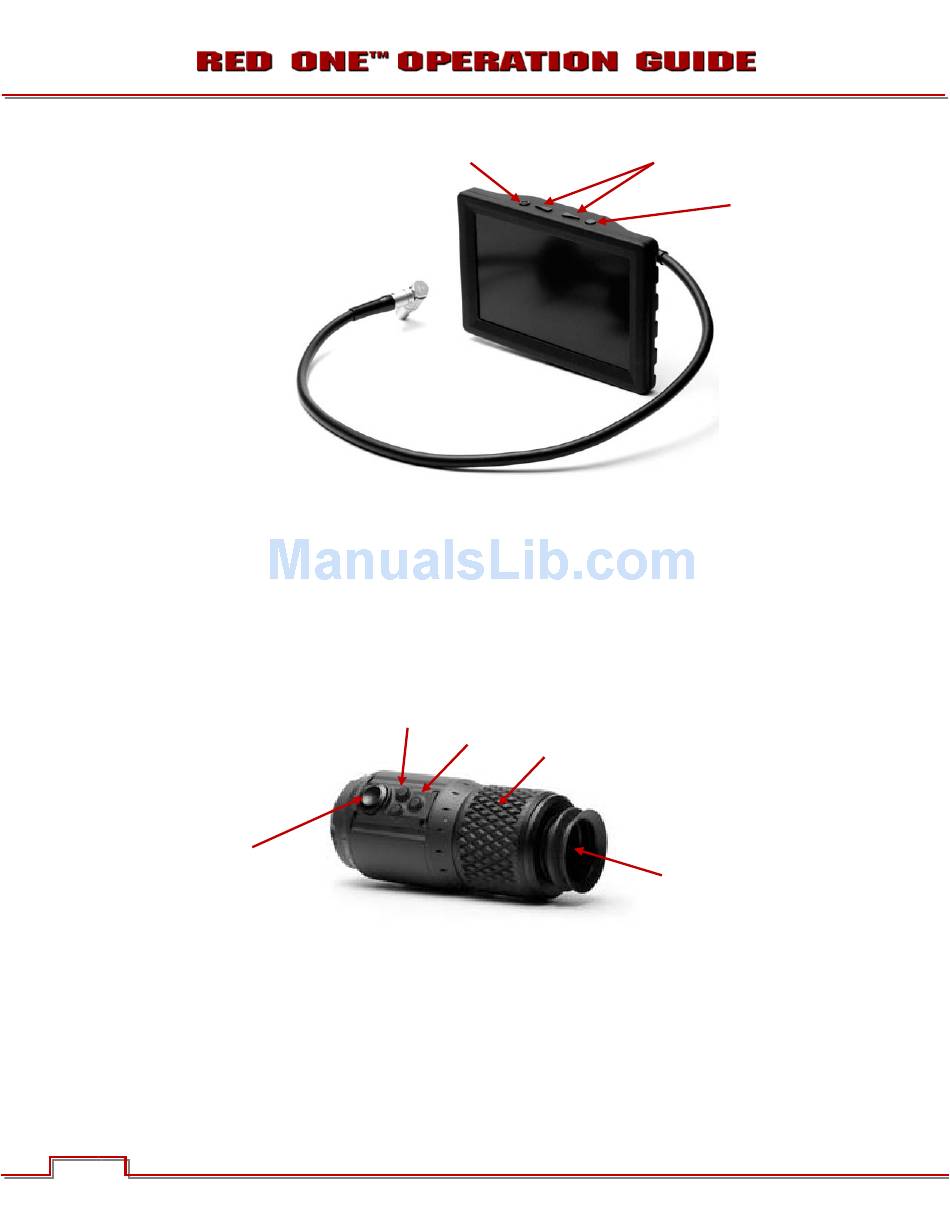

Figure 8 RED™ LCD
D
E
B
–
Figure 9 RED™ EVF
©2009 RED.COM INC.
A
B
KEY-MAP under PREFERENCES in
A
Build 20 v20.1.6
OCTOBER 19, 2009
