CONNECTING MEDIA

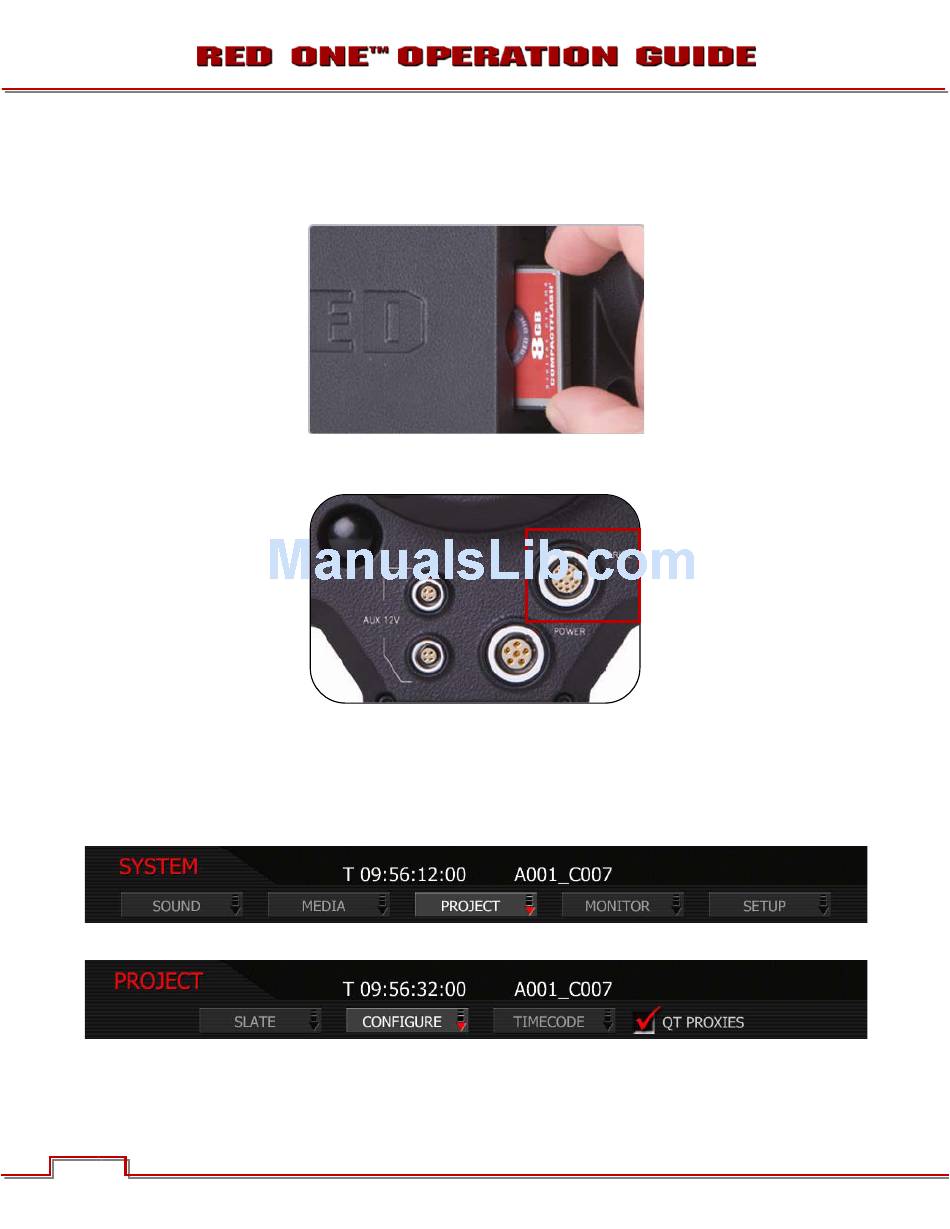

Insert the CF card with the manufacturer's label facing outward (away from camera body). Push the CF
firmly into the CF slot, but without using excessive force to prevent damage.
Or attach a RED-DRIVE® or RED-RAM® magazine to the
rear of the camera using the 16-pin e-SATA cable provided.
For additional information formatting media, refer to

PROJECT SETUP

1. Push the SYSTEM menu button.
2. Using the joystick, highlight PROJECT. Push joystick in or down to select PROJECT.
3. Using the joystick, highlight CONFIGURE. Push joystick in or down to select.
4. NEW PROJECT menu will be displayed.
26 26
DRIVE connector
APPENDIX B: MANAGING DIGITAL
©2009 RED.COM INC.
(e-SATA port) located on the
MEDIA.
