WAVEFORM: A color-coded waveform illustrates the exposure values using the full width of the lower
section of the camera display. As exposure reaches maximum, waveform color changes to yellow and
then red. At minimum exposure, the waveform color changes to light blue then dark blue. These colors
match those used in the False Color Meter.
RGB PARADE: A corresponding histogram illustrates the exposure distribution in the R, G and B chan-
nels using the full width of the lower section of the camera display.
FOCUS ASSIST/FOCUS OVERLAY: A full screen width red rectangular box will appear centered on the
center cursor of the image. The vertical position of this sample box can be adjusted by rotating the joys-
tick, and its height can be adjusted by moving the joystick left or right. Push the joystick to fix the sample
box. The average focus value of the pixels in the sample box are shown in a full width graph restricted to
the lower section of the camera display (Focus Assist) or overlaid in the lower section of the active video
(Focus Overlay).

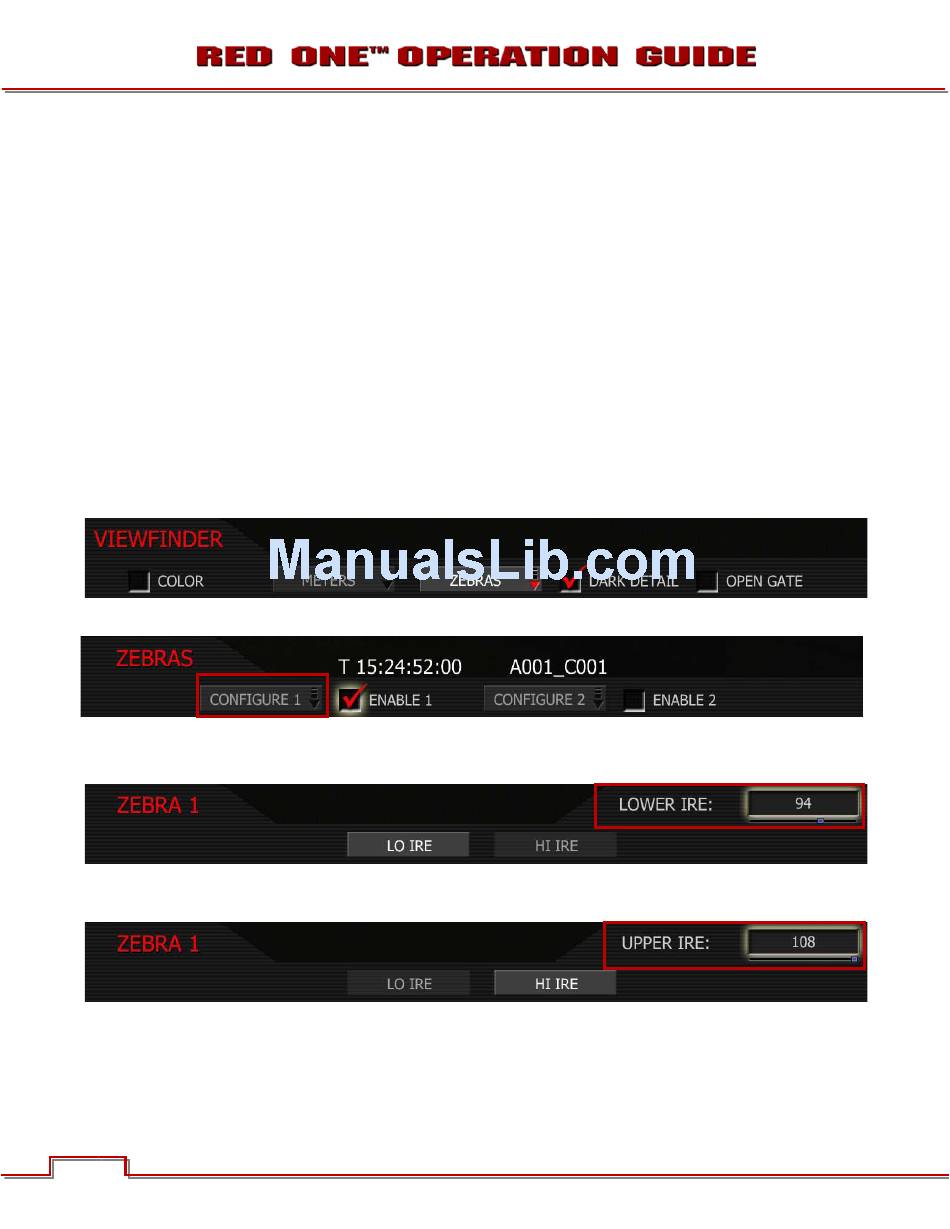

ZEBRAS

Zebras enable and adjust the upper and lower values for two independent Zebra indicators. One zebra
may be used for highlight exposure, and the other for mid tone or shadows. By default, Zebras Confi-
gure 1 is enabled and Configure 2 is disabled.
CONFIGURE 1: Takes you to ZEBRA 1 sub-menu. Choose between LOW IRE and HI IRE settings.
To adjust LO IRE: Select LO IRE and twist joystick to change the LOWER IRE: box to the desired setting
between 75 and 103 (default is 101).
To adjust HI IRE: Select HI IRE and twist joystick to change the UPPER IRE: box to the desired setting
between 93 and 108 (default is 108).
