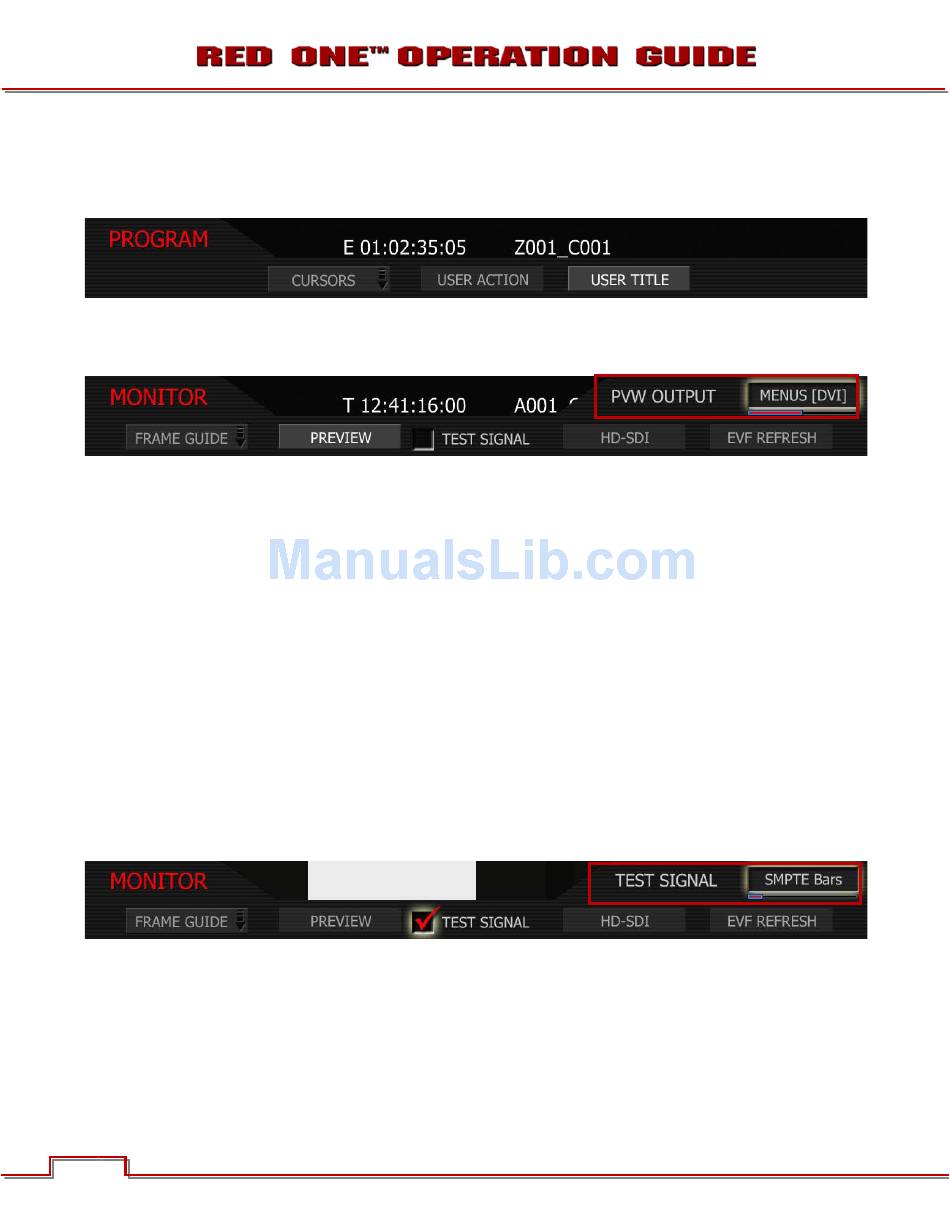

USER TITLE
Enables the user to program a custom Safe Title area. Operation is the same as USER ACTION. Refer to
the previous procedure for

PREVIEW

This sub-menu selects the operating mode of the HD Preview output.
If only one of either a RED™ EVF or RED™ LCD are present, the HD-SDI and HDMI outputs will support
Surround View, frame guides and safe action / title overlays, waveforms overlaid on a 1280 x 720 pixel
video signal. Both of these outputs include up to 4 channels of 24-bit 48KHz audio. The HDMI output is
compatible with HDMI equipped 720p compatible HDTV monitors.
As a user choice, the HDMI (but not the three HD-SDI outputs) can support a 1280 x 848 pixel output with
Surround View, frame guides and safe action / title overlays, waveforms, and camera status and operation
menus. This signal is compatible with most DVI equipped SXGA computer monitors, but is not compatible
with HDMI equipped HDTV displays.
If both a RED™ EVF and RED™ LCD are present, the HD-SDI and HDMI outputs will be forced to 1280 x
720 (with Surround View) irrespective of the Preview Output parameter setting.
NOTE: The video format of the HD-SDI Preview output will also be affected by the HD-SDI refresh
rate and PLAYBACK resolution selections described elsewhere in this guide.
To select between 720p and 848p output options, select VIDEO (720p) or MENUS (DVI). The default is
VIDEO (720p) The Preview output setting will be held in camera memory.

TEST SIGNAL

Permits the video monitor outputs to be replaced with a video test pattern.
To enable/disable a test signal check the box and select the desired test signal to display. Available test
signals include the following:
70 70
USER ACTION to modify settings.
