GREEN GAIN: Adjusts the gain of the GREEN channel only. Range is 0.0 (no Green) to +4.0.

TONE

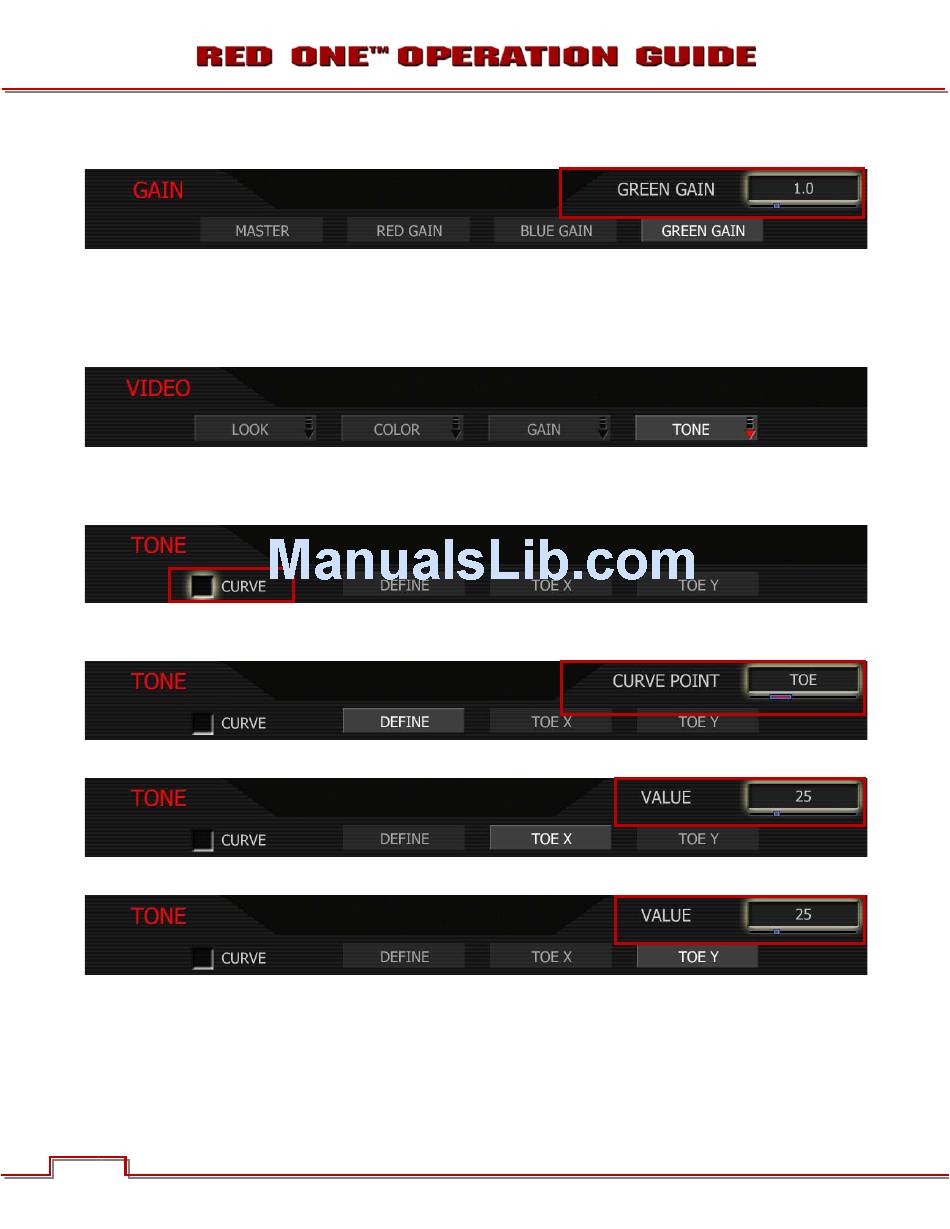

The TONE sub-menu allows a Tonal Response Curve to be overlaid on the video monitor path. The curves
parameter values are stored in metadata, and may be visualized in RED Alert! ® Post-production software
as Curve data.
CURVE: This checkbox enables the Tonal Response Curve. Default setting is enabled. To select: use
joystick to highlight ENABLE checkbox and push in or down on joystick to place checkmark in CURVE
checkbox.
DEFINE: Selects the curve control point to be adjusted - Black, Toe, Center, Knee or White. Each control
point comprises two independent values, one each for X and Y-axis locations.
TOE X: Adjusts the location of a control point along the X-axis on the tonal response curve.
TOE Y: Adjust the location of a control point along the Y-axis on the tonal response curve.
Build 20 v20.1.6
44
44
©2009 RED.COM INC.
OCTOBER 19, 2009
