Quality; Recording - RED ONE Operation Manual

QUALITY

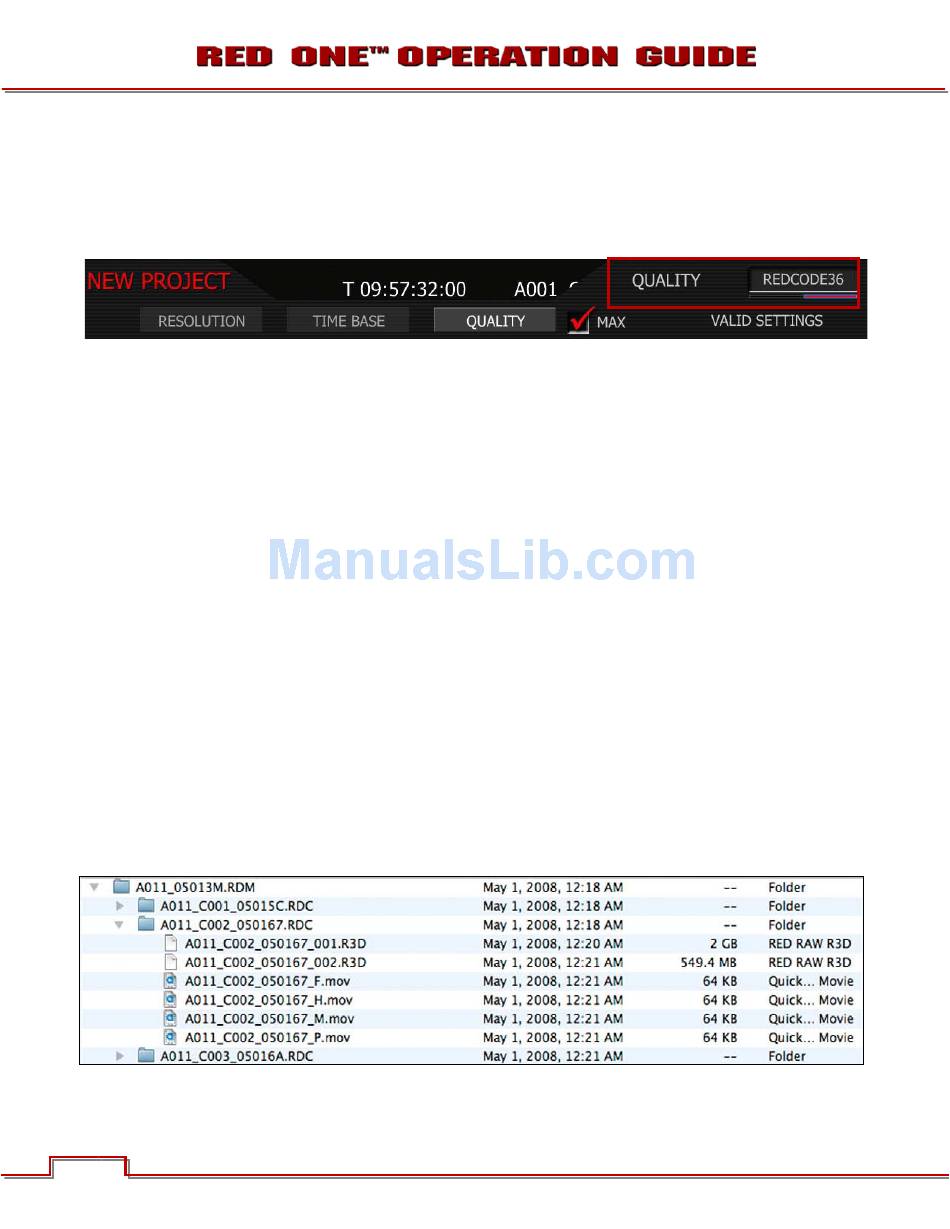

Selecting QUALITY will highlight the upper right hand menu item and give you the following options:
• •
REDCODE™ 28 REDCODE™ 36
1. To view options, twist joystick (like a knob).
2. Choose between REDCODE™ 28 and REDCODE™ 36 (Default is REDCODE™ 36)
3. Push joystick in or down to set the selected quality.
NOTE: Choosing REDCODE™ 36 limits available frame rates and resolutions to CF cards.

RECORDING

Ensure a RED-DRIVE® is connected or a REDFLASH™ Compact Flash card is inserted in the camera. To
record, use either of the RECORD buttons located on the rear and left side of the camera. Push once to
begin recording, push again to stop recording. The camera will automatically create a file name for every
clip recorded on the digital magazine or media.
REDCODE™ RAW data recordings store the Color Temperature and Exposure (ISO) and any RGB color
processing values you use in the monitor path as metadata. This metadata is used in RED Alert! ® or oth-
er post production software as initial white balance, exposure and color correction points i.e. you can
change these if you wish when you process the RAW footage.
Time Code and Edge Code values used by the camera are Non Drop Frame (NDF); Drop Frame (DF) is not
supported. Audio is captured at 48KHz 24-bit resolution per channel, uncompressed.
Digital media should be treated with equal care as exposed film or a videotape master. We recommend
storing digital media that contains your footage in a secure location and backing up the data on another
digital media, such as data tape or a hard disk drive.
Each clip is recorded to the digital media in a separate folder and with a unique clip name. To copy the
clip from the digital media to a Macintosh or Windows computer, just drag and drop its folder to the com-
puter's storage device. If you open the Clip folder, it will look like this:
The Clip folders (.RDC) are held in a root directory (.RDM) on the digital magazine. In each folder there will
be one or more REDCODE™ RAW data files (.R3D) containing RAW sensor data, plus audio and metada-
Build 20 v20.1.6
