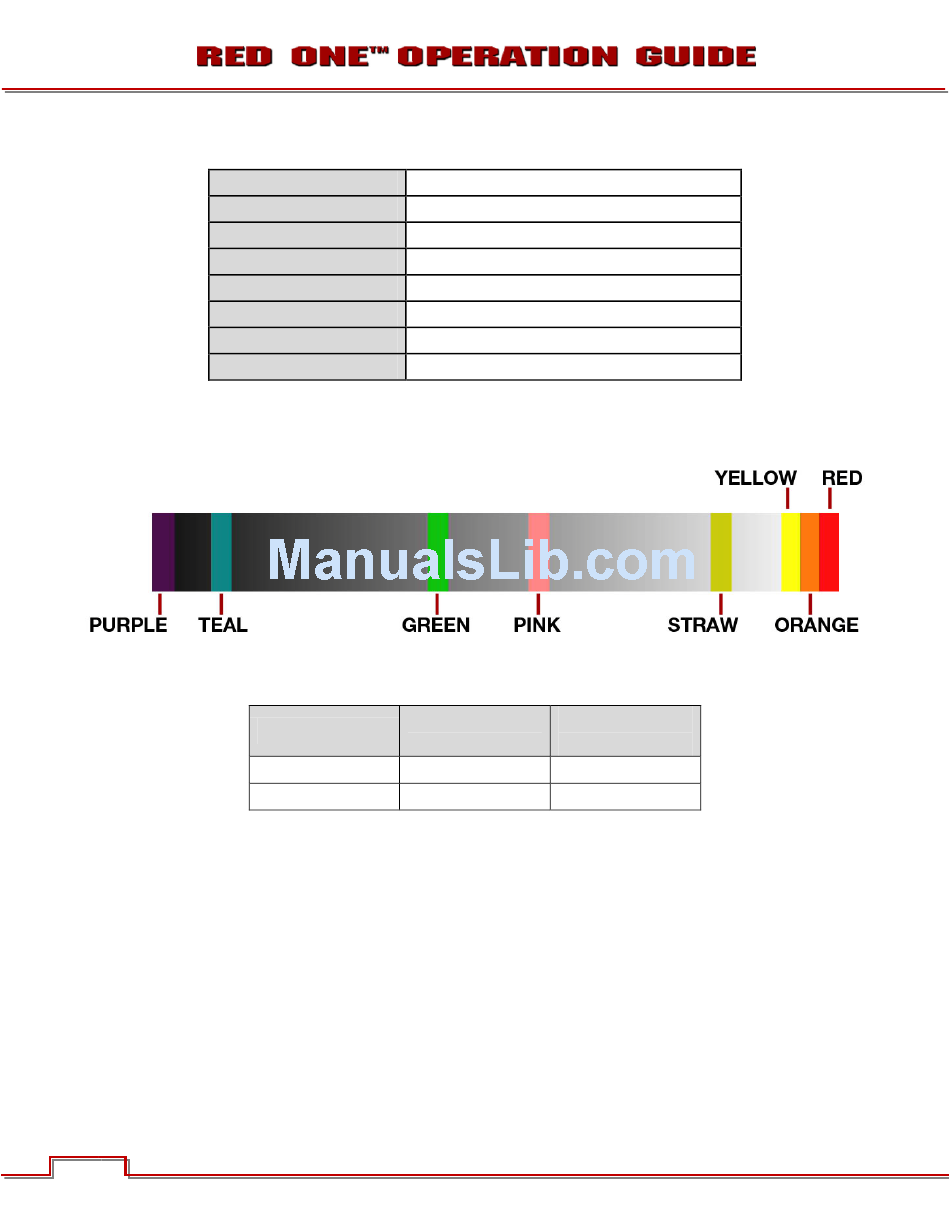

The False Colors bands provide the following information:
At all other values, the image displayed is the luminance value of the original scene. For example, imaging
a 5-stop Chip Chart, the Black chip will show Teal, the 18" Grey chip will show Green, the White chip will
show Straw and the Skin Tone chip will show a Pink false color band.
With camera sensitivity set to ISO 320, and viewing REDSPACE™ or REC 709, the equivalent IRE
values for green and pink are:
To adjust Sensitivity to ISO 320, go to
To set view as REC 709 or REDSPACE™, refer to
EDGE HIGHLIGHT: Items that are in focus are outlined in red over monochrome.

METER

Meters allow the operator to verify camera exposure independently of False Color overlays. Selections
include SPOT METER and five types of histogram: LUMA (luminance), RGB (a composite of Red Green
and Blue), MONO (equal to the RGB area but without color) and RAW (a composite of colorless RGB
overlaid by true sensor exposure)
46
46
PURPLE
TEAL
GREEN
Reference Exposure level with 18% Grey Card
PINK
Typical Exposure level for Caucasian Skin
STRAW
YELLOW
ORANGE
RED
IRE Values
Color
REC 709
Green
45 - 47
Pink
60 - 63
SENSITIVITY
©2009 RED.COM INC.
Minimum Exposure
3 stops under reference
2 stops over reference
2/3 stop under maximum exposure
1/3 stop under maximum exposure
Maximum Exposure
IRE Values
REDSPACE™
56 - 59
67 - 70
under SENSOR MENU CONTROLS.
VIEW
under AUDIO/VIDEO MENU CONTROLS.
Build 20 v20.1.6
OCTOBER 19, 2009
