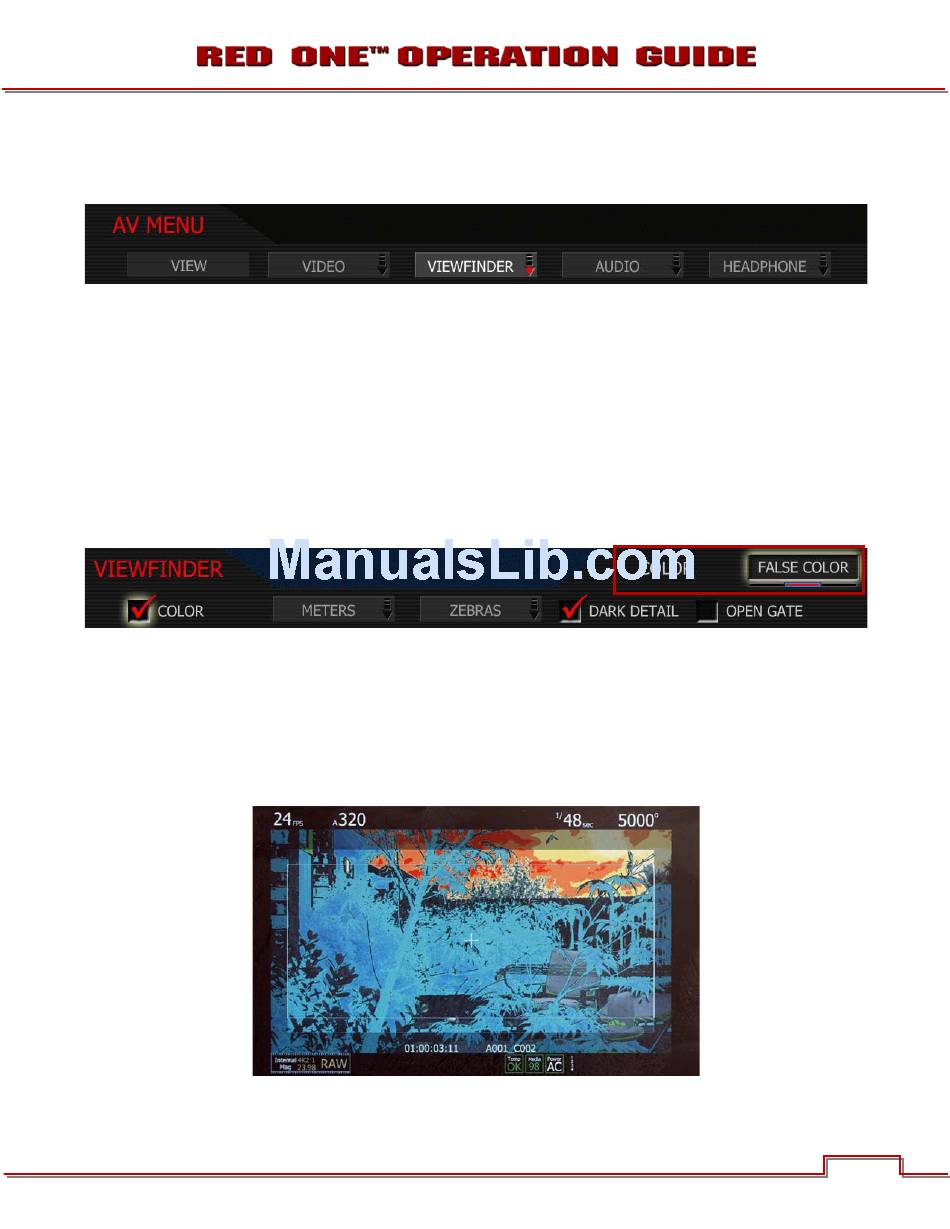

VIEWFINDER MENU

This menu permits the operator to adjust operation of the viewfinder.

COLOR

When checked, forces the RED™ EVF and RED™ LCD outputs to monochrome or a false color exposure
assist or Edge Highlight.
1. To select and adjust, use joystick to highlight COLOR checkbox.
2. Push in or down on joystick to place checkmark in COLOR checkbox.
3. COLOR box will highlight to allow you to choose between MONOCHROME, FALSE COLOR or EDGE
HIGHLIGHT.
4. Twist joystick to change the highlighted COLOR box to the desired setting.
5. Move joystick right to select and exit.
MONOCHROME: The color component of the image is removed.
FALSE COLOR: When False Color is selected, the color component of the image is replaced by an over-
lay of colored bands representing the exposure levels with the image. Bluer colors represent underex-
posed areas, green represents 18% ND, yellows and reds represent more exposed areas.
NOTE: False Color is affected by White Balance, ISO, VIEW and LOOK settings, however if VIEW is
set to RAW, the False Color bands represent the exposure levels at the sensor i.e. prior to any
White Balance, ISO, VIEW and LOOK settings.
The above image is an example of false color mapping indicating the stops of exposure.
