FRAME GUIDE

This sub-menu provides a selection of frame guides and safe action and safe title guides. User definable
safe action and safe title guides may be saved as a USER PREFERENCE, thereby permitting the camera
guides to be fully customized for any application.

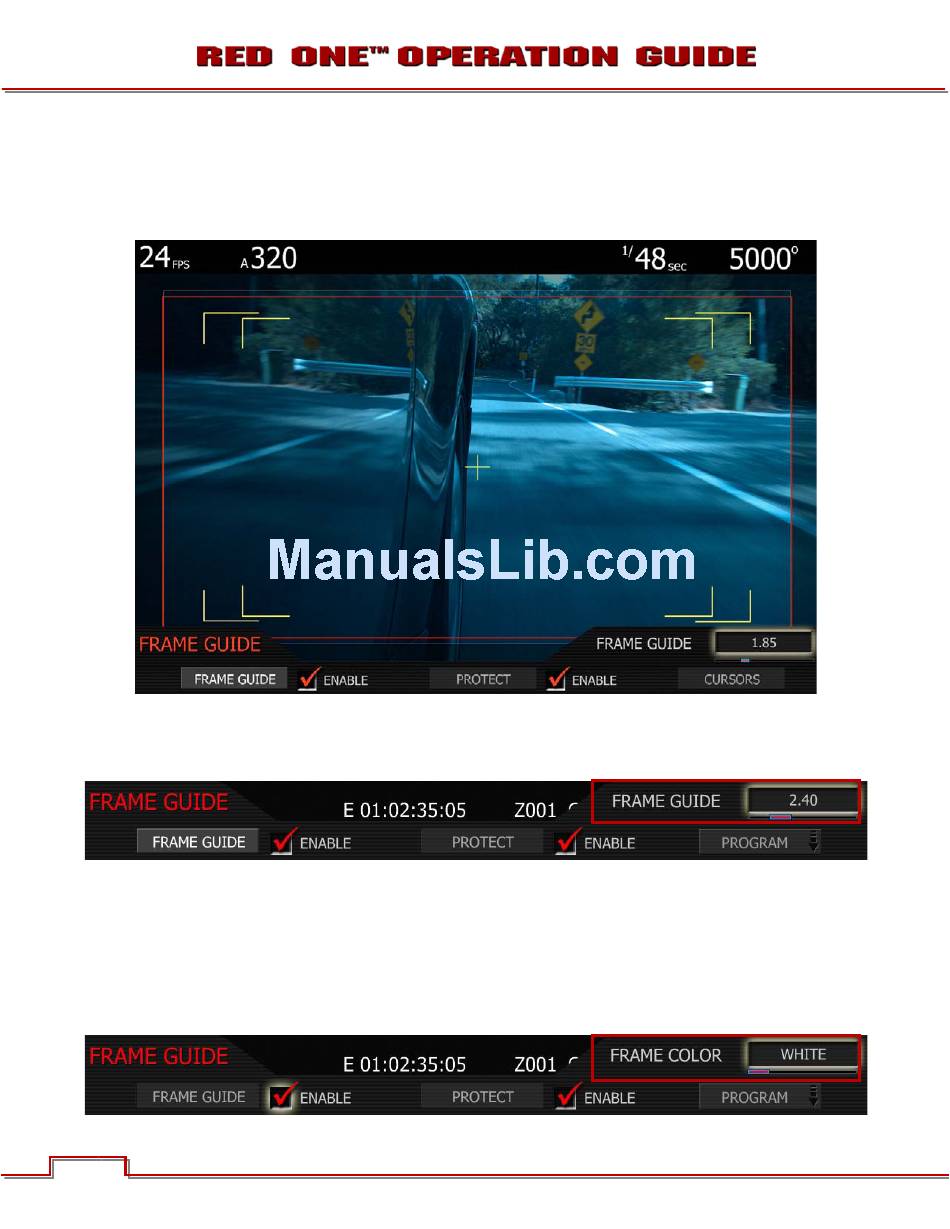

FRAME GUIDE: displays film projection areas with 1.85 or 2.40 aspect ratios and television display areas
with 16:9 or 4:3 aspect ratios.
1. To change frame guide aspect ratio, select FRAME GUIDE.
2. FRAME GUIDE box will highlight to allow you to choose from FULL to 16:9.
3. Twist joystick to change the highlighted FRAME GUIDE box to the desired setting.
4. Move joystick left, right or up to select and exit.
FRAME GUIDE ENABLE: allows you to set the frame guide line color to White, Black, Blue, Yellow or
Red for maximum color contrast with the scene you are shooting.
