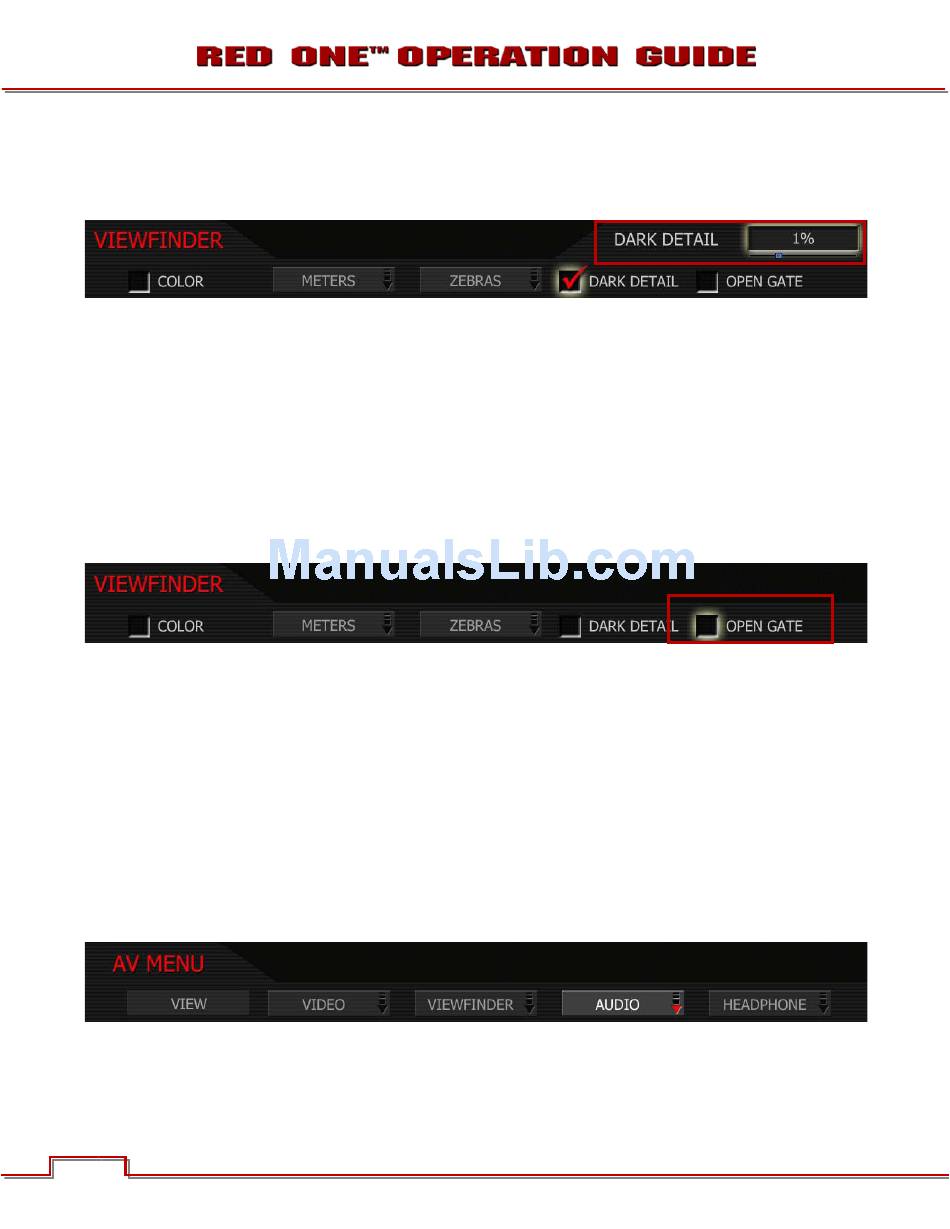

DARK DETAIL

Dark Detail allows the RED™ EVF to view addition information (detail) in dark areas of a scene, or in dimly
illuminated nighttime scenes.
1. To select and adjust, use joystick to highlight DARK DETAIL checkbox.
2. Push in or down on joystick to place checkmark in DARK DETAIL checkbox (checkmark is default)
3. DARK DETAIL box will highlight to allow you to choose value between 0% and 50% (default is 1%).
4. Twist joystick to change the highlighted DARK DETAIL box to the desired setting.
5. Move joystick left to select and exit.

OPEN GATE

Open Gate lets the camera preview images at 48Hz (50Hz) update rate when operating in 23.98 or 24.00
fps (25 fps) Project Frame Rates. In record, all monitor path images will be viewed at 48Hz, but recorded
at 23.98 or 24.00 fps (viewed at 50Hz, recorded at 25 fps)
NOTE: Use Open Gate with caution. Due to the doubling of sensor frame rate relative to capture
rate the following operational restrictions should be noted.
Open Gate is not available in Varispeed or Ramp modes.
-
Open Gate is not available for 50.00 or 59.94 Project Frame Rates.
-
Video Genlock may not be available when operating in Open Gate.
-
360-degree shutter is not available when operating in Open Gate.
-
NOTE: When deselecting Open Gate mode, it is normal to observe up to a 3 second disruption in
the RED™ EVF display.

AUDIO

Audio is recorded at 24-bit 48KHz, which provides high audio fidelity and wide dynamic range.
Line Level and Microphone Level analog audio input signals are routed via a high quality A/D and pre-
amplifier, whose gain stage may be controlled using the Input Level control to achieve the desired audio
reference / recording level.
