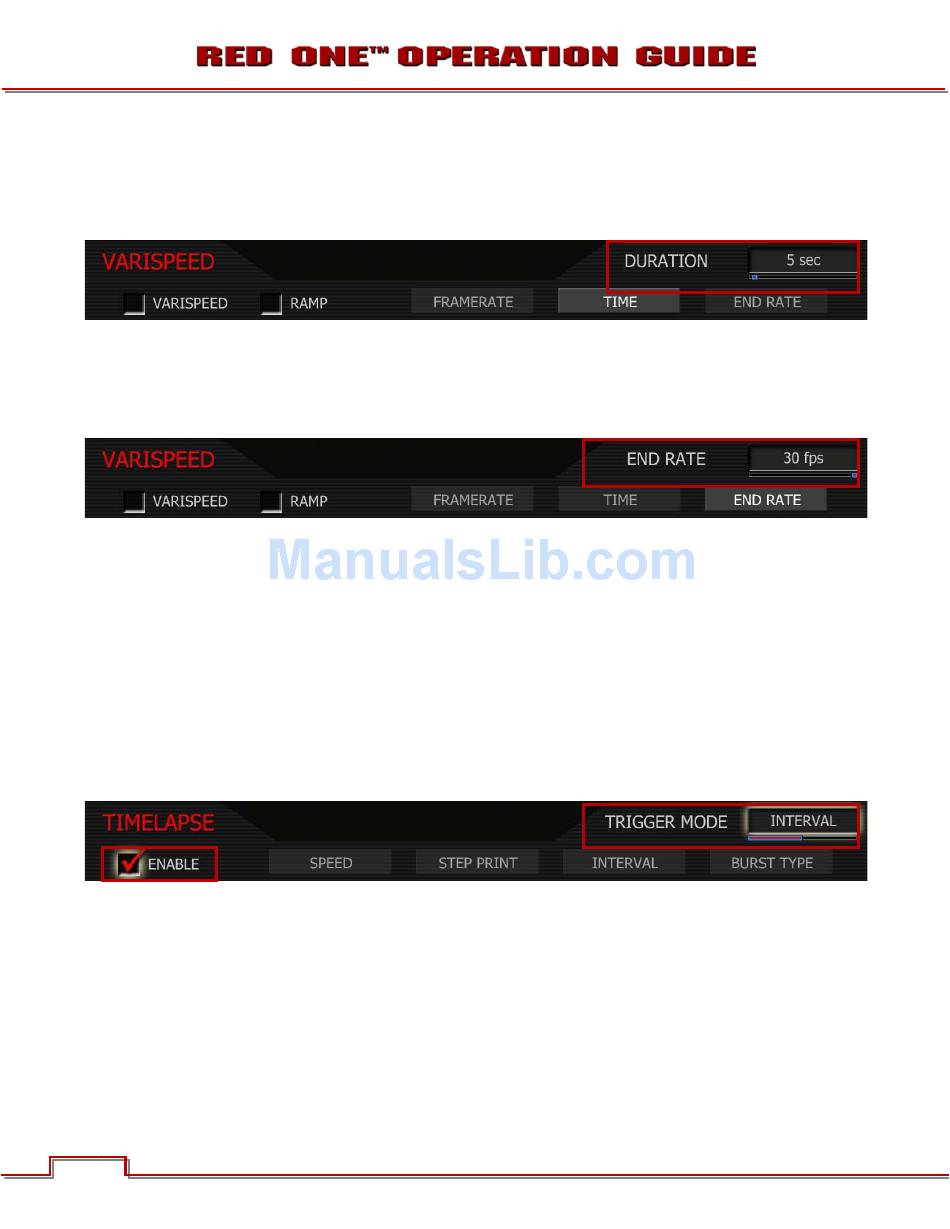

TIME

When Ramp is enabled, this value specifies the transition time to be used by the camera between the
(start) Frame Rate and the End (frame) Rate. To adjust: Select TIME and twist joystick to change the hig-
hlighted DURATION box to the desired setting (default value is 5 seconds.)

END RATE

When Ramp is enabled, this value specifies the final (ending) speed of the ramp in frames per second.
When a ramp transition has been completed, the camera will continue to record at the End Rate until the
end of the Recording.
NOTE: When in Varispeed modes the camera maintains the last exposure time selected (unless the
requested frame rate requires a shorter exposure time) to provide a constant exposure. If a variable
exposure is required set the Shutter Mode to Relative - this is a fixed angle setting.

TIME-LAPSE

The Time-lapse menu supports single frame image capture and step frame recording under the control of
an internal Intervalometer, side RECORD key or an external (GPI) trigger.

ENABLE

After making any adjustments in the Time-lapse menu, check the Enable box to enter these values and
enable the Time-lapse record mode. The UI indicates by changing the top left frame rate display from fps
to TL, and the lower right audio level display to TIMELAPSE.
1. To select and adjust, use joystick to highlight ENABLE checkbox.
2. Push in or down on joystick to place checkmark in ENABLE checkbox.
3. TRIGGER MODE box will highlight to allow you to choose between INTERVAL and ONE SHOT (default
is INTERVAL).
4. Twist joystick to change the highlighted TRIGGER MODE box to the desired setting.
5. Move joystick right to exit.
TRIGGER MODE: Specifies if the camera is to use a fixed Interval of time or wait for a side record com-
mand or external GPI contact closure to initiate the next frame capture.
