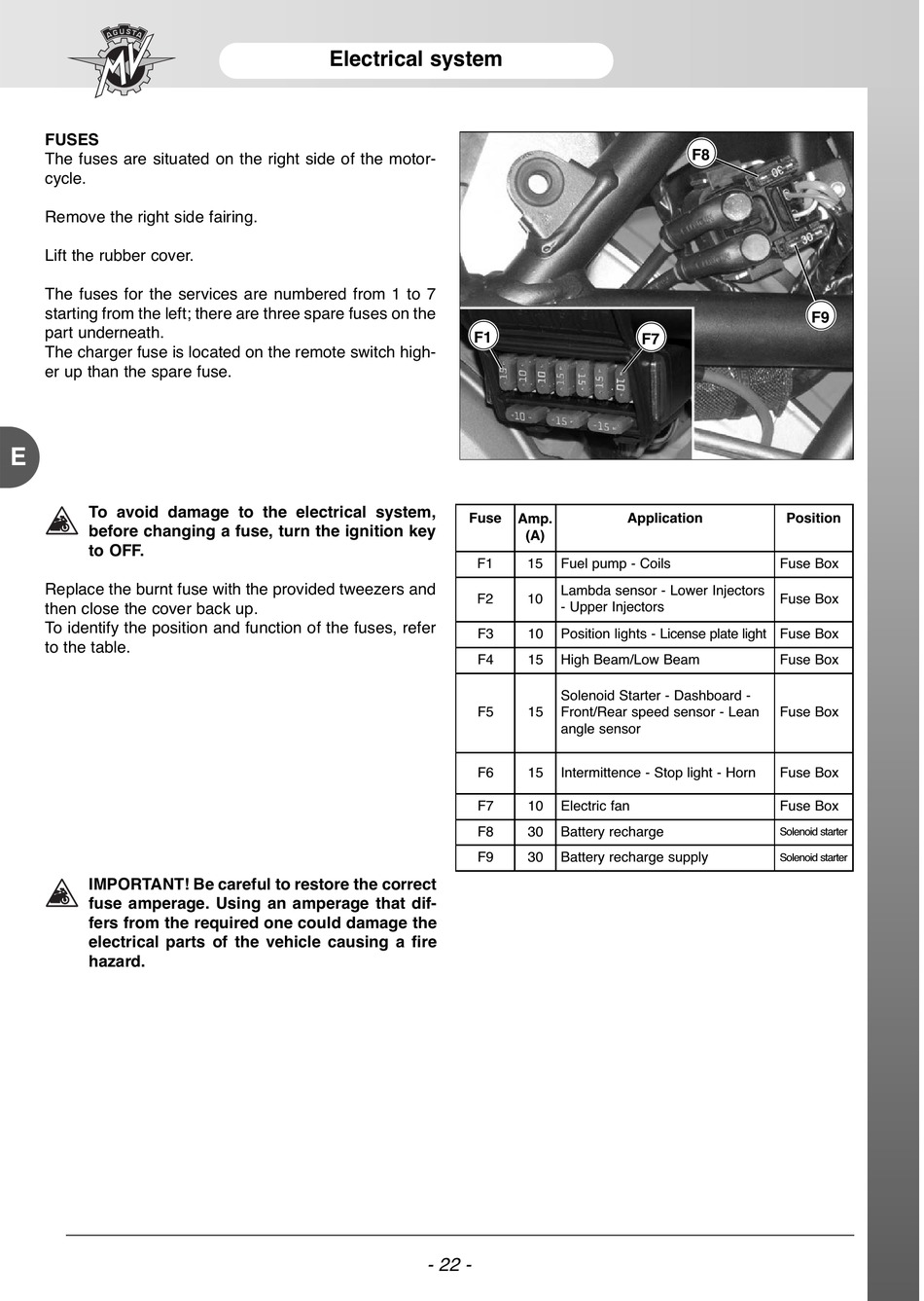

The fuses are situated on the right side of the motor-

FUSES

cycle.
Remove the right side fairing.
Lift the rubber cover.
The fuses for the services are numbered from 1 to 7
starting from the left; there are three spare fuses on the
part underneath.
The charger fuse is located on the remote switch high-
er up than the spare fuse.
E
To avoid damage to the electrical system,
before changing a fuse, turn the ignition key
to OFF.
Replace the burnt fuse with the provided tweezers and
then close the cover back up.
To identify the position and function of the fuses, refer
to the table.
IMPORTANT! Be careful to restore the correct
fuse amperage. Using an amperage that dif-
fers from the required one could damage the
electrical parts of the vehicle causing a fire
hazard.
Electrical system
F1
Fuse
F1
F2
F3
F4
F5
F6
F7
F8
F9
- 22 -
F7
Application
Amp.
(A)
15 Fuel pump - Coils
Lambda sensor - Lower Injectors
10
- Upper Injectors
10 Position lights - License plate light Fuse Box
15 High Beam/Low Beam
Solenoid Starter - Dashboard -
15 Front/Rear speed sensor - Lean
angle sensor
15 Intermittence - Stop light - Horn
10 Electric fan
30 Battery recharge
30 Battery recharge supply
F8
F9
Position
Fuse Box
Fuse Box
Fuse Box
Fuse Box
Fuse Box
Fuse Box
Solenoid starter
Solenoid starter
