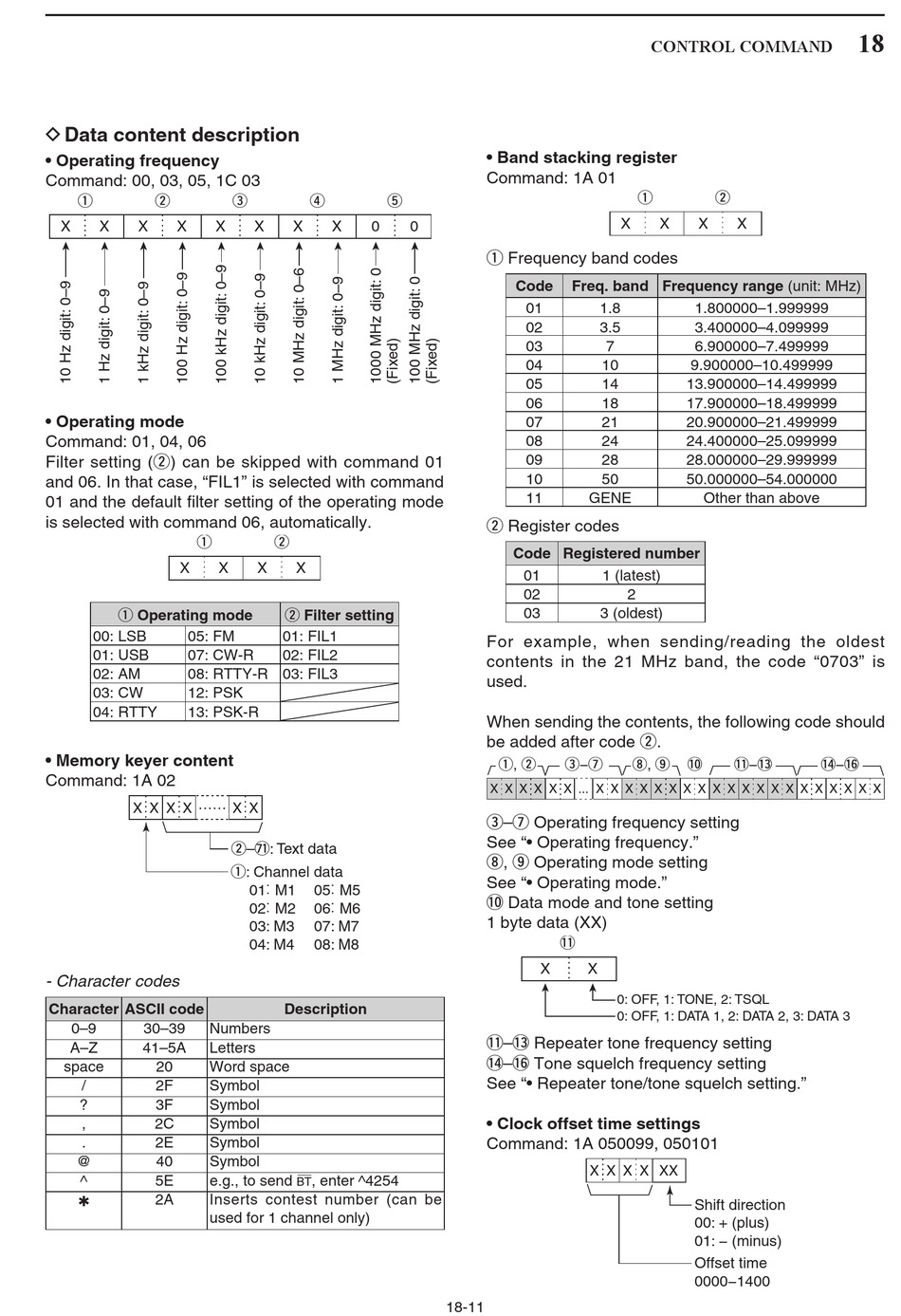

D Data Content Description - Icom IC-7850 Instruction Manual

D Data content description

• Operating frequency
Command: 00, 03, 05, 1C 03
q w
X X X X
• Operating mode
Command: 01, 04, 06
Filter setting (w) can be skipped with command 01
and 06. In that case, "FIL1" is selected with command
01 and the default filter setting of the operating mode
is selected with command 06, automatically.
q
X
q Operating mode
00: LSB 05: FM
01: USB 07: CW-R
02: AM 08: RTTY-R 03: FIL3
03: CW 12: PSK
04: RTTY 13: PSK-R
• Memory keyer content
Command: 1A 02
X X X ...... X X
X
- Character codes
Character ASCII code
0–9 30–39 Numbers
A–Z 41–5A Letters
space 20 Word space
/ 2F Symbol
? 3F Symbol
, 2C Symbol
. 2E Symbol
@ 40 Symbol
^ 5E e.g., to send
2A Inserts contest number (can be
✱
used for 1 channel only)
e r
X X X X 0
w
X X X
w Filter setting
01: FIL1
02: FIL2
w–&1 : Text data
q: Channel data
01 ： M1 05 ： M5
02 ： M2 06 ： M6
03: M3 07: M7
04: M4 08: M8
Description
, enter ^4254
BT
• Band stacking register
Command: 1A 01
t
0
q Frequency band codes
Code
01
02
03
04
05
06
07
08
09
10
11
w Register codes
Code Registered number
01
02
03
For example, when sending/reading the oldest
contents in the 21 MHz band, the code "0703" is
used.
When sending the contents, the following code should
be added after code w.
q, w
X X X X X X ... X X X X X X X X X X X X X X X X X X
e–u Operating frequency setting
See "• Operating frequency."
i, o Operating mode setting
See "• Operating mode."
!0 Data mode and tone setting
1 byte data (XX)
X
!1 – !3 Repeater tone frequency setting
!4 – !6 Tone squelch frequency setting
See "• Repeater tone/tone squelch setting."
• Clock offset time settings
Command: 1A 050099, 050101
18-11
CONTROL COMMAND
q w
X X X
Freq. band Frequency range (unit: MHz)
1.8 1.800000–1.999999
3.5 3.400000–4.099999
7 6.900000–7.499999
10 9.900000–10.499999
14 13.900000–14.499999
18 17.900000–18.499999
21 20.900000–21.499999
24 24.400000–25.099999
28 28.000000–29.999999
50 50.000000–54.000000
GENE Other than above
1 (latest)
2
3 (oldest)
e−u i, o ! 0
!1
X
0: OFF, 1: TONE, 2: TSQL
0: OFF, 1: DATA 1, 2: DATA 2, 3: DATA 3
X X X X XX
Shift direction
00: + (plus)
01: − (minus)
Offset time
0000−1400
18
X
!1 − !3 !4 − !6
X X
