2.4 Installing a Probe

Follow the instructions in this section to install a probe on your USM Go.

2.4.1 Connecting the Probe

When connecting a probe to the instrument, the following steps must be taken:
•
Properly complete the physical connection of the probe to the instrument.
•
Properly configure the instrument to work with the connected probe.
The USM Go accepts either a single-element probe or a dual-element probe.
To install a single-element probe, connect the probe cable to either of the two ports on
the side of the instrument (see Figure 11 to the right). When a dual-element probe is
connected to the instrument, the key between and below the ports ensures proper
orientation of the transmit and receive connectors.
USM Go Operator's Manual
Chapter 2. Instrument Setup
Receive
Probe
Transmit
Probe

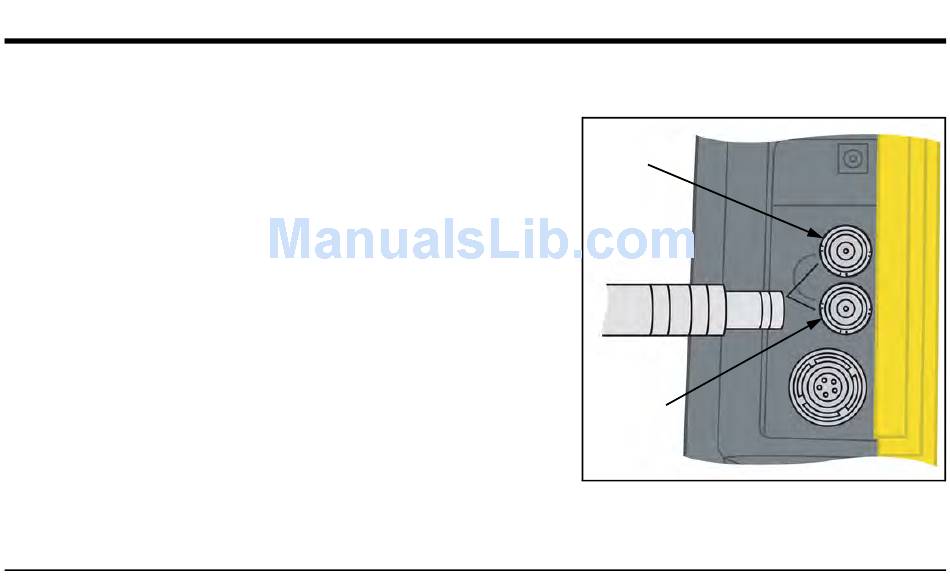

Figure 11: Probe Connector Locations
