GE Krautkramer USM 35X Operator's Manual
  1. Manuals
  2. Brands
  3. GE Manuals
  4. Measuring Instruments
  5. Krautkramer USM 35X
  6. Operator's manual

GE Krautkramer USM 35X Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1 Introduction ........................................ 1-1
1.1 Safety information ..................................... 1-2
Batteries ...................................................... 1-2
Software ...................................................... 1-2
ultrasonic testing ...................................... 1-3
ultrasonic test equipment ............................ 1-3
Operator training .......................................... 1-4
Technical test requirements ........................ 1-4
Limits of testing .......................................... 1-5
Effect of temperature variations .................. 1-6
thickness .................................................... 1-6
Ultrasonic evaluation of flaws ..................... 1-6
Flaw boundary method ................................ 1-6
Echo display comparison method ............... 1-7
Krautkramer USM 35X
1.3 The USM 35X family .................................. 1-8
Special features .......................................... 1-9
1.4 How to use this manual .......................... 1-10
manual ..................................................... 1-11
Attention and Note symbols ...................... 1-11
Listings ..................................................... 1-11
Operating steps ......................................... 1-11
accessories ........................................ 2-1
2.1 Standard package ..................................... 2-3
2.2 Recommended accessories ..................... 2-5
Issue 01, 04/2005
Contents
0-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Krautkramer USM 35X and is the answer not in the manual?

Questions and answers

TEX TET
June 20, 2025

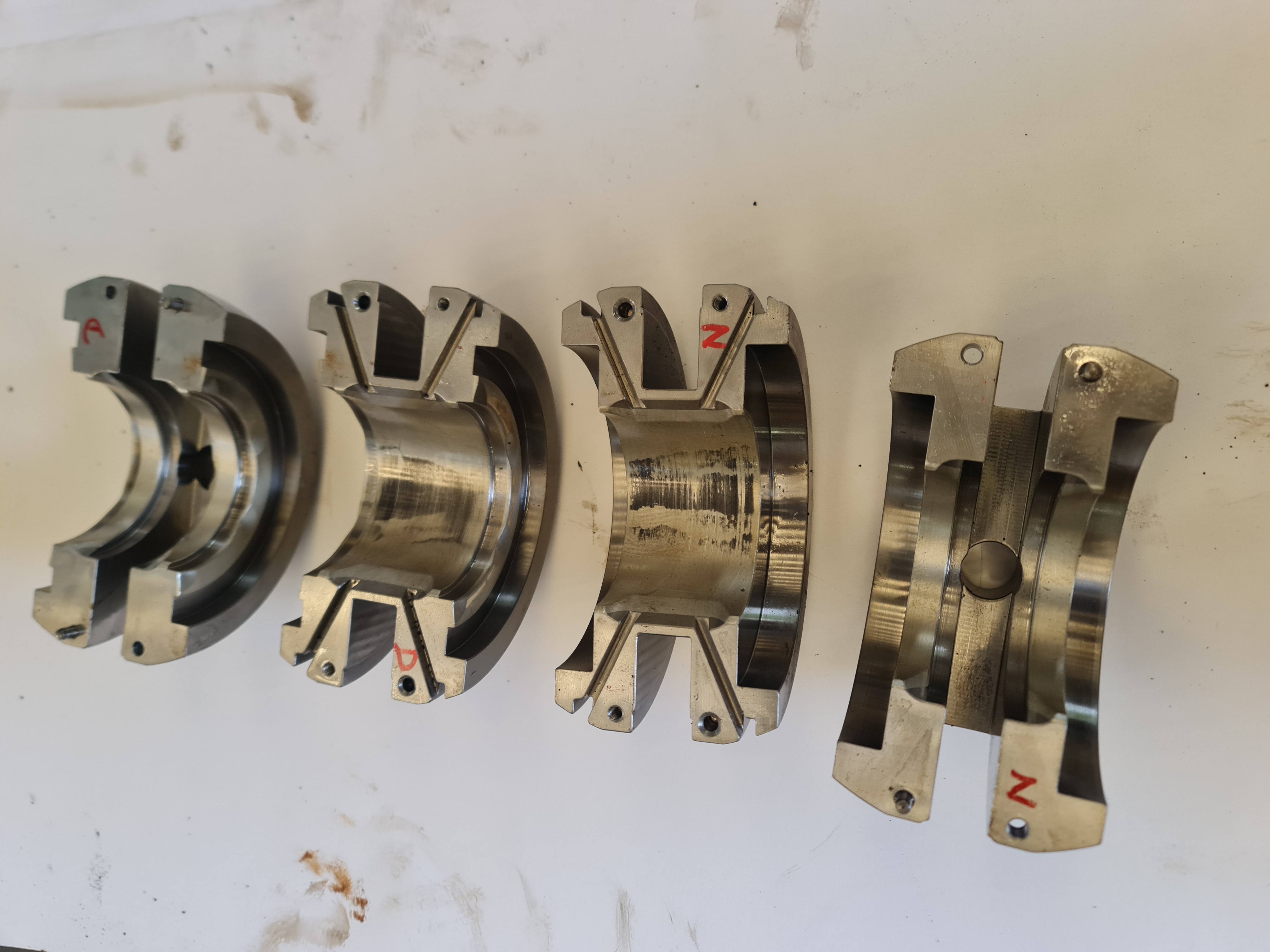

For the bonding of Babbit sleeve material to the steel shell of a sleeve bearing, is this set suitable. Do we need to have different sensor types?

User image 685505bb017bc
0

Subscribe to Our Youtube Channel

Related Manuals for GE Krautkramer USM 35X

Summary of Contents for GE Krautkramer USM 35X

  • Page 1: Table Of Contents

    2.2 Recommended accessories ..... 2-5 Effect of temperature variations ....1-6 Measurement of remaining wall thickness ............ 1-6 Ultrasonic evaluation of flaws ..... 1-6 Flaw boundary method ........ 1-6 Echo display comparison method ....1-7 Krautkramer USM 35X Issue 01, 04/2005...
  • Page 2 4.6 Basic settings of the display ....4-14 4.1 Operator’s controls ........4-2 Selecting the color scheme ....... 4-14 Setting the lighting ........4-14 4.2 Screen display ........... 4-3 Functions on the display ......4-4 Other displays ..........4-5 Issue 01, 04/2005 Krautkramer USM 35X...
  • Page 3 (Response and (function group PULS) ......5-9 measurement threshold of the gates) ..5-16 DAMPING (Probe matching) ....... 5-9 POWER (Intensity) ........5-10 DUAL (Pulser-receiver separation) .... 5-10 PRF-MOD (Pulse repetition frequency) ..5-11 Krautkramer USM 35X Issue 01, 04/2005...
  • Page 4 (function group AWS) ......5-28 PREVIEW (Dataset preview) ....5-41 Rating of welds according to AWS .... 5-28 DIR (Dataset directory) ......5-42 5.11 Calculation of flaw position SETTING (Function list) ......5-42 (function group TRIG) ......5-31 Issue 01, 04/2005 Krautkramer USM 35X...
  • Page 5 BAUD-R (Baud rate for transmission) ..5-55 OFFSET (Distance of multiple DAC) ..5-65 PRINTER (Printer for test report) ....5-55 Echo evaluation with DAC ......5-65 COPYMOD (Assignment of the key) ... 5-55 Krautkramer USM 35X Issue 01, 04/2005...
  • Page 6 Charging the batteries ......... 7-3 displaying the DGS curve ......5-75 How to handle alkaline batteries ....7-4 Evaluation of reflectors ......5-76 7.3 Maintenance ..........7-5 Transfer correction ........5-78 Sound attenuation ........5-78 Issue 01, 04/2005 Krautkramer USM 35X...
  • Page 7 8.4 RGB interface ..........8-7 8.5 Data exchange ........... 8-8 11 Index ..........11-1 Connecting a printer or a PC ....... 8-8 Activation of serial communication ..... 8-8 Technical Specifications Printing data ..........8-9 according to EN 12668-1 Krautkramer USM 35X Issue 01, 04/2005...
  • Page 8 Issue 01, 04/2005 Krautkramer USM 35X...

  • Page 9: Introduction

    Introduction Krautkramer USM 35X Issue 01, 04/2005...

  • Page 10: Safety Information

    According to the current state of the art, software is supply unit. never completely free from errors. Before using any software-controlled test equipment, please make sure The power supply unit has the electrical safety class II. Issue 01, 04/2005 Krautkramer USM 35X...

  • Page 11: Defects/Errors And Exceptional Stresses

    If you have any questions about the use of your test equipment, please contact your nearest representative Please read the following information before using your of GE Inspection Technologies. USM 35X. It is important that you understand and ob- serve this information to avoid any operator errors that might lead to false test results.

  • Page 12: Operator Training

    The example NDT societies or organizations in your country scheduled dates for these courses will be given to you (DGZfP in Germany; ASNT in the USA), or also GE on request. Inspection Technologies, for information concerning...

  • Page 13: Limits Of Testing

    All ultrasonic wall thickness measurements are based on a time-of-flight measurement. Accurate measure- ment results require a constant sound velocity in the test object. In test objects made of steel, even with Krautkramer USM 35X Issue 01, 04/2005...

  • Page 14: Effect Of Temperature Variations

    Care should therefore be taken to select a probe which will give a sufficiently narrow beam at the position of the flaw. Issue 01, 04/2005 Krautkramer USM 35X...

  • Page 15: Echo Display Comparison Method

    Attention should be paid here to choosing artificial comparison flaws which are as far as possible governed by the same ”distance laws” as the natural flaws to be evalu- ated. Krautkramer USM 35X Issue 01, 04/2005...

  • Page 16: The Usm 35X Family

    DAC curve or equivalent reflector size (ERS). • Data Logger option This option is available for all USM 35X versions and is used for the recording and documentation of thick- ness readings. Issue 01, 04/2005 Krautkramer USM 35X...

  • Page 17: Special Features

    • display of 4 readings plus 1 reading zoomed in the entire screen width A-scan, user-configurable • 5.7", 1/4 VGA-TFT color display to display the digi- tized signals (320 × 240 pixels, 115 × 86 mm ) Krautkramer USM 35X Issue 01, 04/2005...

  • Page 18: How To Use This Manual

    10 Changes . It describes corrections that have become necessary at short notice and have not yet been included in the general manual. If no correc- tions have become necessary, this chapter is empty. 1-10 Issue 01, 04/2005 Krautkramer USM 35X...

  • Page 19: Layout And Presentation In This Manual

    – Remove the cover. cial aspects in the operation which could affect the accuracy of the results. – ... H Note: Note contains e.g. references to other chapters or spe- cial recommendations for a function. Krautkramer USM 35X Issue 01, 04/2005 1-11...
  • Page 20 1-12 Issue 01, 04/2005 Krautkramer USM 35X...

  • Page 21: Standard Package And Accessories

    Standard package and accessories Krautkramer USM 35X Issue 01, 04/2005...
  • Page 22 Standard package and accessories This chapter informs you about the standard package and the accessories available for the USM 35X. It describes • accessories included in the standard package, • recommended accessories. Issue 01, 04/2005 Krautkramer USM 35X...
