Chapter 4 Media Load

Peel-Off (Self-strip)

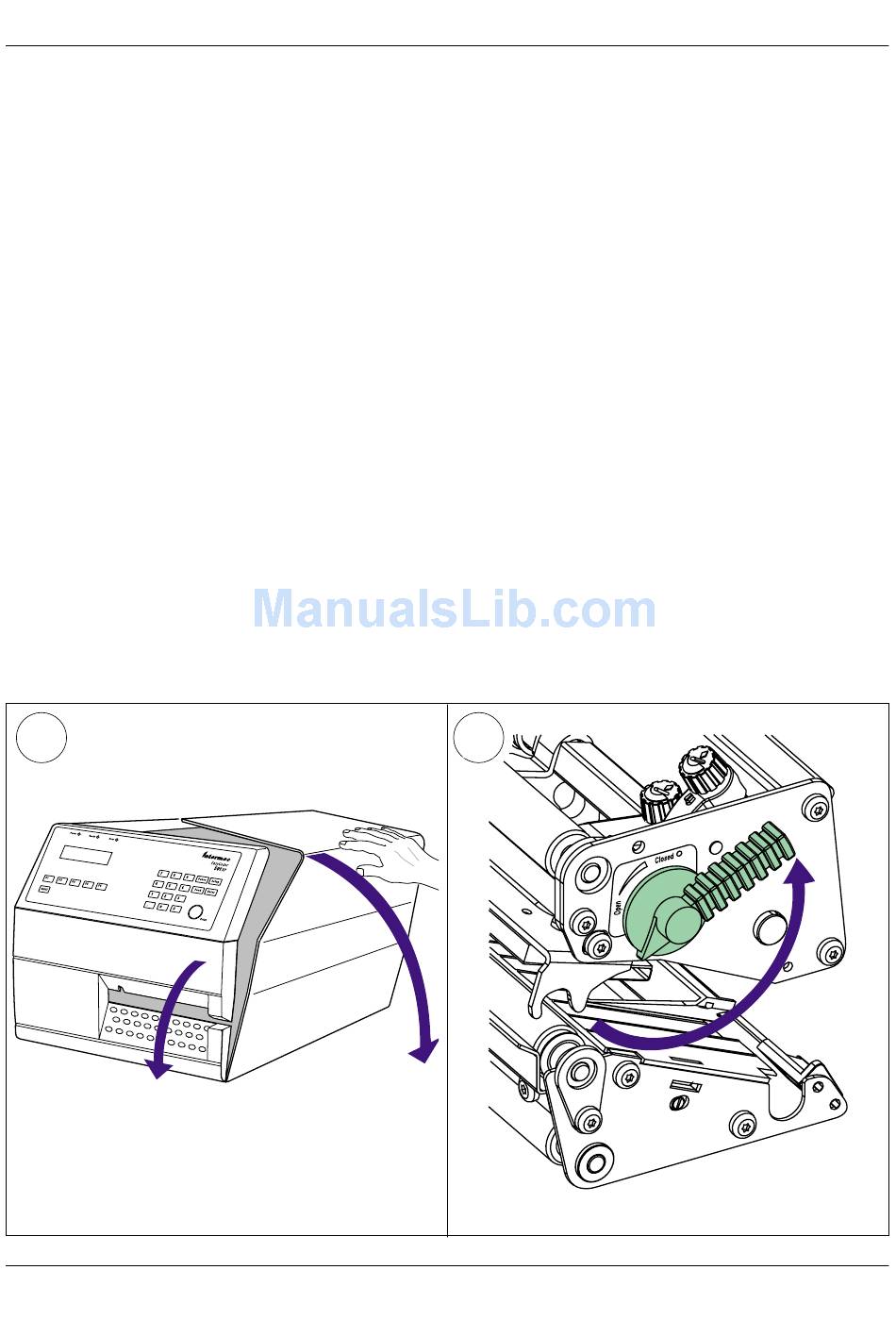

1
Open the front and right-hand doors.
28
The EasyCoder 501 XP can print on labels, tickets, tags, and
continuous stock in various forms. This chapter describes the
case when precut labels fi tted on liner (backing paper) are to be
separated from the liner immediately after printing. This requires
an optional internal liner/batch takeup unit, on which the liner
is wound up after the labels have been printed and dispensed.
This is also known as "Self-strip" operation.
Use the <Feed> key (see fi gure #15) when loading the same type
of media as before. When switching to a new type of media, or if
the printer does not feed out the media properly, simultaneously
press the <Shift> and <Feed> keys to perform a "testfeed."
Peel-off can be used for:
• Self-adhesive labels fi tted on liner.
An optional label taken sensor can hold the printing of next label
in a batch until the present label has been removed, see Chapter
9, "Options."
2
Turn the printhead lift lever to "Open" position.
