Chapter 2
Installation
Rear View
10

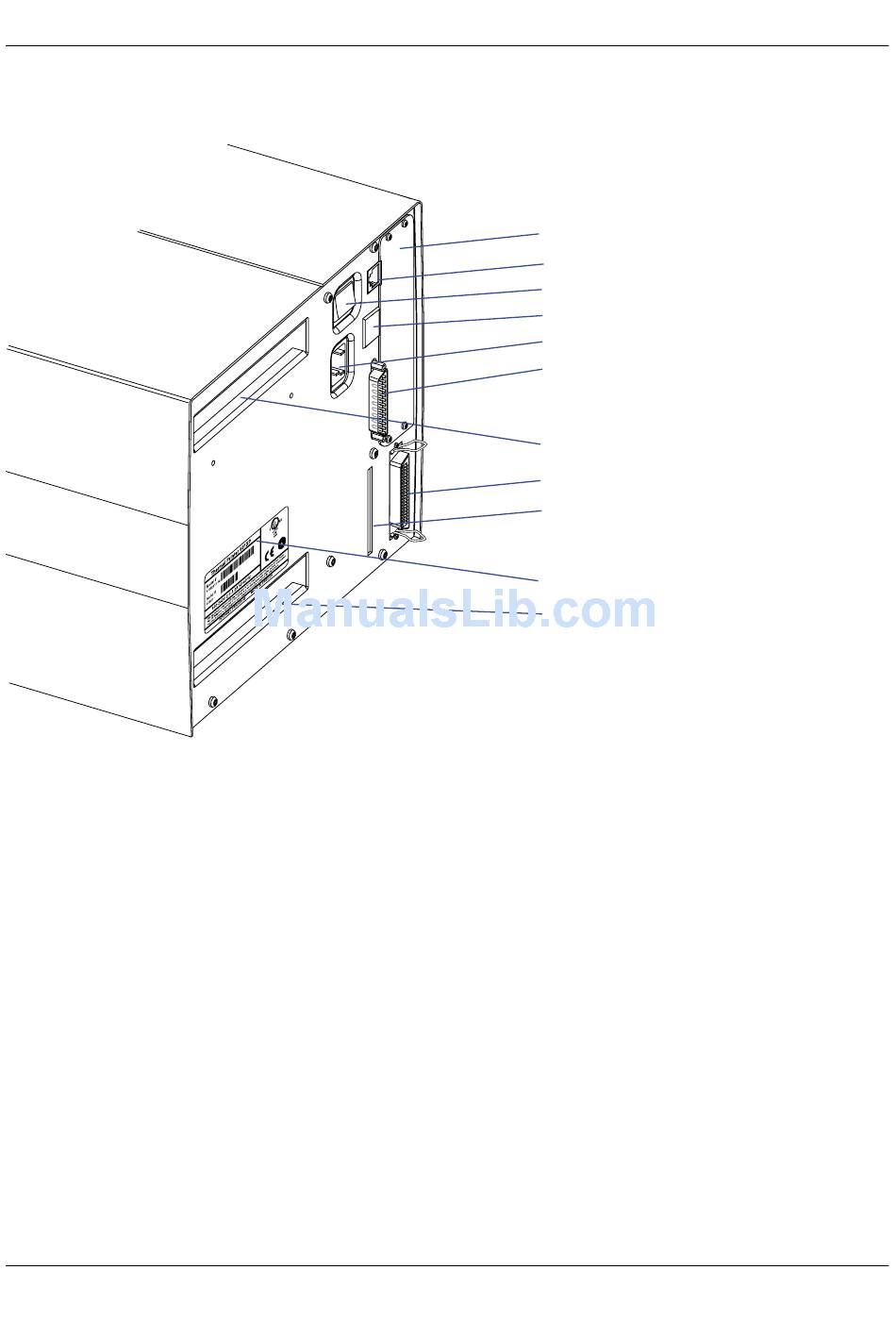

The rear plate contains the On/Off switch, the AC power cord
receptacle, and various interface connectors and slots.
Provision for optional Interface Boards
Bar Code Wand Connector
On/Off Switch
Not used
AC Power Cord Receptacle
RS-232 Serial Interface Connector ("uart1:")
Upper External Media Intake
Centronics Parallel Interface
Memory Card Slot
Machine Label
Lower External Media Intake
Intermec EasyCoder 501 XP – User's Guide
