Appendix 3 Interfaces
Industrial/Serial Interface Board
Industrial Interface
106
The EasyCoder 501 XP can optionally be fi tted with an
Industrial/Serial Interface Board, which provides the printer with
one extra serial communication port ("uart2:"). This port can be
confi gured for one of these options:
RS-232
RS-422 Non-isolated
RS-422 Isolated
RS-485
This port is identical to "uart2:" on the double serial interface
board, see earlier in Appendix 3.

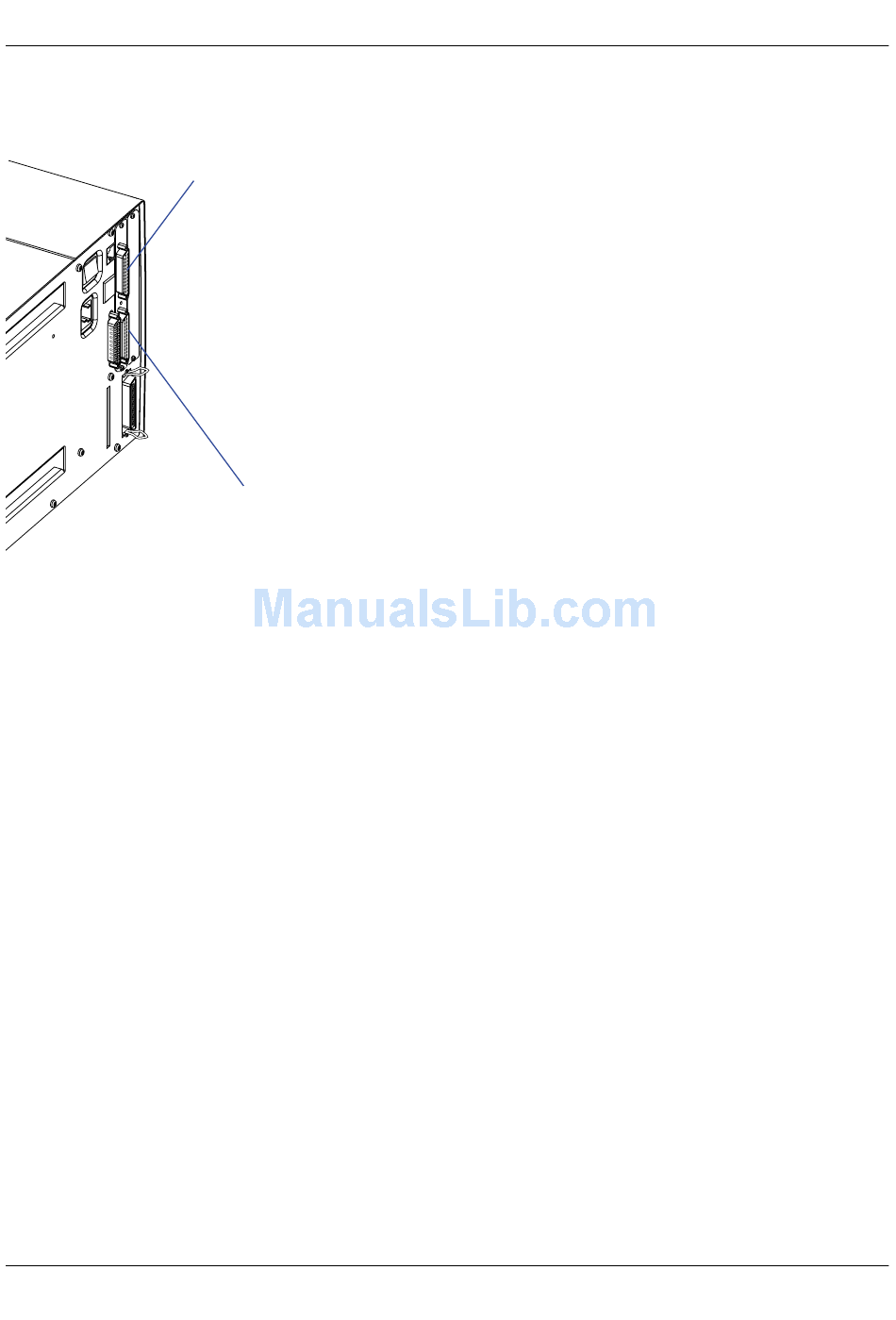

The Industrial Interface Board also has a DB-44pin female con-
nector with:
"uart2:"
8 digital IN ports with optocouplers
8 digital OUT ports with optocouplers
4 OUT ports with relays
Refer to the installation instructions for the Industrial Interface
Board for further information.
