Chapter 4 Media Load
Peel-Off, cont.
6

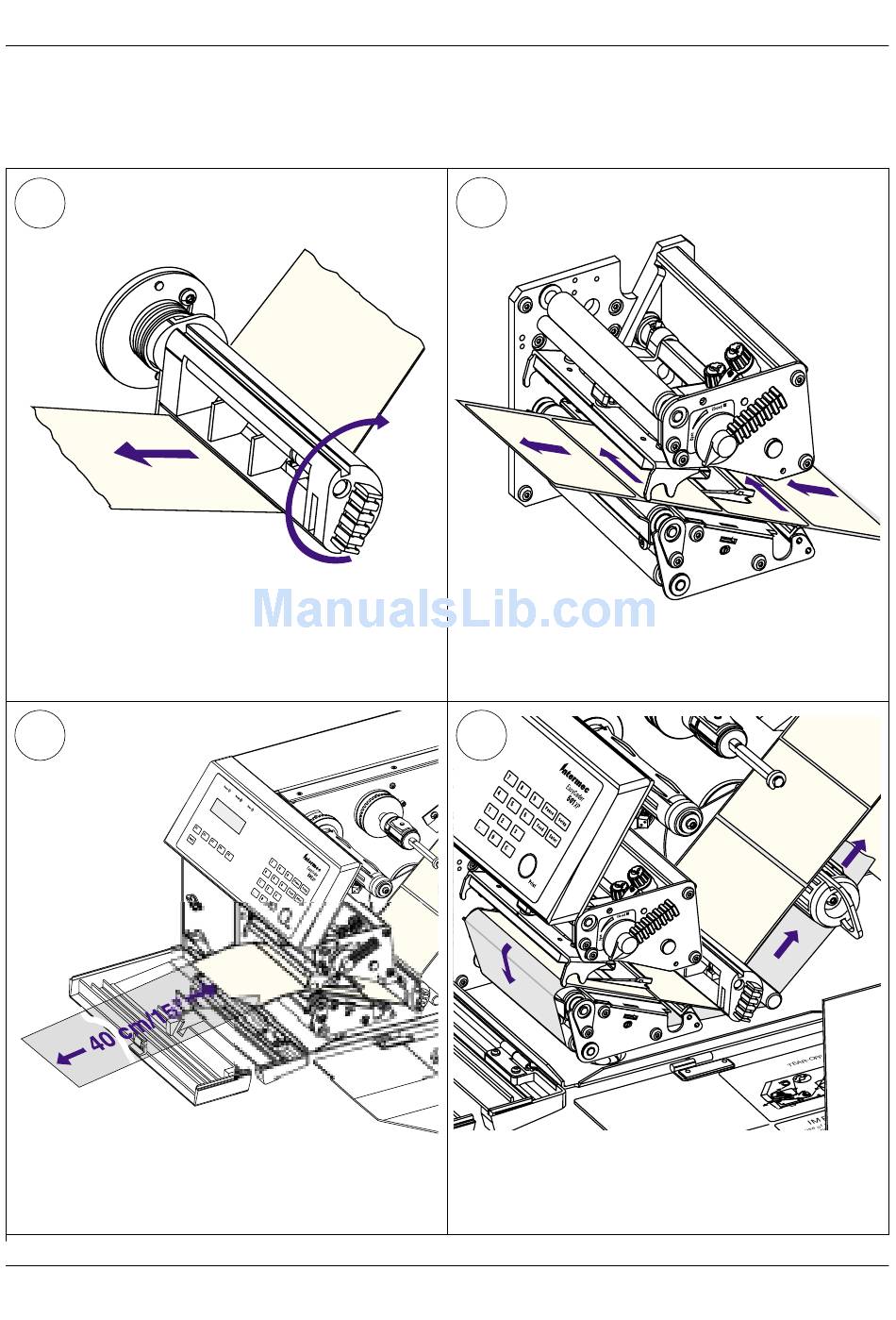

Route the media underneath the slack absorber and
forward towards the print unit. The slack absorber
can be rotated for better access.
8
Pull out approximately 40 cm (15 inches) of labels
and remove the labels from the liner.
30
7
Route the media through the print unit and push it
inwards as far as it will go.
9
Route the liner around the tear bar and back under
the print unit.
