Chapter 4 Media Load
Internal Batch Takeup, cont.
10

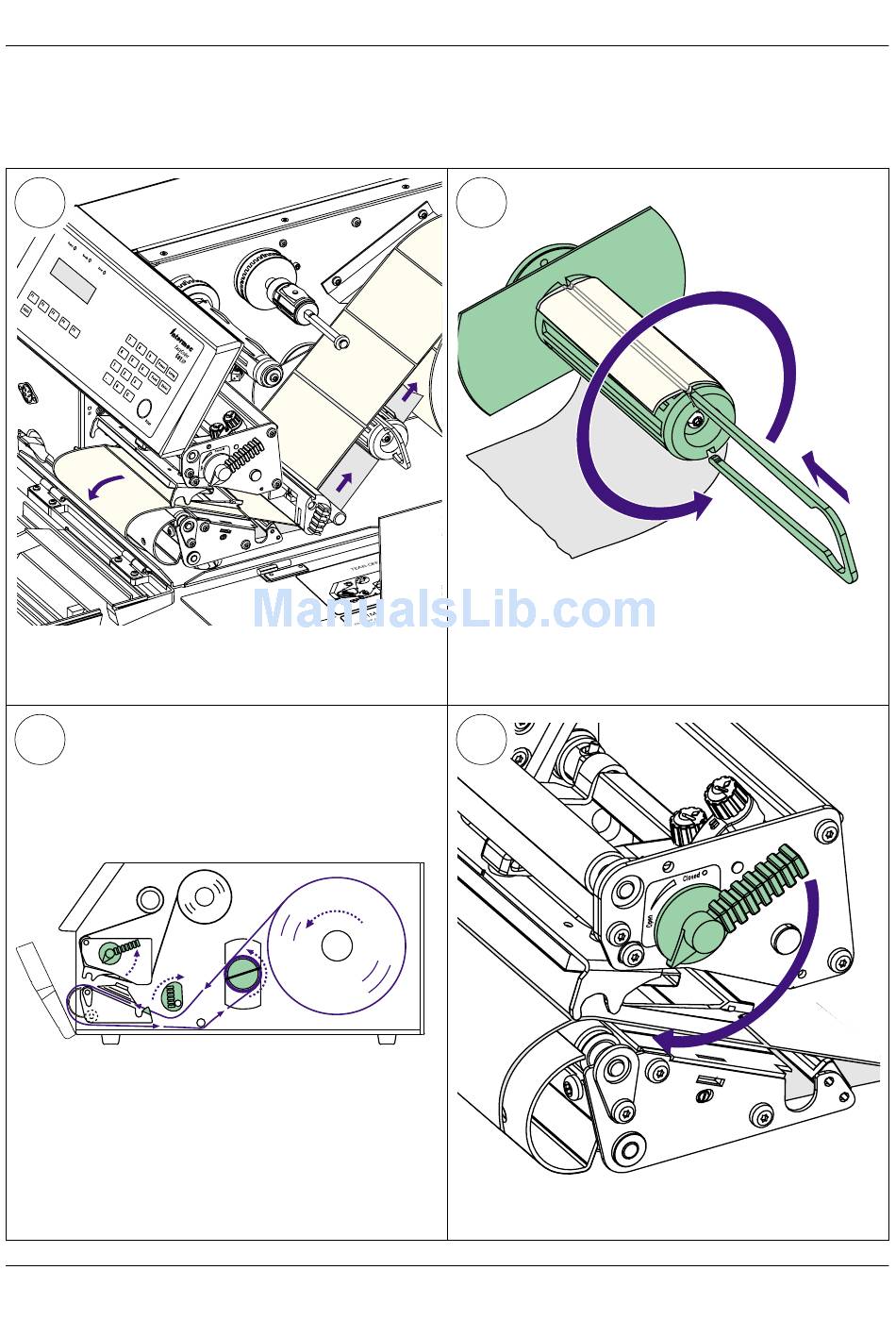

Route the labels around the guide plate and back
under the print unit to the takeup hub.
12
This diagram shows the media path.
36
11
Wind up some of the media on the takeup hub and
secure it with the clip.
13
Turn the printhead lift lever to "Closed" position.
