Output Modes

Punch Mode

The Punch mode is available when the PK-2/PK-5/PK-5 (US 2 HOLES) Punch kit or ZK-3
Z-Fold Kit option is installed in the FN-121/FN-10 Finisher, or when ZK-3 Z-Fold Kit option
is installed in the FN-115 Finisher.
If both PK-2/PK-5/PK-5 (US 2 HOLES) Punch kit and ZK-3 Z-Fold Kit are installed in the
FN-121/FN-10 Finisher, the ZK-3 Z-Fold Kit is used.
When the Punch mode is selected in combination with any of the Primary (Main) tray
output modes, each copied sheet is punched and output to the Primary tray according to
the selected output mode.
❒ Number of holes: PK-2/PK-5 Punch kit; 3 holes only
❒ Hole diameter: 0.315" ± 0.020" (8 mm ± 0.5 mm)

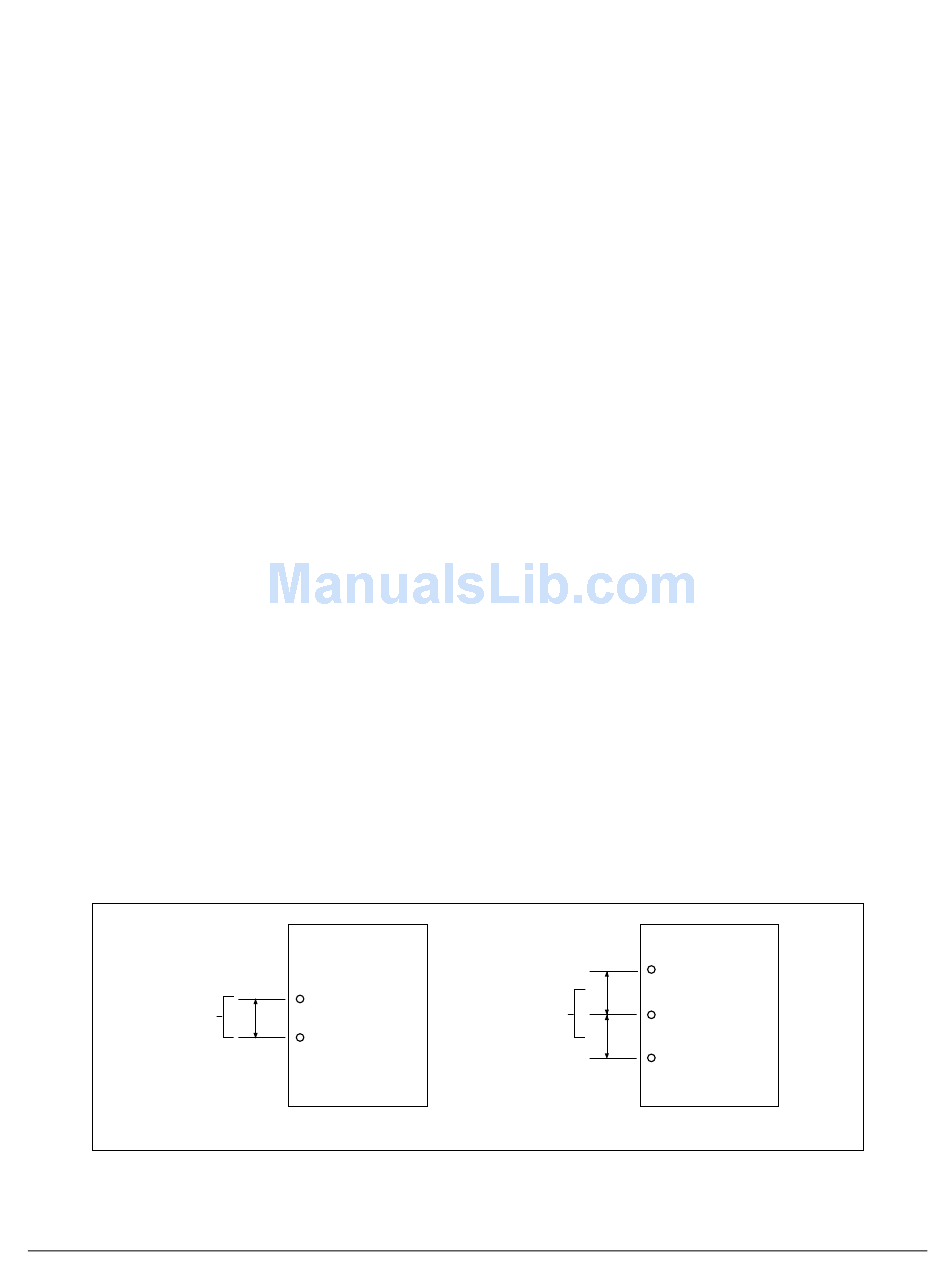

❒ Hole pitch: 2 holes; 2.756" ± 0.020" (70 mm ± 0.5 mm)
3 holes; 4.252" ± 0.020" (108 mm ± 0.5 mm)
❒ Paper size: 2 holes; 11"x17", 8.5"x14", 8.5"x11", 8.5"x11"R, 5.5"x8.5", 5.5"x8.5"R
3 holes; 11"x17", 8.5"x11"
❒ Paper weight: 20 ~ 24 lb (20 lb paper recommended)
Thin paper 16 lb ~ 19 lb
Thick paper 25 lb ~ 45 lb (Some 45 lb paper types may not be punched easily.)
❒ Incompatible Basic Copying Conditions: Using platen glass (available when using Platen store
mode), Folding, Stapling & Folding, Three-Folding, Output modes using secondary tray
❒ Incompatible Special Originals: Mixed Original (8.5"x11"R, 5.5"x8.5" mixed) (3-holes punching
only), Non STD Size
❒ Incompatible Applications: Transparency Interleave
❒ Incompatible with Punch mode using PK-2 Punch kit: Cover Sheet mode, Mixed Original with
APS, Sheet/Cover Insertion, Copy insertion mode in Chapter, Cover sheet mode in Booklet,
Program Job
2.756"
(70 mm)
PK-5 (US 2 HOLES) Punch kit; 2 holes only
ZK-3 Z-Fold Kit; 2 holes / 3 holes user selected
2 holes
4.252"
(108 mm)
3 holes
7-17
