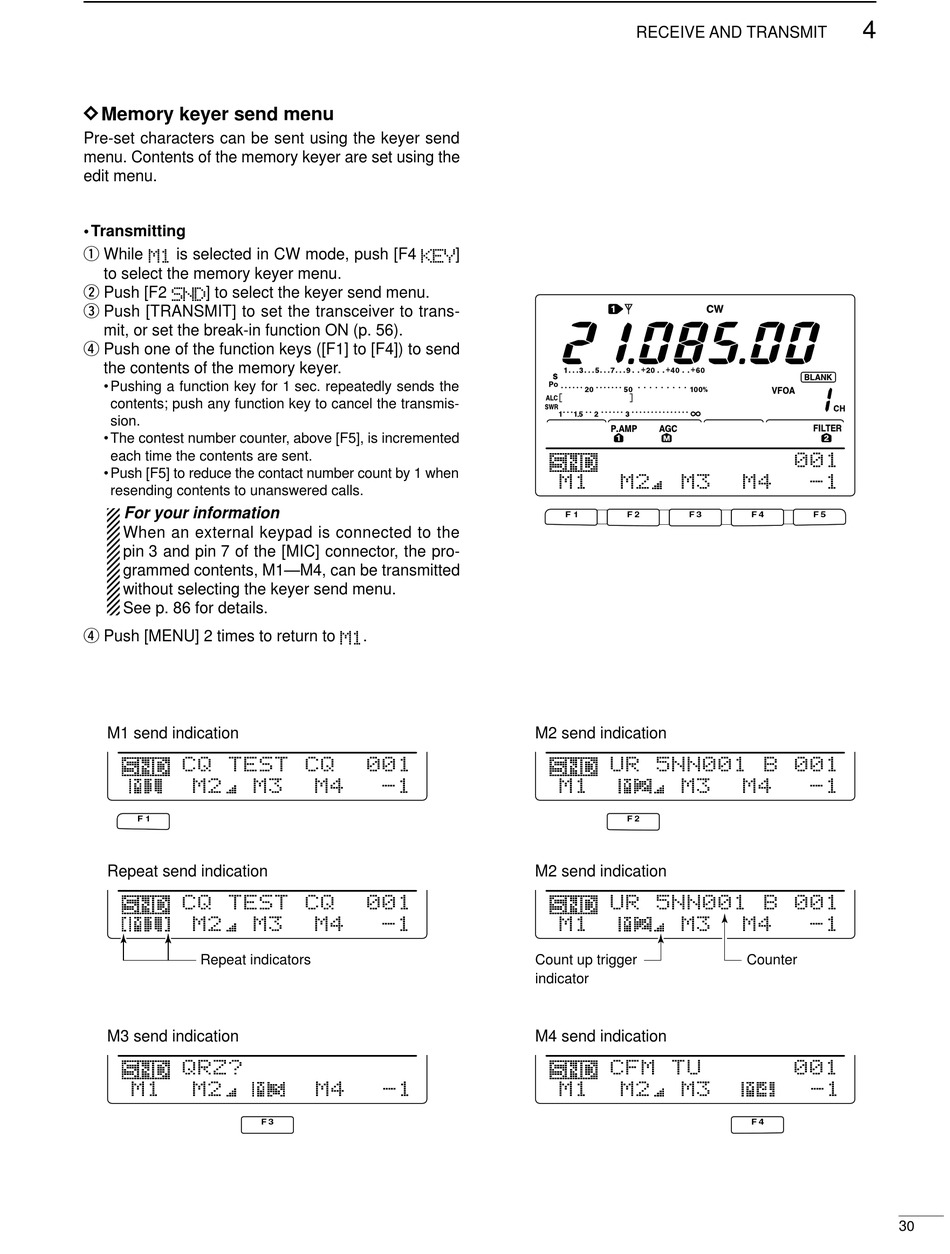

D Memory keyer send menu

Pre-set characters can be sent using the keyer send
menu. Contents of the memory keyer are set using the
edit menu.
• Transmitting
q While M1 is selected in CW mode, push [F4 KEY]
to select the memory keyer menu.
w Push [F2 SND] to select the keyer send menu.
e Push [TRANSMIT] to set the transceiver to trans-
mit, or set the break-in function ON (p. 56).
r Push one of the function keys ([F1] to [F4]) to send
the contents of the memory keyer.
• Pushing a function key for 1 sec. repeatedly sends the
contents; push any function key to cancel the transmis-
sion.
• The contest number counter, above [F5], is incremented
each time the contents are sent.
• Push [F5] to reduce the contact number count by 1 when
resending contents to unanswered calls.
For your information
When an external keypad is connected to the
pin 3 and pin 7 of the [MIC] connector, the pro-
grammed contents, M1—M4, can be transmitted
without selecting the keyer send menu.
See p. 86 for details.
r Push [MENU] 2 times to return to M1.
M1 send indication
C Q T E S T C Q
M 1 M 2 M 3
F 1
Repeat send indication
C Q T E S T C Q
M 1 M 2 M 3
Repeat indicators
M3 send indication
Q R Z ?
M 1 M 2 M 3
F 3
0 0 1
M 4 - 1
0 0 1
M 4 - 1
M 4 - 1
RECEIVE AND TRANSMIT
M 1 M 2 M 3
F 1 F 2 F 3
M2 send indication
U R 5 N N 0 0 1 B 0 0 1
M 1 M 2 M 3
F 2
M2 send indication
U R 5 N N 0 0 1 B 0 0 1
M 1 M 2 M 3
Count up trigger
indicator
M4 send indication
C F M T U
M 1 M 2 M 3
4
0 0 1
M 4 - 1
F 4 F 5
M 4 - 1
M 4 - 1
Counter
0 0 1
M 4 - 1
F 4
