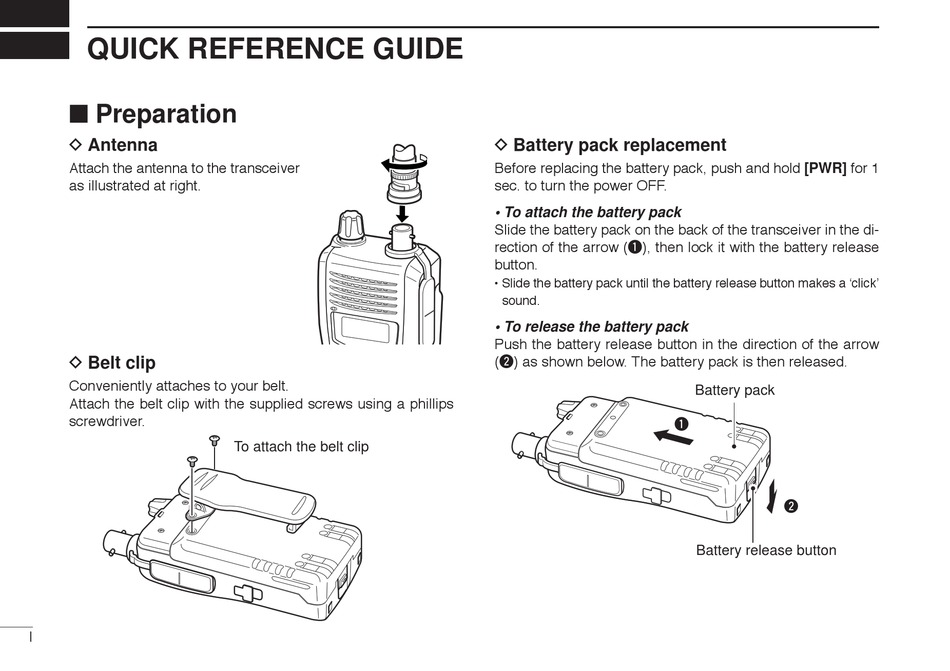

QUICK REFERENCE GUIDE

■ Preparation

D Antenna
Attach the antenna to the transceiver
as illustrated at right.
D Belt clip
Conveniently attaches to your belt.
Attach the belt clip with the supplied screws using a phillips
screwdriver.
I
To attach the belt clip
D Battery pack replacement
Before replacing the battery pack, push and hold [PWR] for 1
sec. to turn the power OFF.
• To attach the battery pack
Slide the battery pack on the back of the transceiver in the di-
rection of the arrow (q), then lock it with the battery release
button.
• Slide the battery pack until the battery release button makes a 'click'
sound.
• To release the battery pack
Push the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
Battery pack
q
w
Battery release button
