CD-ROM Drive

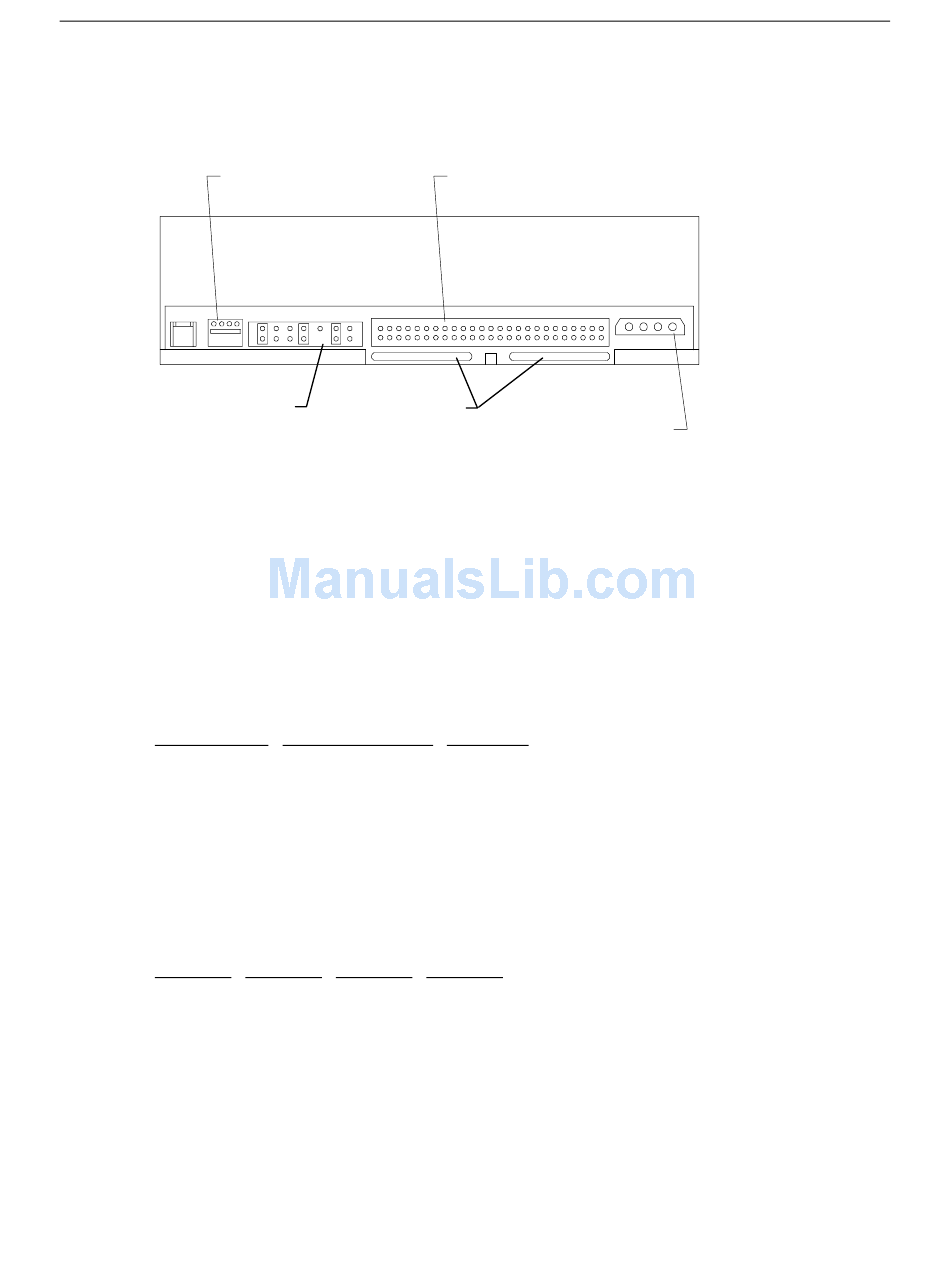

The following figure shows the back of the CD-ROM drive.
Audio Connector
Mode Select
Header
Settings for mode select header, which sets SCSI ID, parity, and other drive functionality are printed on
the CD-ROM drive.
Terminator resistors are installed in the terminator sockets only when active termination is required.
By default, these sockets are empty since termination is provided by the SCSI cable.

Disk Drives

The following disk drives are used in non RAID systems. For information about the RAID drives used
in systems with the internal RAID section, refer to the InterRAID documentation.
Part Number
CDSK111
CDSK094
CDSK098
CDSK123
SCSI ID selection is defined in the following table. Each disk drive has a connector which uses
jumpers to set the SCSI ID. Where Seagate uses ID1, ID2, and ID4 to identify how to set the SCSI ID,
Conner uses 0E1, 0E2, and 0E3.
SCSI ID
0
1
2
3
4
5
6
Terminator
Sockets
Vendor Number
Seagate ST51080N
Seagate ST32155N
Conner CFP4207S
Seagate ST34371N
ID1/0E1 ID2/0E2
Off Off
On Off
Off On
On On
Off Off
On Off
Off On
SCSI Connector
Power
Connector
Capacity
1 GB
2 GB
4 GB
4 GB
ID4/0E3
Off
Off
Off
Off
On
On
On
