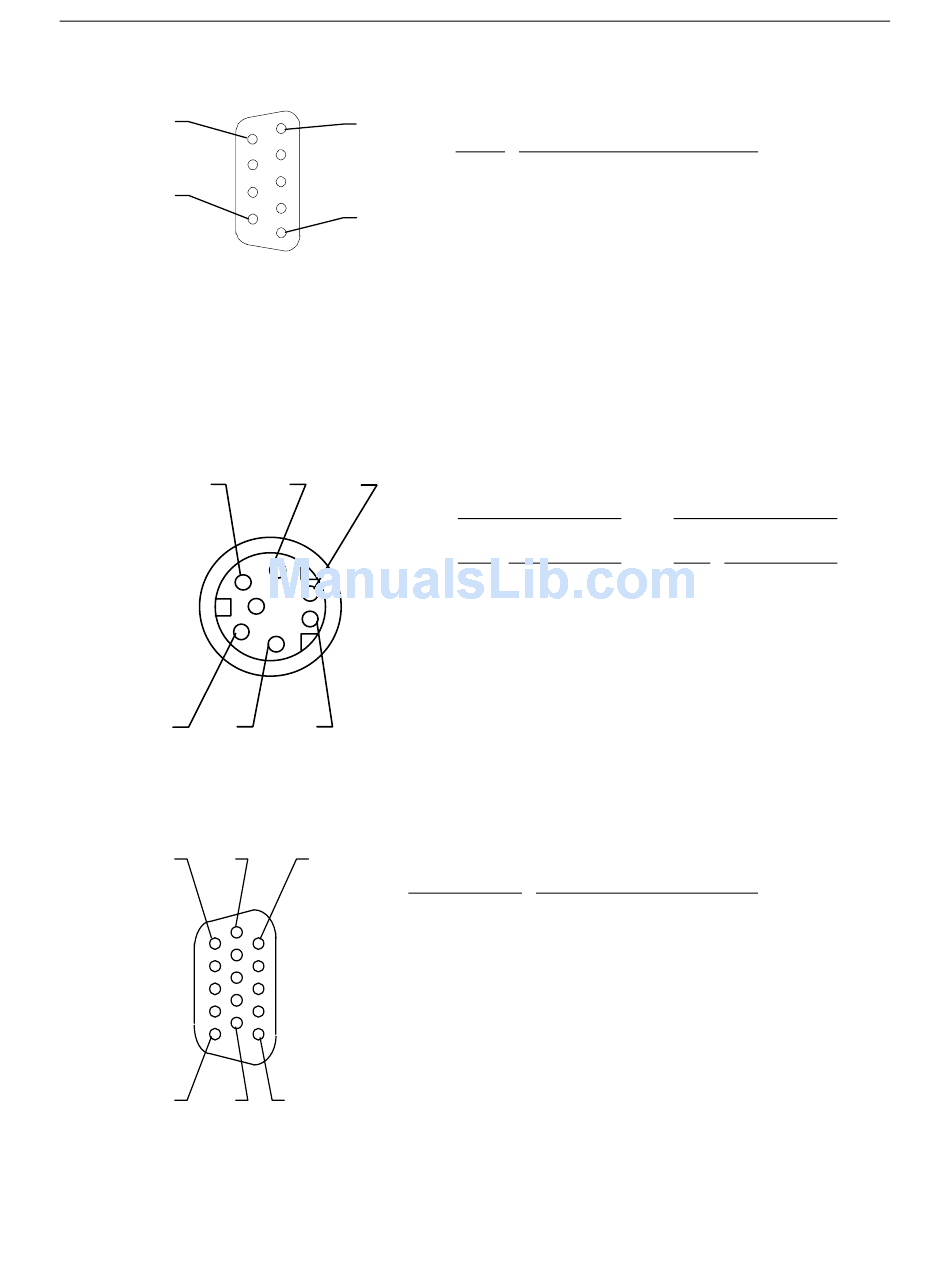

Serial (COM) Pinout

6
9

Mouse and Keyboard Pinout

2
1 3

Video Pinout

5 10
1 6
1
5
4 6
5
15
Pin
1
2
3
4
5, 6, 7, 8, 10
9
11
12
11
13
14
15
Pin Signal
1 DCD - Data Carrier Detect
2 RD - Receive Data
3 TD - Transmit Data
4 DTR - Data Terminal Ready
5 Ground
6 DSR - Data Set Ready
7 RTS - Request to Send
8 CTS - Clear to Send
9 RI - Ring Indicator
Mouse
Pin Signal
1 MDATA
2 Reserved
3 Ground
4 Fused VCC -
+5V
5 MCLK
6 Reserved
Signal
R - Red
G - Green
B - Blue
MID2 - Monitor ID2
Ground
No Connect
MID0 - Monitor ID0
MID1 - Monitor ID1
HSYNC - Horizontal Sync
VSYNC - Vertical Sync
MID3 - Monitor ID3
Keyboard
Pin Signal
1 KDATA
2 Reserved
3 Ground
4 Fused VCC -
+5V
5 KCLK
6 Reserved
