P9 Pinout

Pin Signal
1 +5V
2 Return
3 Return
4 +12V

Power Distribution Board (MPCBD13)

The power distribution board is only used in systems with the internal RAID section. These systems
include the internal RAID section, and require special power signal routing.

Cable Connectors

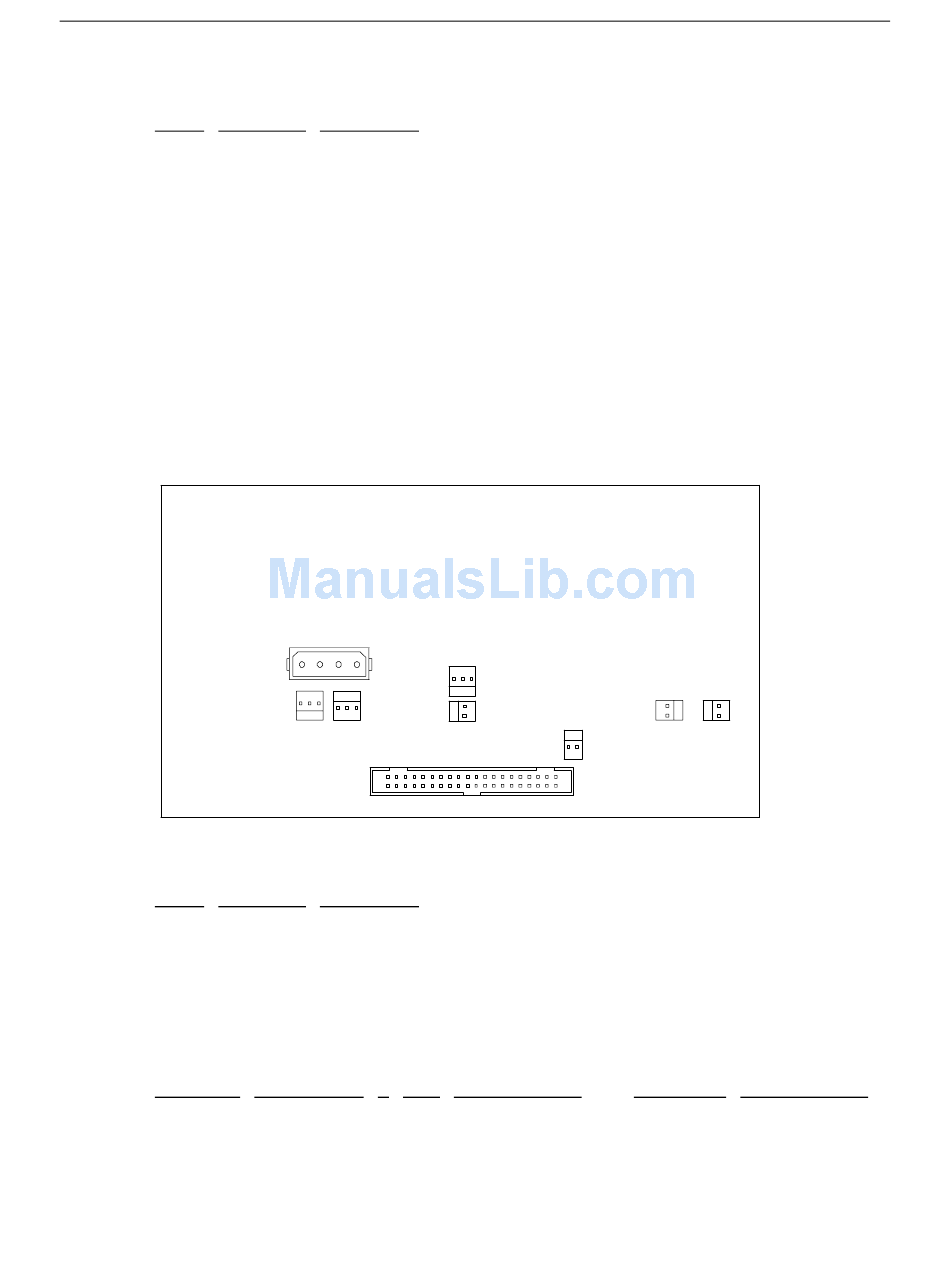

The following figure shows the MPCBD13 cable connectors.
J10, Power
Pin Signal
1 +12V
2 Return
3 Return
4 +5V
J13, RAID Sensor
Pin
1,2,3,4
6
8
10
Wire Color
Red
Black
Black
Yellow
J10
J19
J13
Wire Color
Yellow
Black
Black
Red
Signal Pin
+5.1V 22
Dskbad 24
Dskgood 26
Alarm 30
J18
J20
J16
Signal
Not used
Not used
Alarm Reset
Drive 1 Status
J17 J40
Pin Signal
34 Drive 3 Status
36 Drive 4 Status
38 Drive 5 Status
40 Drive 6 Status
69
