CDSK111 1 GB

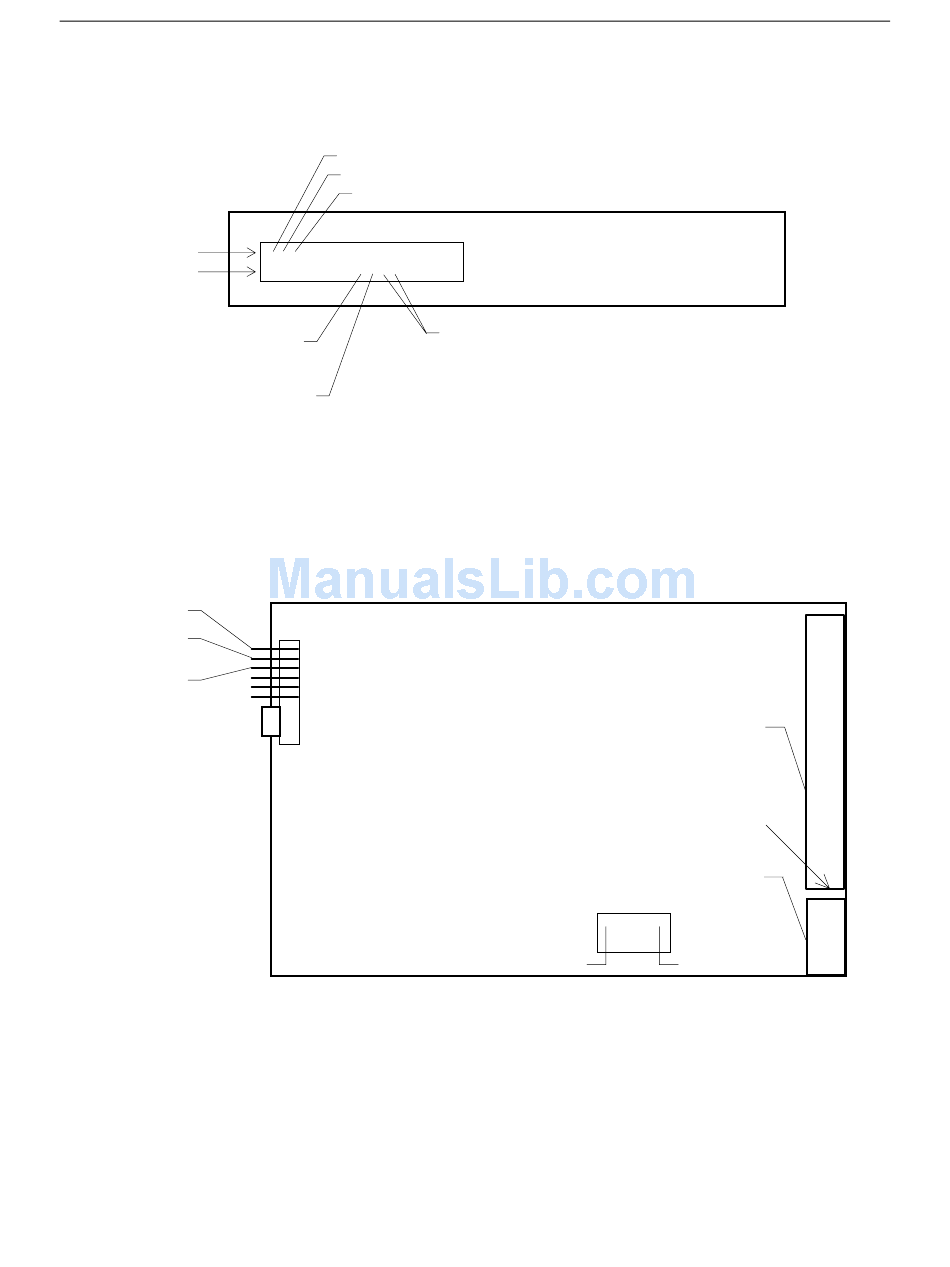

The following figure shows the jumper connector J8 on the back of the disk drive.
Pin 2
Pin 1
SCSI ID selection uses the ID1, ID2, and ID4 jumpers on connector J8. To disable SCSI termination,
install the Term Disable jumper and remove both Term Power jumpers from connector J8. To enable
SCSI termination, remove the Term Disable jumper and install both Term Power jumpers onto J8.

CDSK094 2 GB

The following figure shows the jumper connectors J6 and J2 on the disk drive.
ID1
ID2
ID4
SCSI ID selection uses the ID1, ID2, and ID4 jumpers on connector J6. To disable SCSI termination,
remove the TE jumper from connector J2.
ID1
ID2
ID4
o o o o o o
o
o o o o o o o o o o
o o o o o o o o o o o o o o o o o
Parity
Enable
Term
Disable
J6
J8
Term Power
J2
oooooooo
oooooooo
TE
SCSI
Connector
Pin 1
Power
Connector
TP
