Riser Card - Intergraph TD-x10 System Reference Manual

24
SCSI
Cable
3. Pull the drive forward and lift it out of the base unit, then set the drive on a flat antistatic surface.
4. Remove the bracket from the disk drive.
5. Secure the new disk drive to the bracket.
6. Install the disk drive into the base unit and secure it to the chassis using the chassis screw removed
previously.
7. Connect the SCSI and power cables to the disk drive.
8. Close the base unit.

Riser Card

To remove the riser card:
1. Remove the PCI access panel.
2. Remove the PCI boards connected to the riser card.
3. If ISA option boards are installed, disconnect the SCSI cable and power cables from the top of the

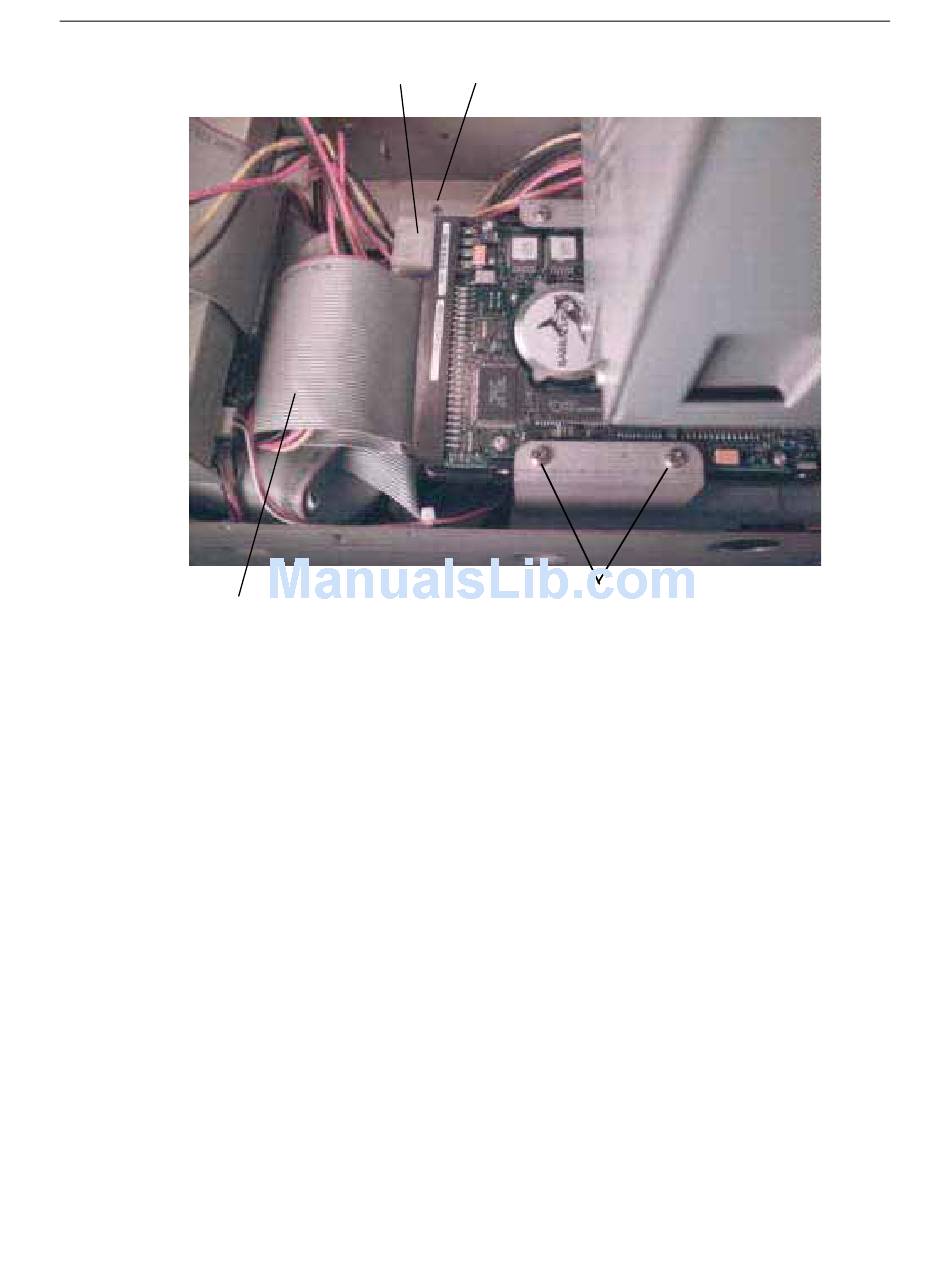

riser card, and remove the ISA I/O lock bracket. Refer to the following figure.
Power Chassis
Cable Screw
Bracket
Screws
