Peripheral
Brace
Riser Card
To remove the PCI access panel:
1.
Power off the base unit and remove the top cover and side panel. Lay the base unit on the right
side.
2.

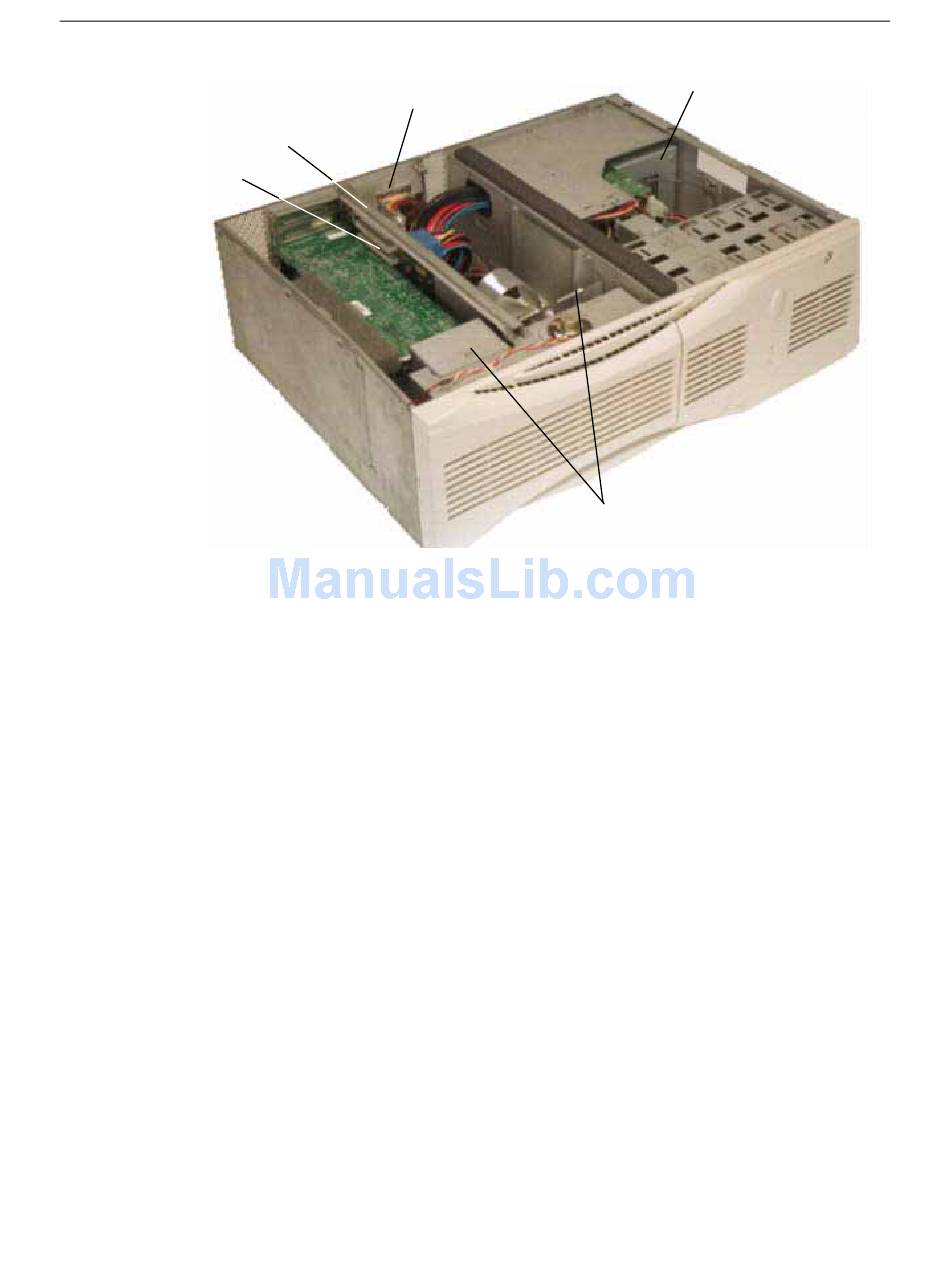

Remove the two screws at the bottom of the unit and the screw behind the PCI access panel as
shown in the following figure.
3.
Slide the PCI access panel to the back of the base unit and remove it.
External SCSI
Connector
Power Supply
Option Card Guides
