22

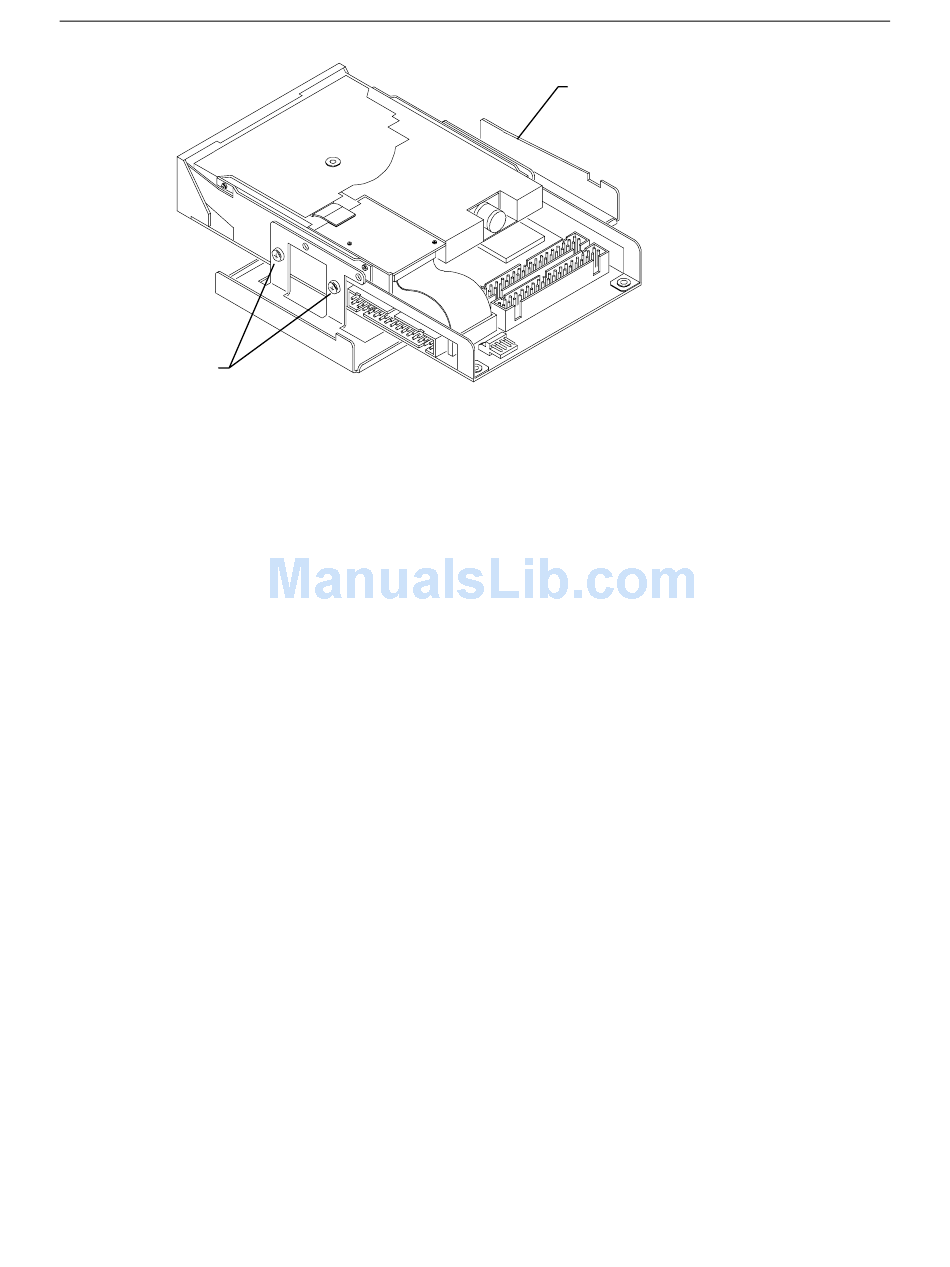

Screws
6.
Secure the replacement drive to the support bracket using the screws removed previously.
7.
Connect the cables to the drive.
8.
Install the drive into the base unit, and secure it using the screws removed previously.
9.
Replace the CD-ROM drive and secure it to the chassis.
10. Close the base unit.

RAID Section

The RAID section is used in TDZ-610 workstations and some InterServe 605 servers.
To replace the RAID section:
1.
Before opening the base unit, remove the RAID disk drives from the slots in the RAID section.
Note the order in which the drives are installed.
2.
When opening the base unit, remove both left and right side panels.
3.
Disconnect the cables attached to the RAID section. Keep track of where each cable was
connected. Refer to the following figure.
4.
Remove the screws from the top and both sides of the RAID section. Refer to the following figure.
Support
Bracket
