3. From inside the chassis, push the back of the floppy drive until the bezel clears the front
of the chassis, and slide the device out.
4. Slide the new floppy drive into the chassis and align the mounting holes.
5. Install the two mounting screws.
6. Connect the data cable and the power cable.

CD-ROM Drive

The procedure for replacing a SCSI or an EIDE CD-ROM drive is the same, except for data
cables and jumper settings.
To replace the CD-ROM drive:
1. Disconnect the power cable and data cable from the CD-ROM drive.
2. Remove the screws that secure the CD-ROM drive to the chassis. See the previous
figure.
3. From inside the chassis, push the back of the CD-ROM until the bezel clears the front of
the chassis, then slide the device out.
4. Remove the mounting guide from the right side of the CD-ROM. See the following
figure.
5. Note the jumper settings on the back of the CD-ROM.

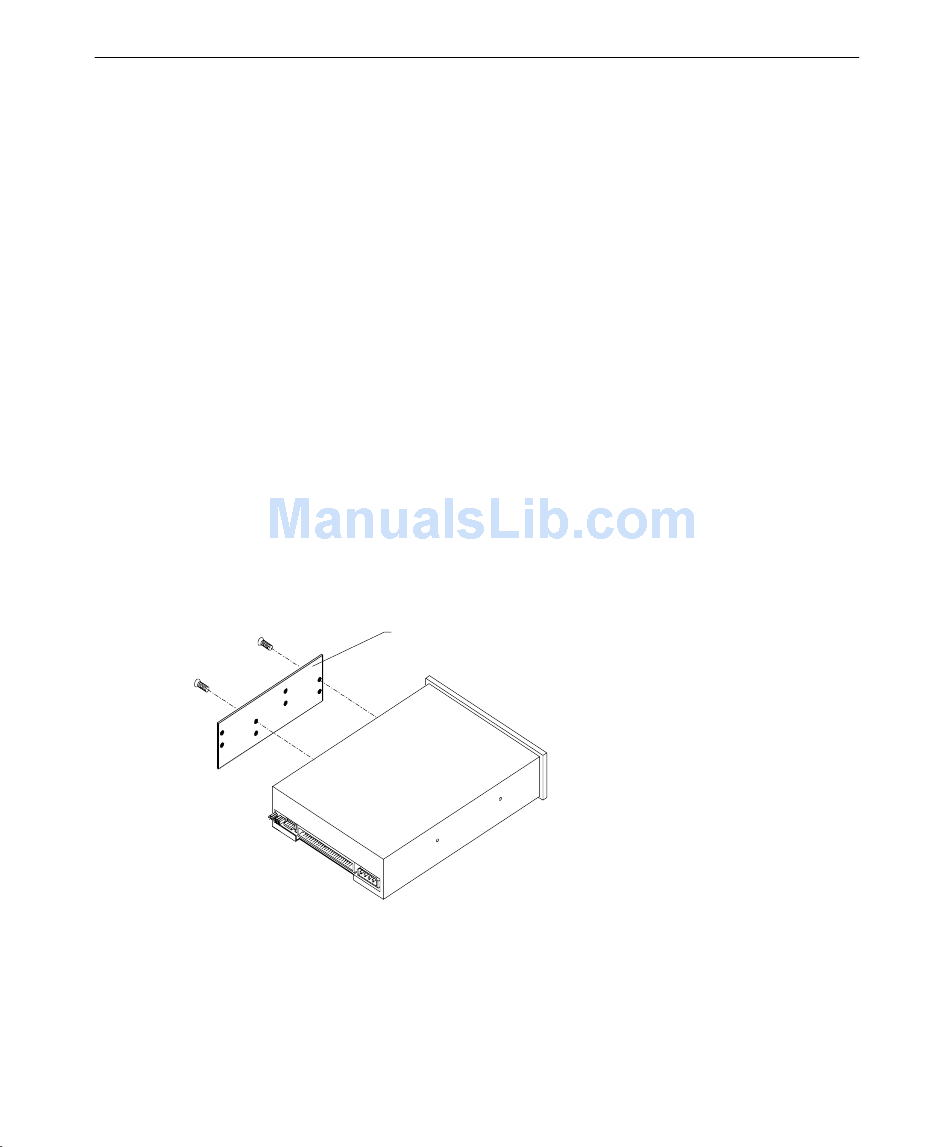

Mounting guide
