SCSI Termination Card
4. Connect the internal SCSI cable to the new termination card.
5. Insert the new card into the chassis and mount the external SCSI port to the back panel using the
screws removed previously.
6. Close the base unit and connect the external SCSI cable to the port.

Riser Card

To replace the desktop riser card:
1. Remove the floppy disk drive as described previously in step 2 of "Floppy Disk Drive or Combo
Drive" leaving the cables attached.
2. Remove the system hard disk drive as described previously in step 2 of "System Hard Disk Drive"
leaving the cables attached.
3. Remove all boards connected to the riser card. Note the position of each board installed in the ISA
slots. To remove the ISA boards in the ISA I/O panel, remove the I/O lock bracket (note
orientation) as shown in the following figure.

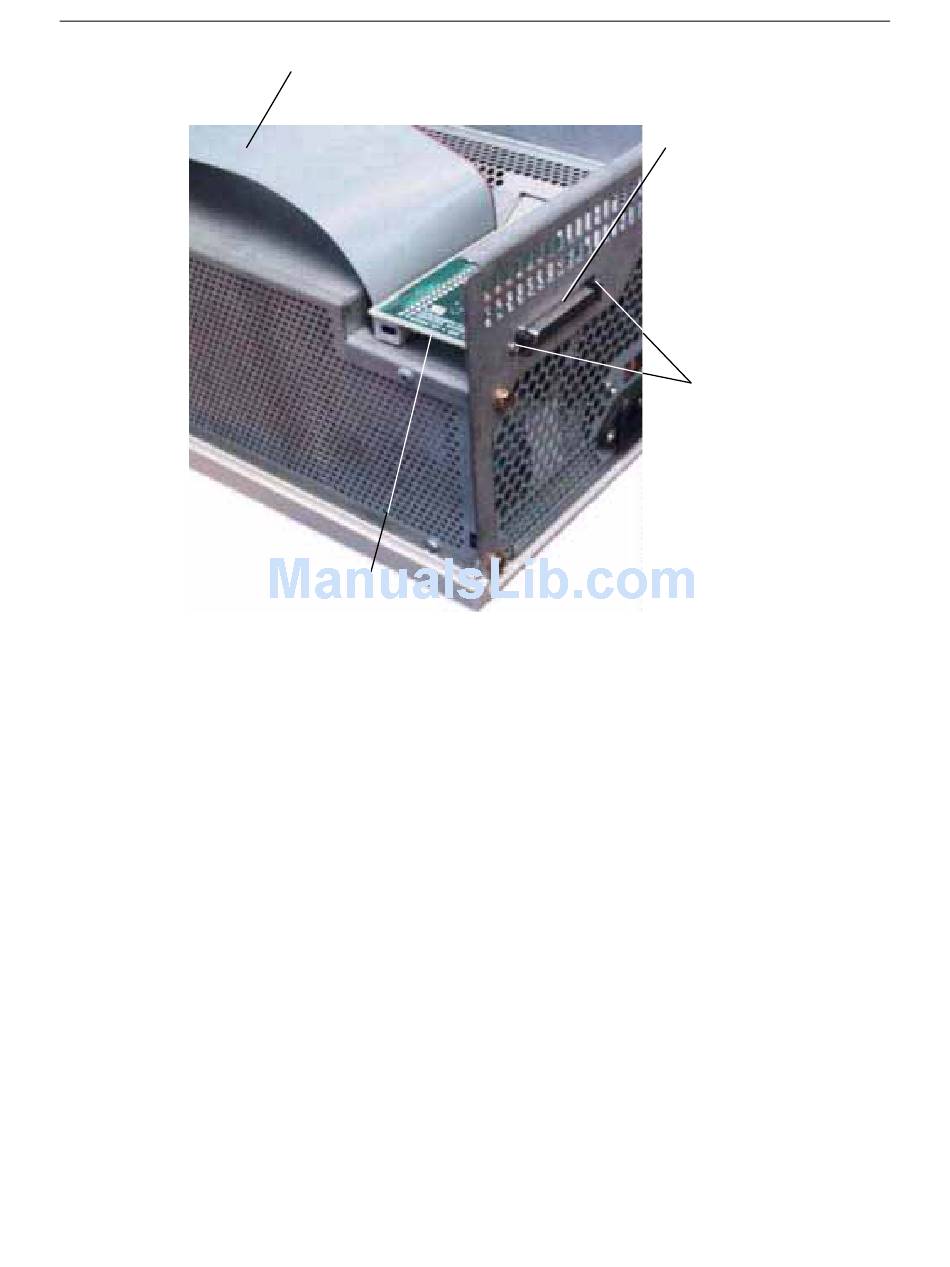

Internal SCSI
Cable
External
SCSI Port
Screws
13
