11. If installing a non-Intergraph CD-ROM drive, connect the audio cable delivered with the new CD-
ROM drive to the connectors on the drive and the system board.
12. Replace the floppy disk drive or combo drive.

System Hard Disk Drive

The system hard disk drive is located between the power supply and the riser card.
To replace the system hard disk drive:
1. Disconnect the SCSI and power cables from the hard disk drive.
2. Remove the drive and its support bracket; then set the drive on a flat antistatic surface.
3. Remove the screws securing the hard disk drive to the bracket. Leave the grommets in the bracket.

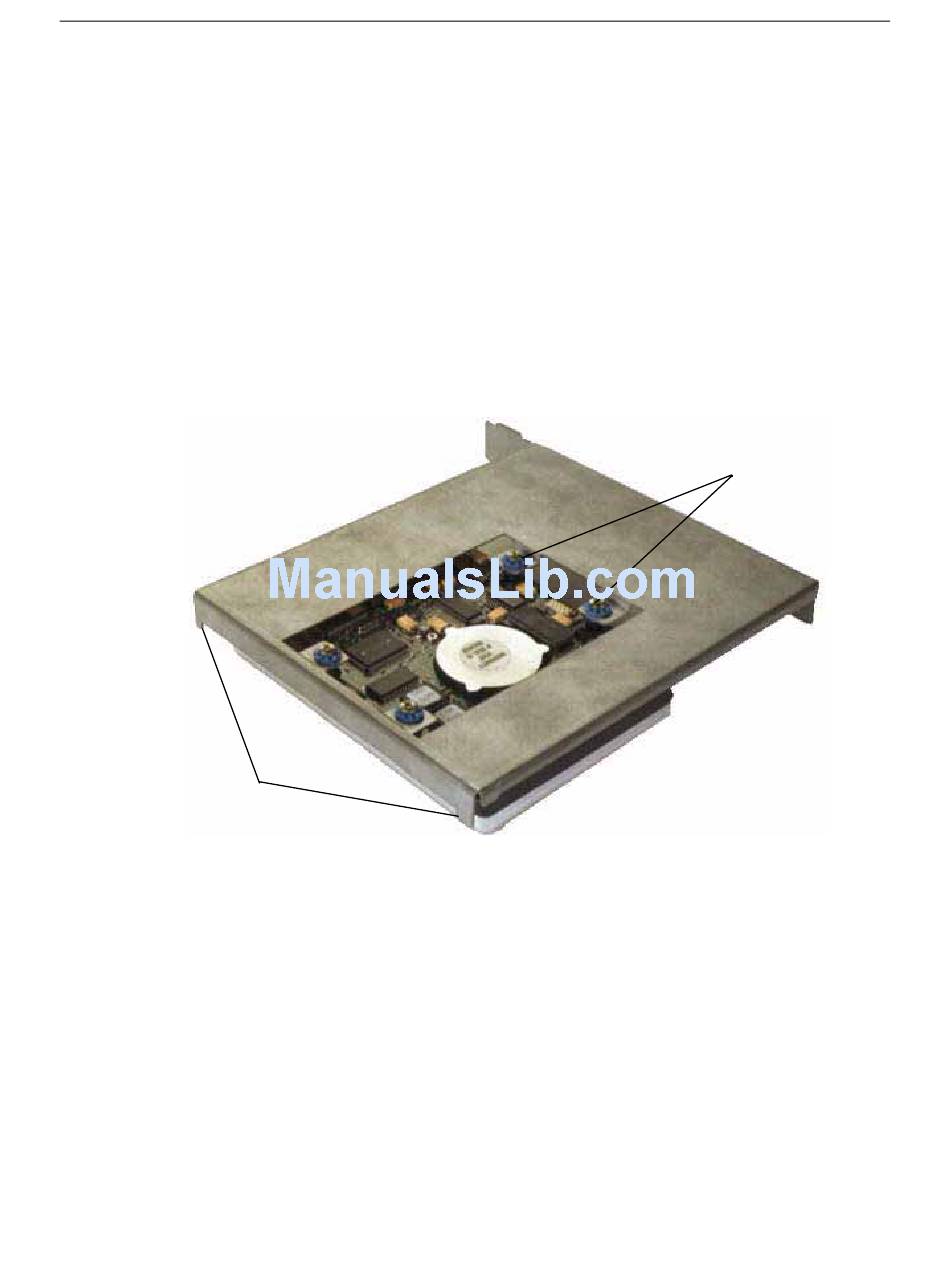

Refer to the following figure.
Tabs
4. Disable SCSI termination and set the SCSI ID to the same SCSI ID as the previous hard disk drive.
Refer to the documentation delivered with the drive for instructions.
5. Secure the new drive to the support bracket using the screws removed previously.
6. Attach the cables to the new drive. The SCSI cable is keyed to ensure proper insertion, so that the
red stripe (pin 1) is adjacent to the power connector.
7. Install the drive and bracket into the base unit, inserting the tabs into the slots.
11
Screws
