Power
Cables
RAID SCSI
5.
Slide the RAID section out of the base unit.
6.
Slide the new RAID section into the base unit.
7.
Secure the RAID section using the eight screws removed previously.
8.
Connect the cables to the RAID section.
9.
After closing the base unit, install the RAID disk drives into the same slots in the RAID section
from which they were removed.
System Hard Disk Drive
To replace the system hard disk drive:
1.

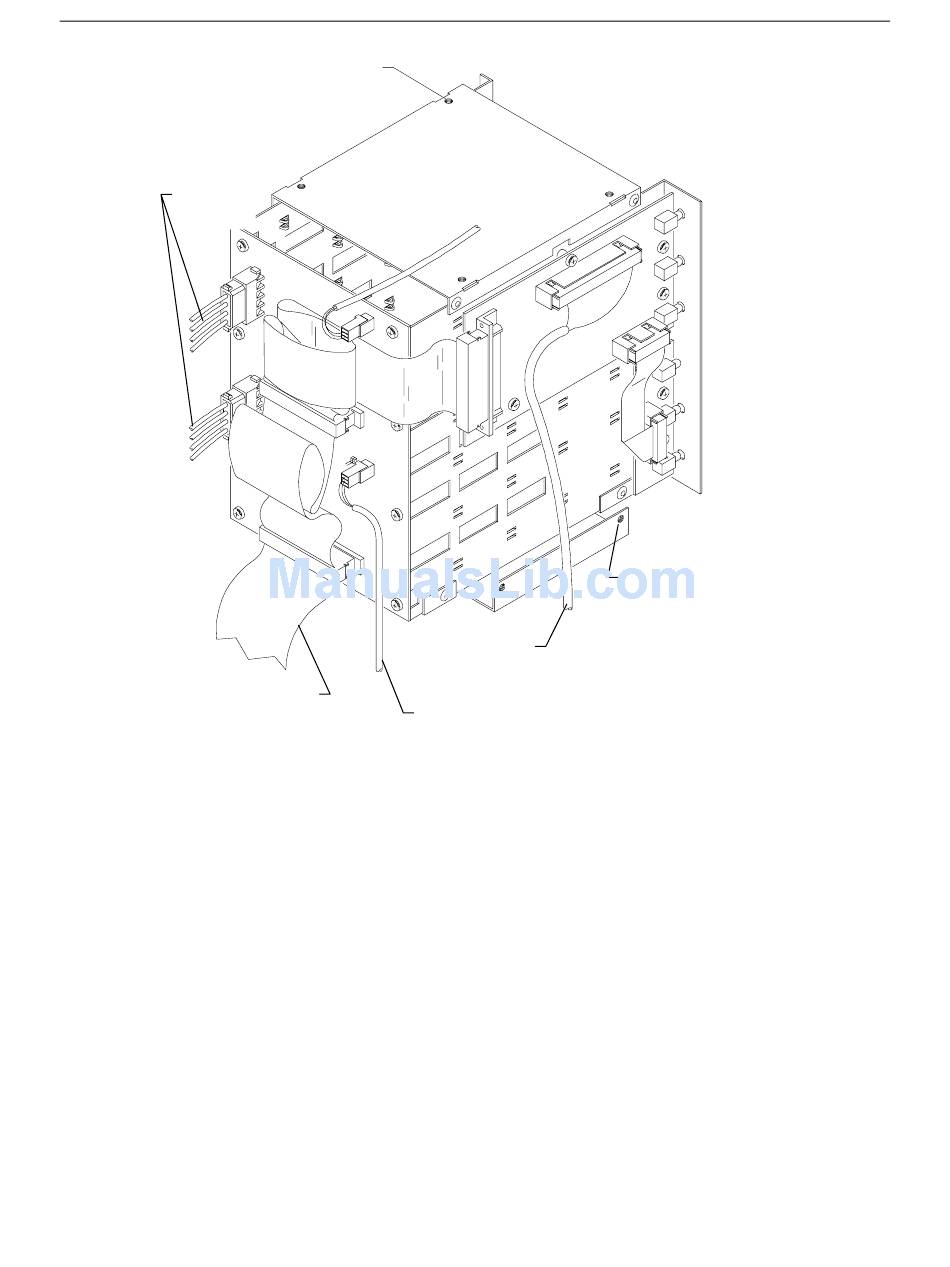

Disconnect the cables and remove the bracket screws from the hard disk drive, as shown in the
following figure.
2.
Remove the chassis screw shown in the following figure.
Screws (4)
Cable
Sensor
Cable
Drive Installed
Cable
Screws (2
each side)
23
