Power Cable
Connector
4.

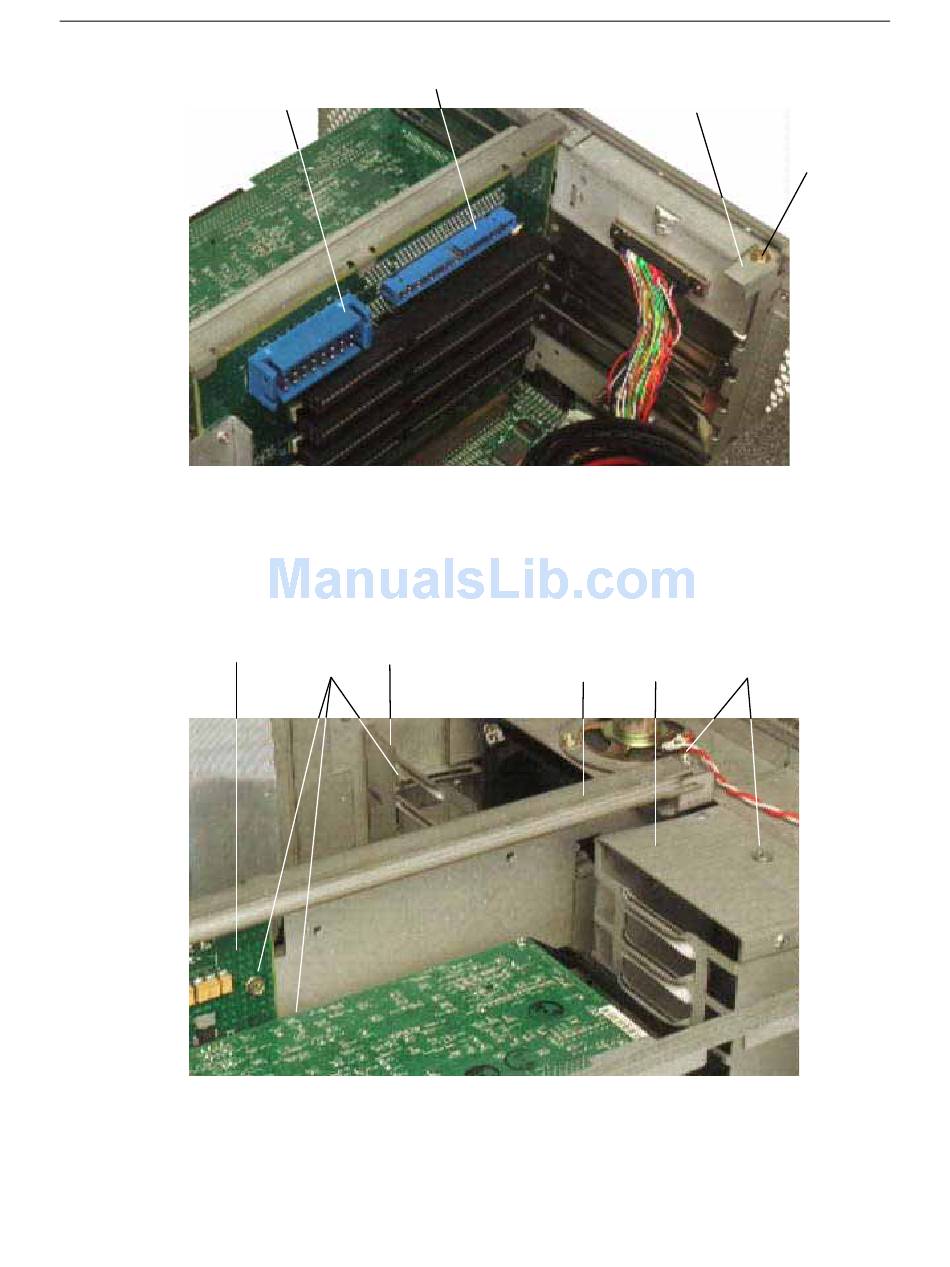

Remove the screw on the pivoting ISA board guide as shown in the following figure.
5.
Remove the ISA boards connected to the riser card. Note the position of each board in the ISA
slots.
6.
Remove the screws shown in the following figure from the peripheral brace. Slide the peripheral
brace to the back of the base unit and remove it.
7.
Remove the screw for the air baffle as shown in the following figure; then remove the air baffle.
Riser
Screws
Card
8.
Disengage the riser card from the system board, and remove the card from the base unit.
To install a new riser card:
1.
Insert the riser card into its system board slot, pushing firmly over the center of the PCI connectors
to ensure it seats completely.
SCSI Cable
Connector
ISA Board
Peripheral
Guide
Brace
ISA I/O Lock
Bracket
Screws
Air Baffle
25
Screw
