20
CD-ROM
Drive
Audio
Cable
3.

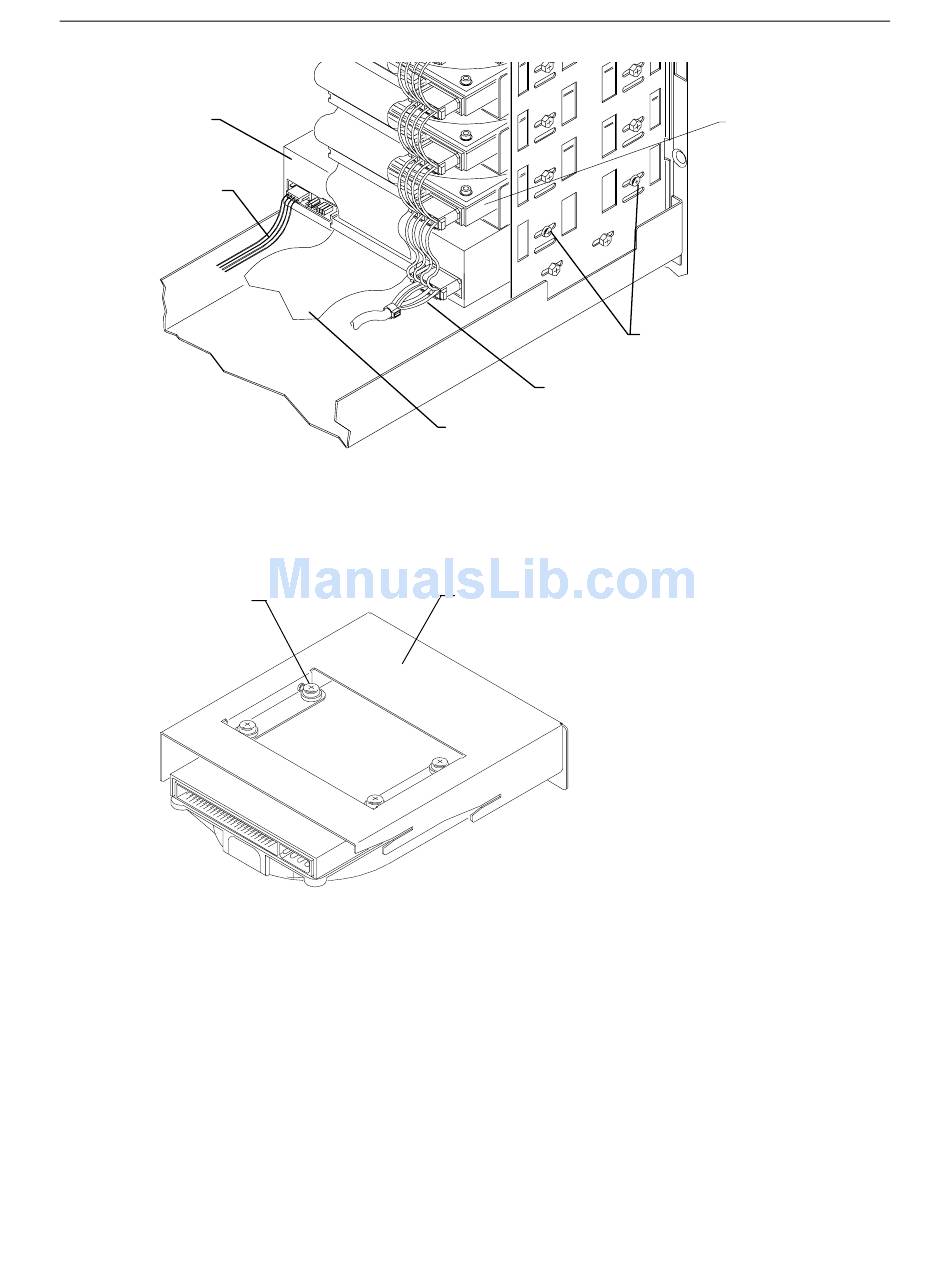

Remove the screws from both sides of the SCSI drive.
4.
Slide the SCSI drive out of the front of the base unit.
5.
If replacing a disk drive (located above the CD-ROM drive), remove the bracket from the drive.
Refer to the following figure.
Screw
6.
Disable SCSI termination and set the SCSI ID on the back of the drive to the same ID as the drive
being replaced. If necessary, refer to the documentation delivered with the SCSI drive for
instructions.
7.
If installing a hard disk drive, attach the drive to the bracket.
8.
Insert the new SCSI drive through the front panel.
9.
Secure the SCSI drive using the screws removed previously.
10. Connect the SCSI cable, power cable, and audio cable (CD-ROM drive only). The SCSI cable red
stripe (pin 1) must be adjacent to the power connector.
NOTE
If installing a non-Intergraph CD-ROM drive, use the audio cable delivered with the new CD-ROM drive.
11. Close the base unit.
Power Cable
SCSI Cable
Slide
Bracket
Disk
Drive
Screws
