Cable Connectors
The following figure shows the internal connector locations. Verify Pin 1 location for each connector
on the system board.
NOTE
For the power connectors, refer to "Power Supply Information" in this chapter.

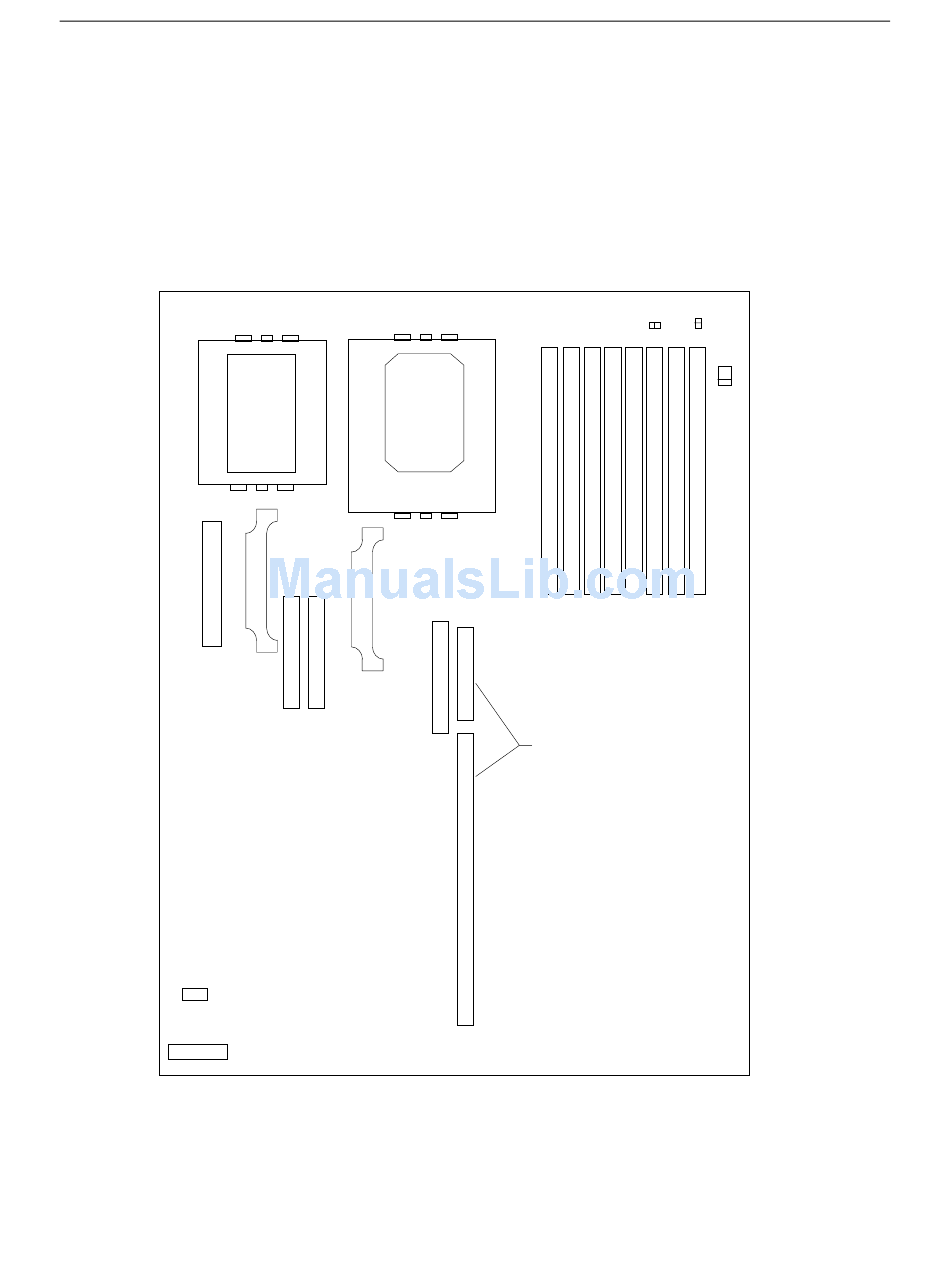

The following figure shows the location of the cable and jumper connectors. The CPU, VRM, memory
sockets, and riser card connectors are provided for reference.
CPU 0
SCSI -
J43
ISA Bus -
Audio -
MIDI - J17
CPU 1
VRM 0
VRM 1
Floppy -
J30
ISA Bus -
J32
J33
J22
J74
J71
J68
Memory Sockets
Riser Card
Connectors
55
