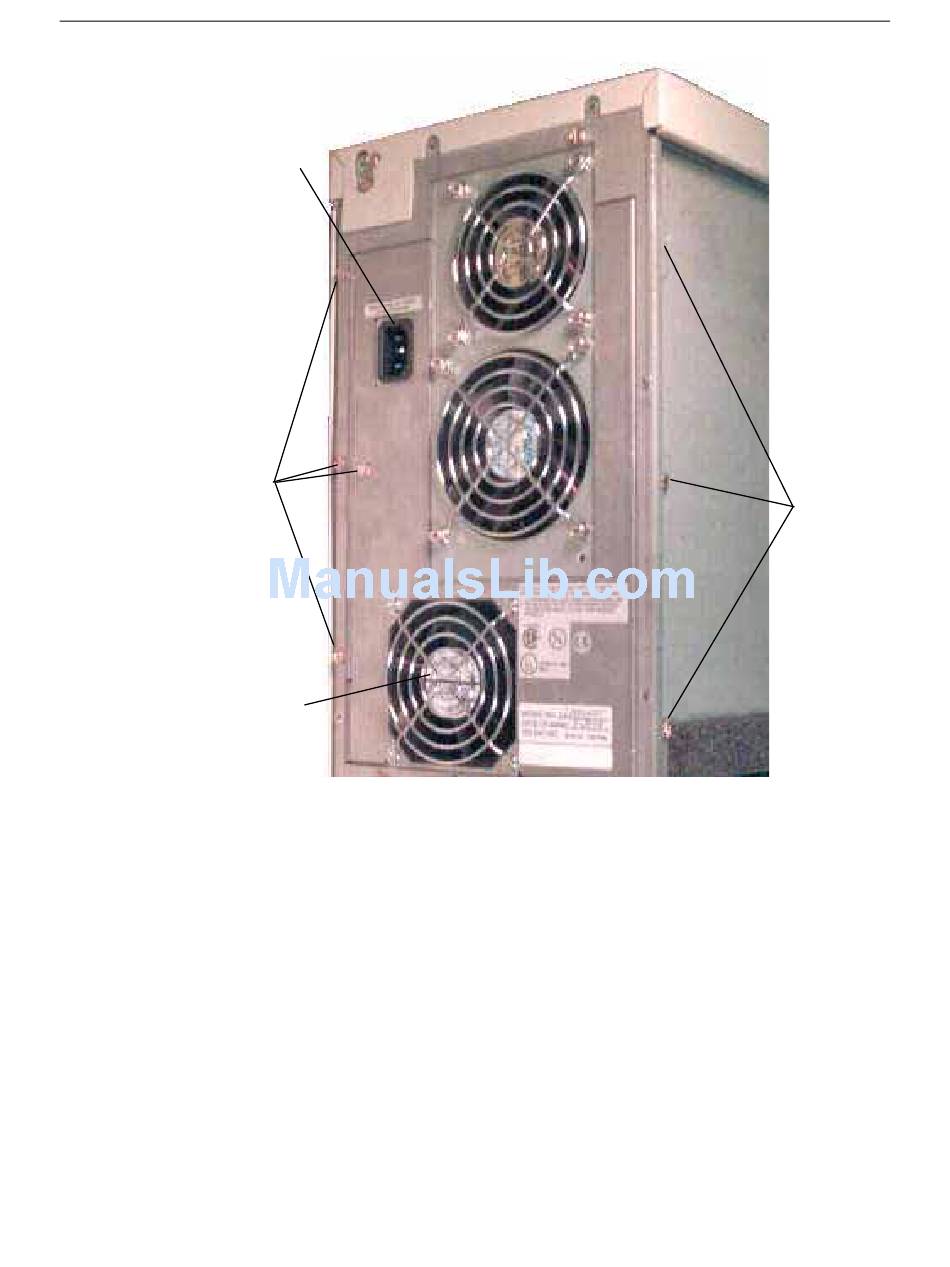

30
Receptacle
Screws
System Hard Disk
Drive Fan
3.
Disconnect the fan power cable from the system board.
4.
Remove the fan from the back panel.
5.
Attach the new fan to the back panel.
6.
Connect the fan power cable to the system board.
7.
Replace the back and side panels and the top cover
8.
Close the base unit.
Option Board Fans
To replace the option board fans:
1.
Remove the peripheral brace.
2.
Disconnect the power cables from the system board.
3.
The option board fans are removed as a single, self-contained assembly. Remove the fan assembly
screws shown in the following figure; then remove the fan assembly.
AC
Screws
