6 Riser Cards

This chapter describes the riser cards for the desktop and deskside systems.

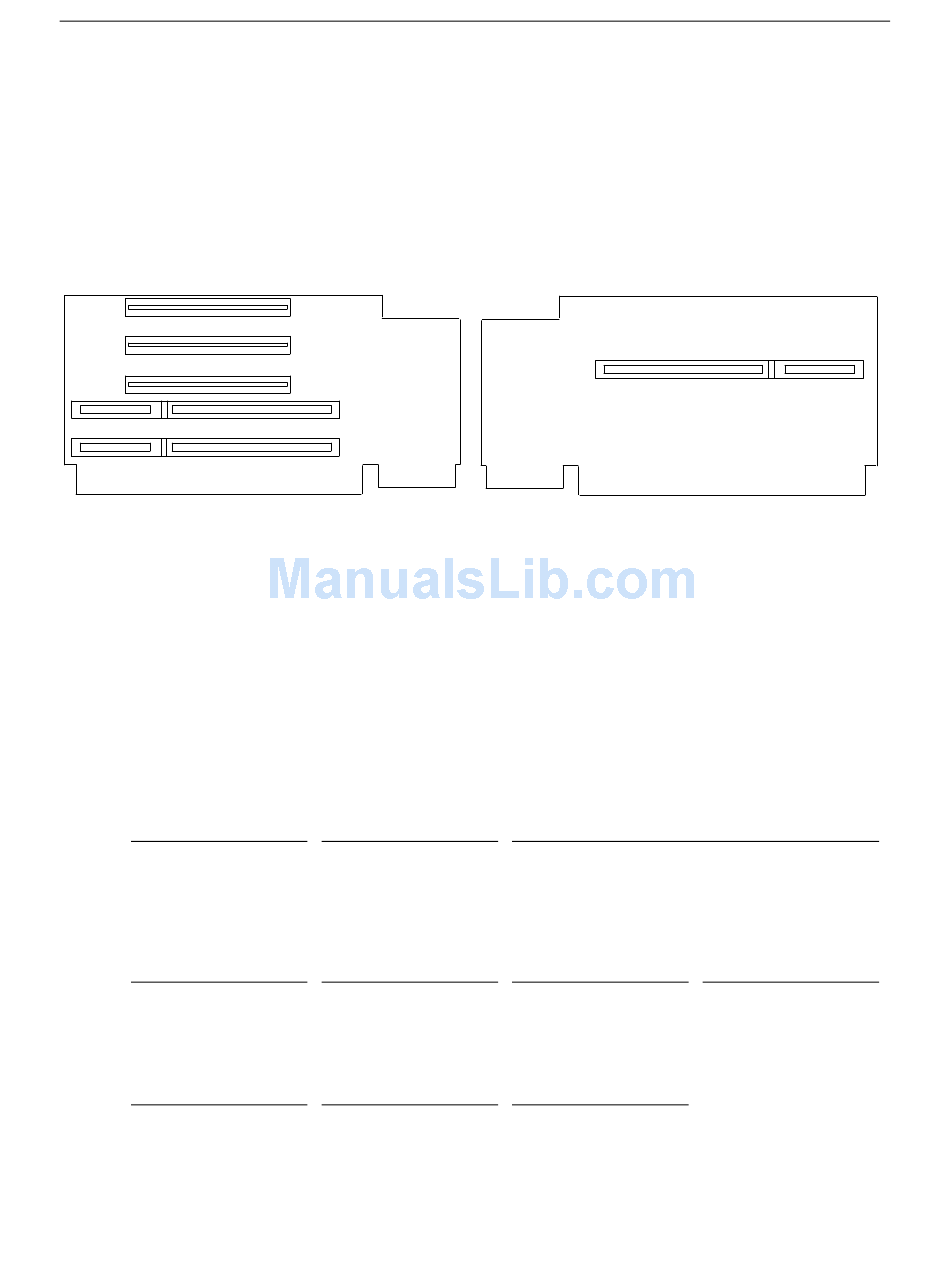

Desktop Riser Card (MSMT345)

Side One
PCI 1
PCI 2
PCI 3

Expansion Slots

The riser card has three PCI slots and three ISA slots. All PCI slots are on the primary PCI bus,
supported by the PCI bridge on the system board.

Graphics Card Slot Assignments

Graphics card are installed in specific PCI slots on the riser card. The following chart specifies the
slots where graphics boards are located.
NOTE Systems with on-board graphics use G95 accelerator on the system board, rather than an installed PCI
card.
Millennium II
Dual Screen (DS)
Slot 2
Slot 3 Millennium II card
(second screen)
Intense 3D (I3D)
Slot 1
Slot 2 I3D card
Slot 3
Z10
Slot 1
Slot 2 Z10 card
Slot 3
ISA 2
ISA 3
Millennium II
A la Carte
Millennium II card
I3D, DS
I3D card
I3D card
Z10, DS
Z10 card
Z10 card
Side Two
ISA 1
Millennium II
A la Carte, DS
Millennium II card
(first screen)
Millennium II card
(second screen)
I3D with Geometry (G)
Geometry accelerator
I3D card
Z10 with Texture
Z10 card
Texture card
63
I3D-G, DS
Geometry accelerator
I3D card
I3D card
