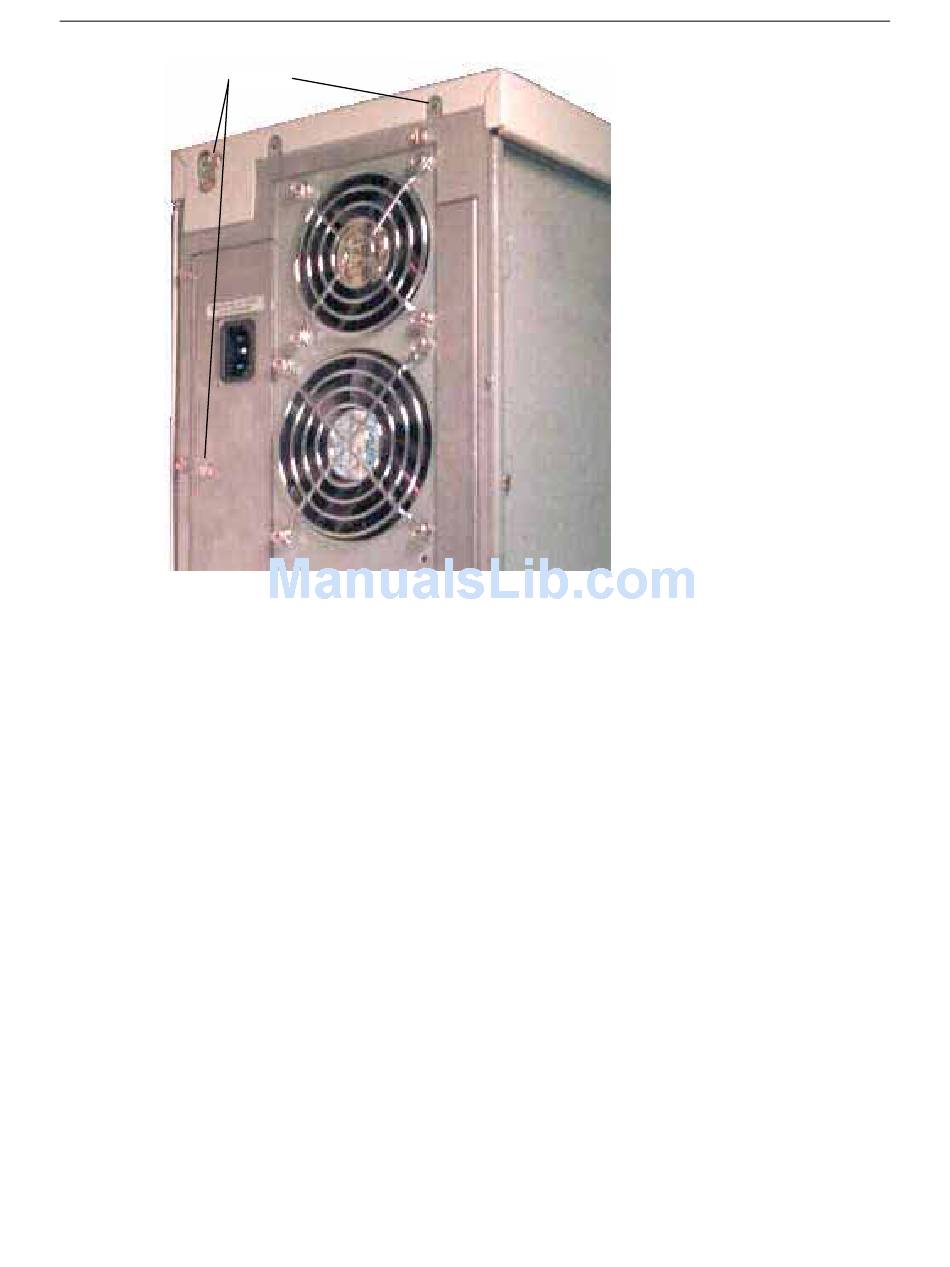

Screws
5.
Push the power supply out the side of the base unit.
6.
Remove the power switch cable and grounding wire from the chassis.
7.
Remove the new power supply from its packaging. On a desktop system, set the AC voltage
switch on the back of the new power supply to the correct voltage for your location.
8.
Slide the new power supply into place in the base unit. Mount the power supply using the screws
removed previously.
9.
Slide the power cable bundle through the opening; then connect the main power cable to the riser
card.
10. Connect the remaining power cables to the hard disk drives (or internal RAID subsystem and DC
distribution board), CD-ROM drive, and floppy disk drive.
11. Secure the clip around the power cable bundle.
12. Close the base unit.
13. Connect the AC power cord to the back of the base unit.
Power Distribution Board
NOTE
The power distribution board is used only in systems which feature the internal RAID section.
To replace the power distribution board:
1.
Open the base unit and remove the necessary parts as described in Chapter 1.
2.
Remove the power supply as described previously in steps 1 through 7 of "Power Supply ."
3.
Disconnect the fan power cable from the system board.
