NOTE:
Be sure to reconnect any cables that you disconnected when you removed the PCI cage.

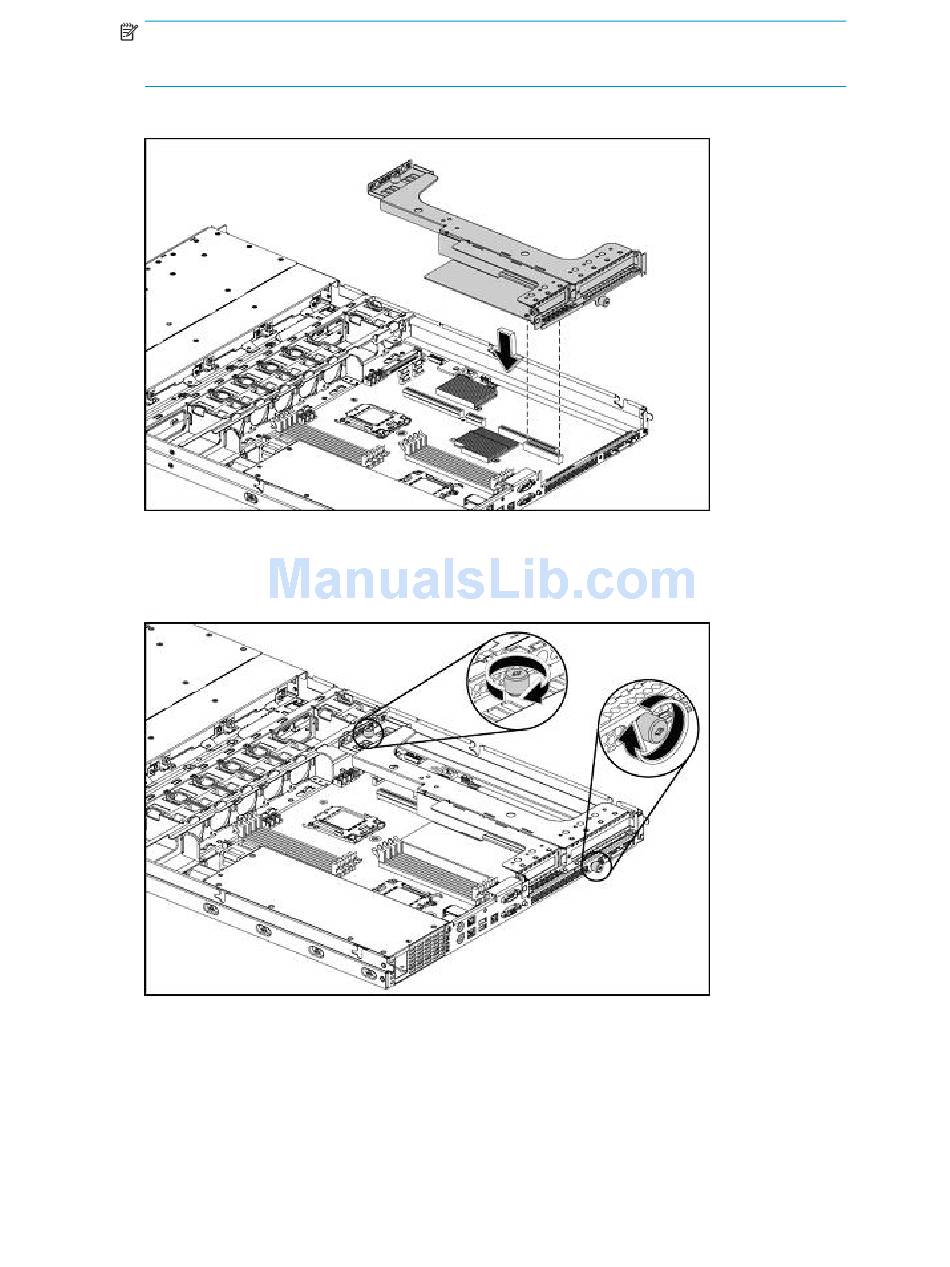

Figure 19 Reinstalling the PCI cage
2.
Tighten the two captive screws to secure the PCI cage to the chassis.
Figure 20 Securing the PCI cage
Replacing the top cover
1.
Align the top cover to the chassis and then slide it toward the front panel to position it into place.
D2D Backup System HP D2D2503
43
