Removing the PCI Cage
1.
Loosen the two captive screws that secure the PCI cage to the chassis with a T-15 screwdriver.
2.
Lift the PCI cage away from the chassis.

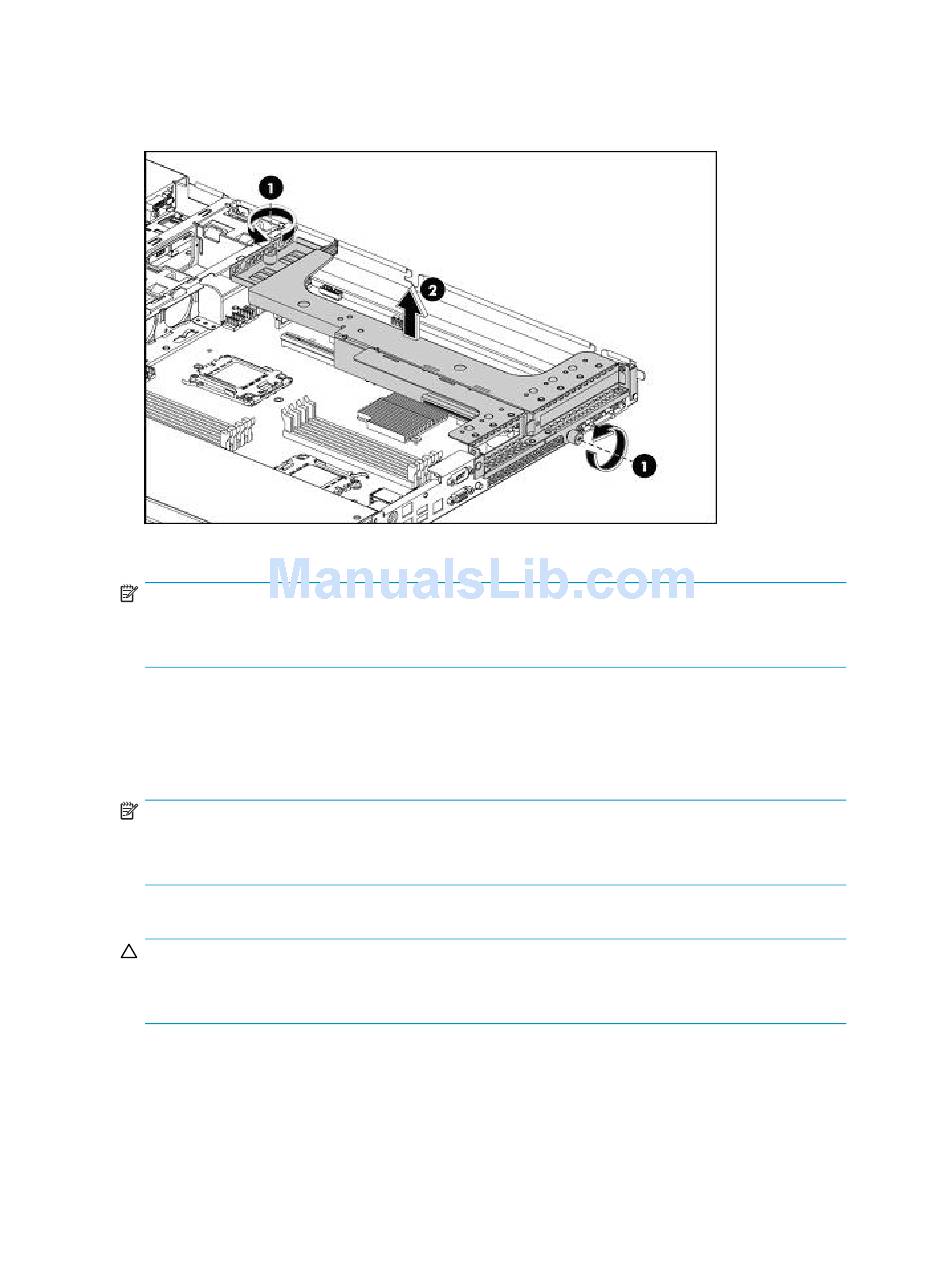

Figure 16 Removing the PCI cage
NOTE:
The pre-installed RAID card has a cable connecting it to the system board. It may be easier
to disconnect this cable while you are installing the new HBA.
Removing the slot cover
1.
Loosen the screw that secures the slot cover to the chassis. The HBA must be installed in the low
profile slot.
NOTE:
Before installing in the low profile slot ensure that the HBA is fitted with a low profile bracket
(supplied with the recommended HBA, if not already fitted).
2.
Remove the slot cover on the PCI cage.
CAUTION:
Do not discard the slot cover. If the expansion board is removed in the future, the slot cover
must be reinstalled to maintain proper cooling.
D2D Backup System HP D2D2503
41
