1. If you have already powered up the HP D2D Backup System, power it down and disconnect the
cables before you start; each step is expanded in separate sections after the summary below.
2.
Remove the top cover from the HP D2D Backup System.
3.
Install the HBA.
4.
Replace the top cover on the HP D2D Backup System.
5.
Connect an external or rackmount storage device.

Removing the top cover

1.
If you are installing the storage device as part of the initial installation, go to step 3. If you have
already powered on the HP D2D Backup System, it must be shut down before you start. Make sure
there are no backup or restore jobs in progress and that no future jobs are scheduled to start whilst
the system is shut down. Select Shutdown on the Web Management interface and click Power Off to
power down the HP D2D Backup System safely.
2. Disconnect the network cable(s) and the power cord(s) from the HP D2D Backup System.
3.
You need to remove the top cover before you can remove or replace a server component.
• Loosen the captive screw (1) on the rear panel with a T-15 screwdriver.
• Slide the cover (2) approximately 1.25 cm (0.5 in) toward the rear of the unit and then lift the
cover to detach it from the chassis.
• Lift the top cover away from the chassis. (3)

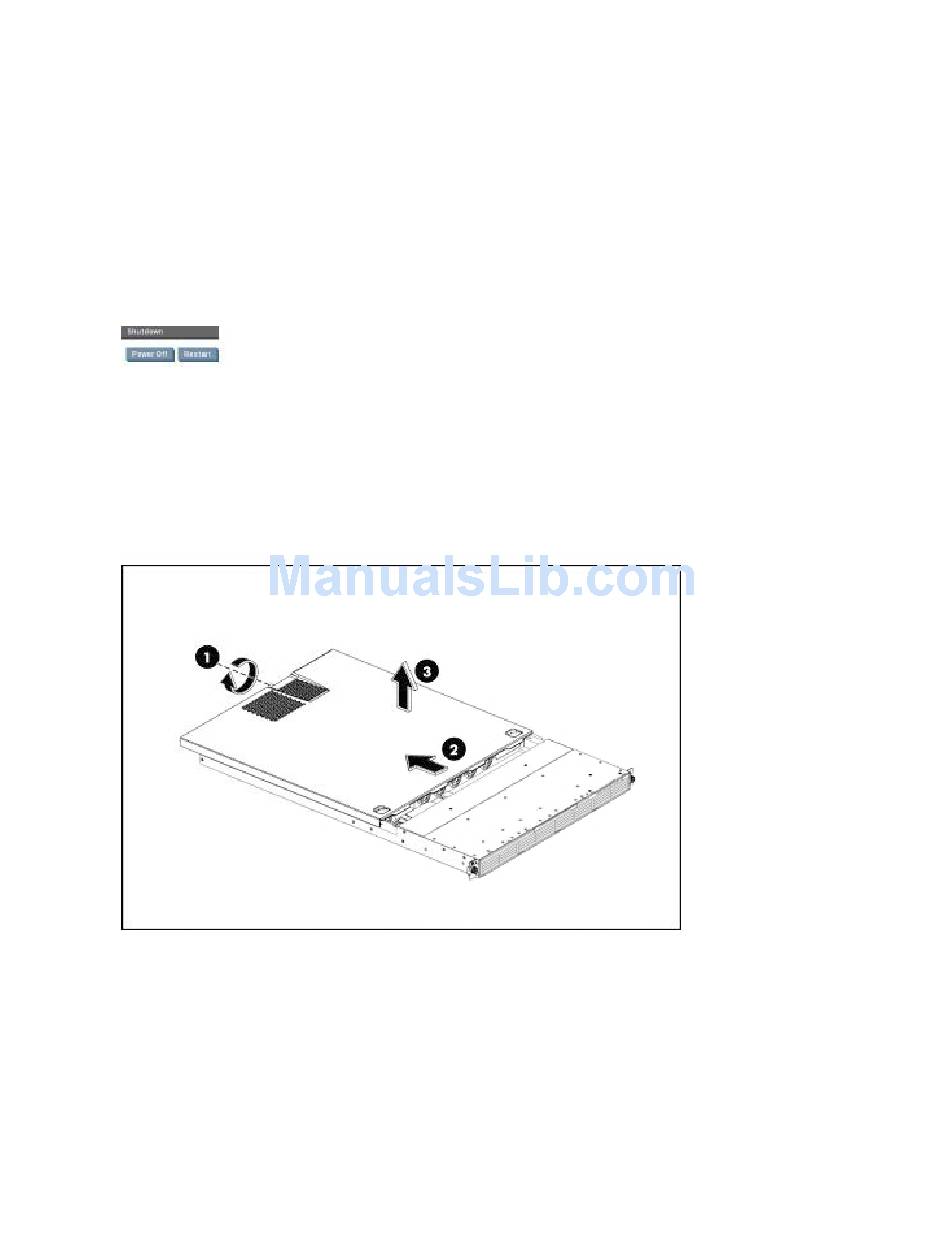

Figure 15 Removing the top cover

Installing the HBA

There are two PCI expansion slots on the system board. One supports a full length/full height PCIe card
and this already has a Smart Array RAID controller card installed. The other supports a low profile PCIe
slot. This is the slot into which you must install the HBA for Tape Attach. If the HBA that you purchase has
a full-height bracket, you must replace it with a half-height bracket (supplied with the recommended HBA).
40
Attaching a physical tape library or tape drive (optional)
