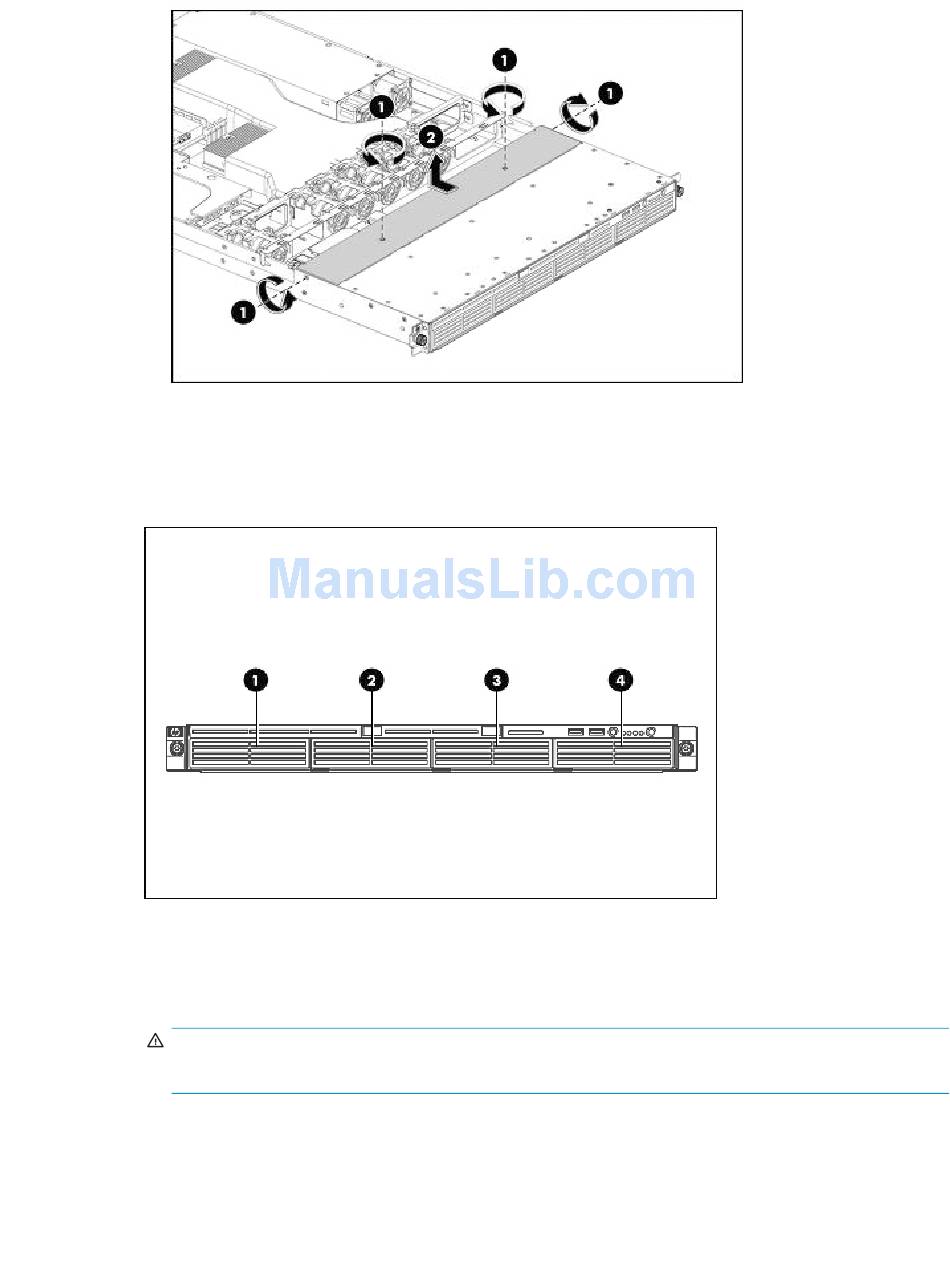

Figure 62 Removing the middle cover
6.
The drive bays are labeled from device 1 to device 4, from left to right, when viewed from the
front of the server.
Figure 63 Disk numbering
7.
Remove the hard drive assembly.
• Remove the power and data cables at the rear of the hard drive assembly.
WARNING!
Be careful not to dislodge other power connections and SATA connections while doing this.
• Loosen the screw (1) with the T-15 wrench provided.
• Pull the hard drive assembly (2) out of the drive bay.
D2D Backup System HP D2D2503
