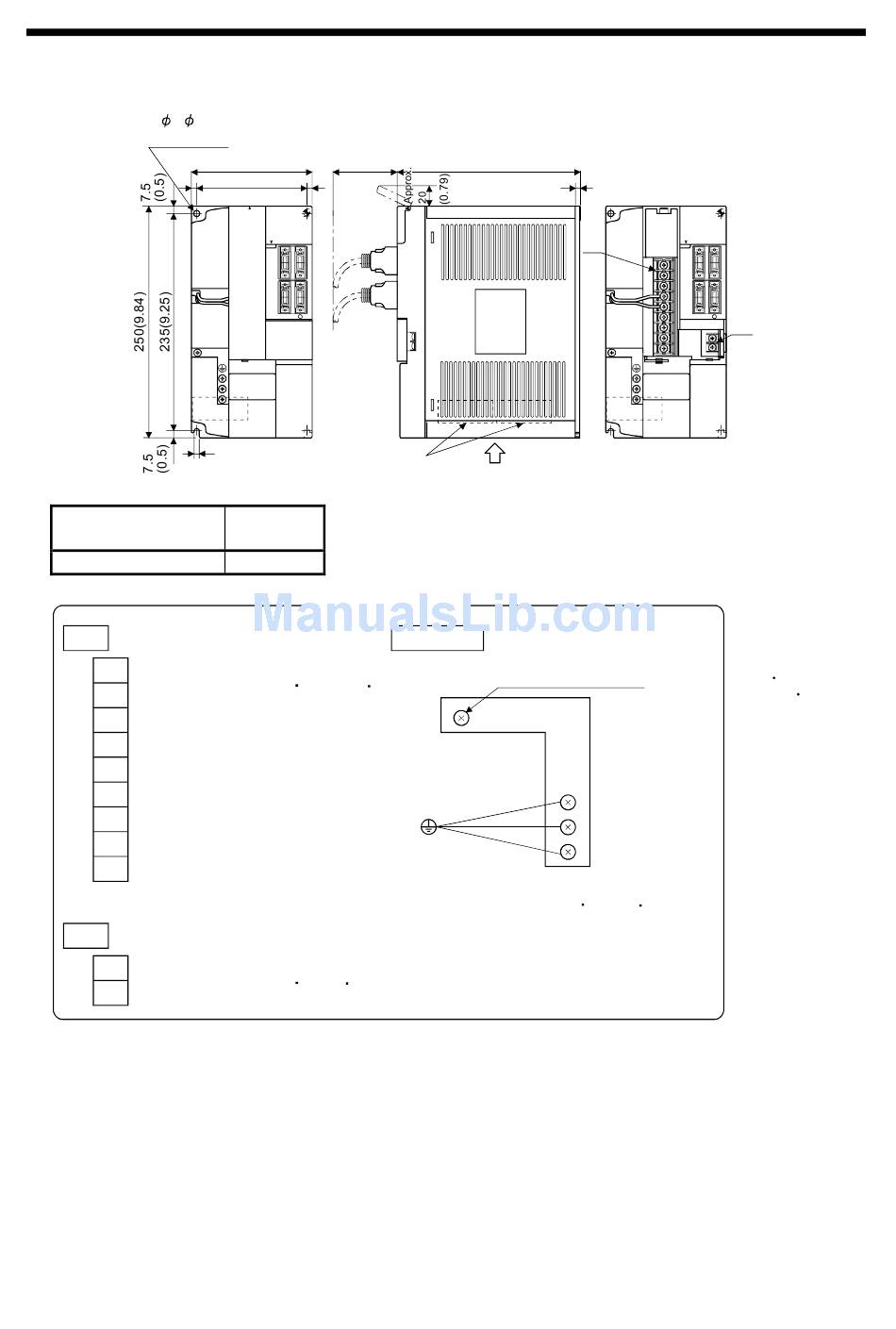

12. OUTLINE DIMENSION DRAWINGS
(4) MR-J2S-500CP
2- 6( 0.24)
mounting hole
(0.24)
6
Servo amplifier
MR-J2S-500CP
TE1
Terminal screw : M4
L
1
Tightening torque : 1.2 [N m](10.6 [lb in])
L
2
L
3
C
P
N
U
V
W
TE2
Terminal screw : M3.5
L
11
Tightening torque : 0.8 [N m](7[lb in])
L
21
130(5.12) (0.24)
Approx.70
6
(2.76)
118(4.65)
MITSUBISHI
OPEN
OPEN
C C
N N
1 1
A B
C C
N N
2 3
N.P.
6(0.24)
Cooling fan
Mass
[kg]([lb])
4.9(10.8)
Terminal signal layout
200(7.87)
(0.19) 5
Cooling fan wind direction
PE terminals
Built-in regenerative resistor lead
terminal fixing screw
Terminal screw : M4
Tightening torque : 1.2 [N m](10[lb in])
12 - 4
[Unit: mm]
([Unit: in])
Terminal layout
MITSUBISHI
OPEN
TE1
C C
N N
1 1
A B
C C
N N
2 3
TE2
N.P.
Mounting Screw
Screw Size:M5
Tightening torque:
3.24[N m]
(28.676 [lb in])
