Creating a VPN for
a Remote Office
Remote office
At the central site, follow these steps:
1 Configure the L2Tunnel service (see the Configuring L2Tunnel
Connections chapter in Using Enterprise OS Software) to enable the
PathBuilder switch as a tunnel terminator.
2 Configure the firewall device if present, or the PathBuilder switch, to
allow tunnel traffic through (see the Building Internet Firewalls chapter in
Using Enterprise OS Software).
3 Configure the RAS service to allow authentication of the user by a server,
such as a RADIUS server (see the Configuring Remote Access Services
chapter in Using Enterprise OS Software).
4 Enable PPP encryption to allow encryption keys to be used by MPPE (see
the Configuring Wide Area Networking Using PPP chapter in Using
Enterprise OS Software).
You can create a VPN to connect a remote office PathBuilder switch to
the central site through the ISP using tunneling protocols such as the
point-to-point tunneling protocol (PPTP). Figure 20 shows a typical
configuration. In this configuration, the tunnel is established between the
remote office and the central site. The ISP provides access to the shared
network but does not interact in the tunneling setup.

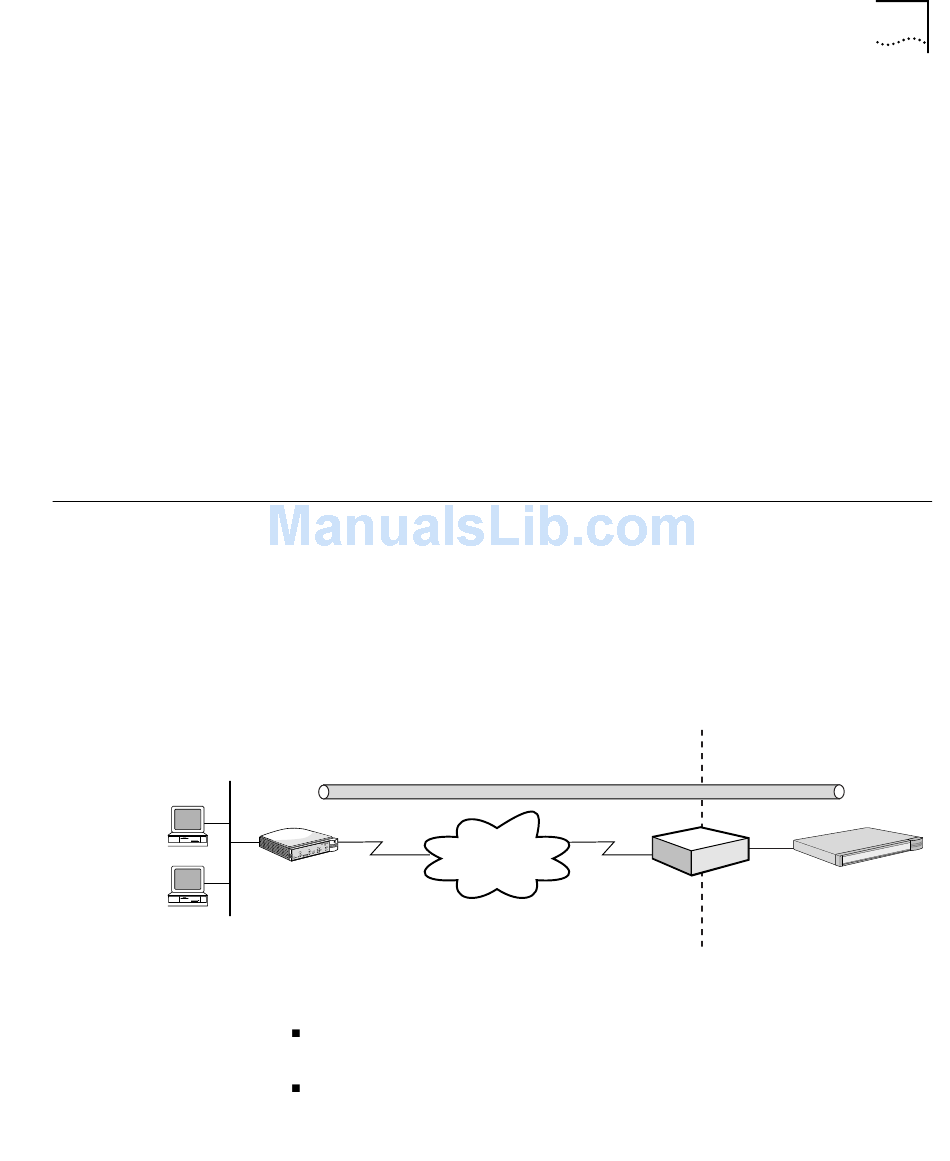

Figure 20 Remote Office Tunnel
!V1
!1
OfficeConnect
bridge/router
The connection process typically follows this order:
The remote office OfficeConnect NETBuilder bridge/router dials the
ISP.
The ISP assigns an IP address to the remote office bridge/router.
PPTP or L2TP tunnel
ISP
Firewall
or CSU/DSU
(optional)
71
Central site
PathBuilder switch
