Installing On A Tabletop; Stacking With Brackets - 3Com 3C8S5007 - SuperStack II PathBuilder S500 Switch User Manual

Installing on a If you plan to install your switch on a
Tabletop tabletop, attach the rubber feet as
shown.
Stacking with See Figure 10 to securely stack several switches on a tabletop.
Brackets
CAUTION: Do not restrict air flow around the sides and back of the
switch.

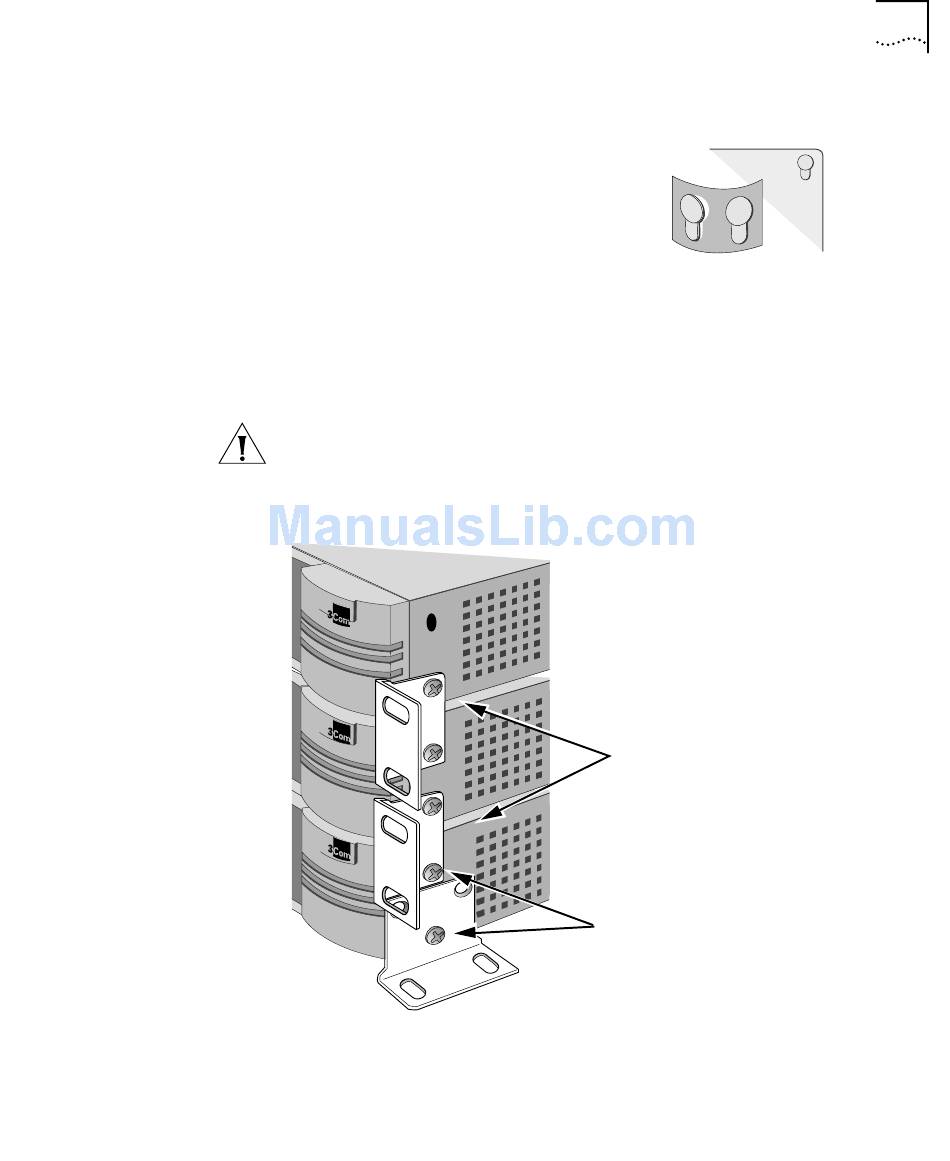

Figure 10 Stacking switches
Mounting the Switch
Attach feet to corners
Flex plastic sheet until
feet pop loose
Attach brackets as shown
to lock two units together
Place screws in holes as shown
Bottom bracket acts as a support
27
of chassis bottom
