Installing In A Rack - 3Com 3C8S5007 - SuperStack II PathBuilder S500 Switch User Manual

28 C 2: I
HAPTER NSTALLING THE

Installing in a Rack

H
ARDWARE
To install the switch in a rack, follow these steps:
CAUTION: Do not restrict air flow around the sides and back of the
switch.

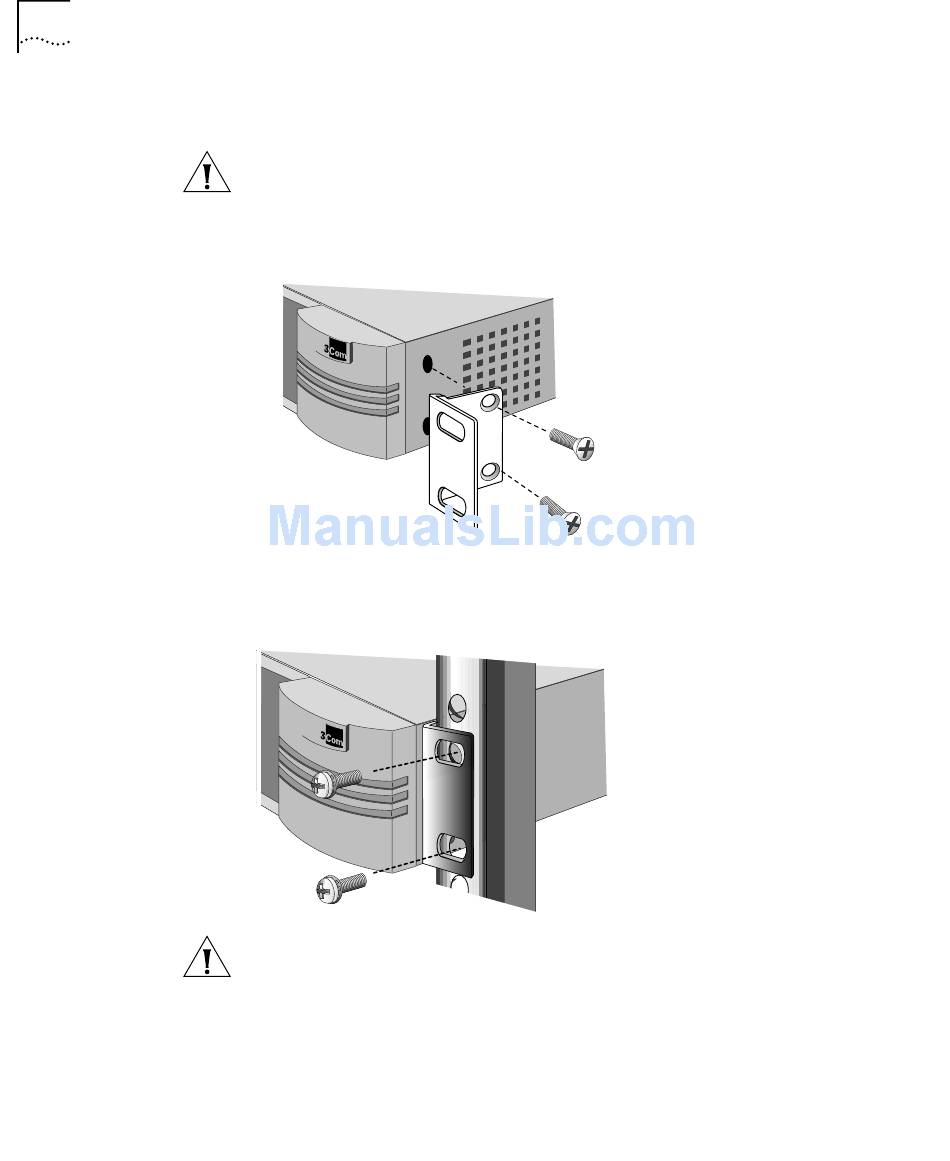

1 Secure the rack-mount brackets to each side of the chassis using two
flathead screws per bracket.
2 Hold the chassis between the poles of the rack and attach the brackets to
the rack using panhead screws (you must provide these screws). Tighten
each screw securely.
CAUTION: Using fewer than two screws to secure the brackets to the
rack may cause the switch to fall and sustain damage not covered by the
warranty.
